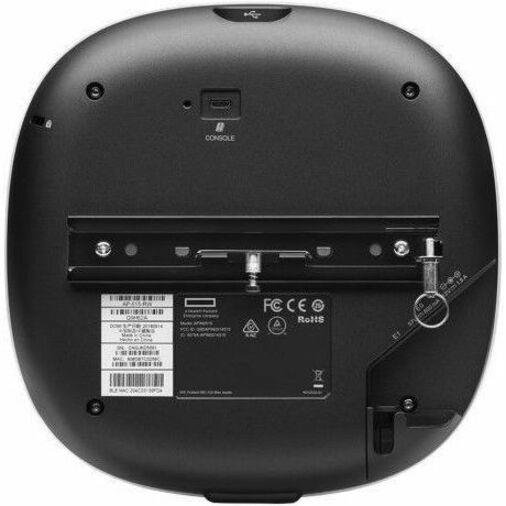

HPE S3J30A Aruba AP-515 Dual Band Wi-Fi 6 2.69 Gbit/s Wireless Access Point

General Information

• Manufacturer: Hewlett Packard Enterprise
• Brand Name: Aruba
• Manufacturer Part Number: S3J30A
• Product Series: 510
• Product Model: AP-515
• Product Name: AP-515 Wireless Access Point
• Product Type: Wireless Access Point

Marketing Information:

• The HPE Aruba Networking 510 Series Campus Access Points deliver WiFi 6 coverage ideal for office spaces, training and meeting facilities, and hospitals. With 2.69 Gbps maximum combined data rate, multi-gigabit Ethernet for fast wired connectivity, and built-in IoT radio, the 510 series delivers reliable, high-performance Wi-Fi Wi-Fi CERTIFIED™ for medium density campus environments.
• These APs can be deployed using Zero Touch Provisioning (ZTP) for ease of implementation at remote locations. It is Wi-Fi and supports 802.11ax features: OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected IoT devices, and WPA3 and Enhanced Open for greater password and guest security. The 510 series includes a limited lifetime warranty.
• Features |Wi-Fi 6 Performance Ideal for Campus Deployment
• The HPE Aruba Networking 510 Series Campus Access Points deliver a maximum combined data rate of 2.69 Gbps with up to 4 spatial streams (4SS) and 160 MHz channel bandwidth (VHT160).
• The AP supports Wi-Fi 6 features such as OFDMA, bidirectional MU-MIMO, and target wait time (TWT) to drive improved efficiency. It handles multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type.
• Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it receives one of the best radio signal.
• Fast wired connections with 2.5 Gbps Ethernet and 1 Gbps Ethernet ports.
• Cloud Management and Ready for IoT
• HPE Aruba Networking 510 Series Campus Access Points can be managed with HPE Aruba Networking Central, an AI-powered solution that simplifies IT operations, improves agility, and reduces costs by unifying management of campus, branch, remote, data center, and IoT networks from one dashboard
• The AP includes an integrated Bluetooth 5 and 802.15.4 radio (for Zigbee support) to simplify deploying and managing IoT-based location services, asset tracking services, security solutions and IoT sensors.
• The target wake time (TWT) improves battery life of IoT devices.
• HPE Aruba Networking Central client insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.
• Simple and Secure Access
• HPE Aruba Networking 510 Series Campus Access Points offer enhanced security with Dynamic Segmentation to remove the time-consuming and errorprone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.
• It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEF).
• WPA3 and Enhanced Open security increases enterprise-level security by providing stronger guest access protections without increasing complexity.
• For enhanced device assurance, the APs include an installed Trusted Platform Module (TPM) for protected storage of credentials and keys, and boot code.

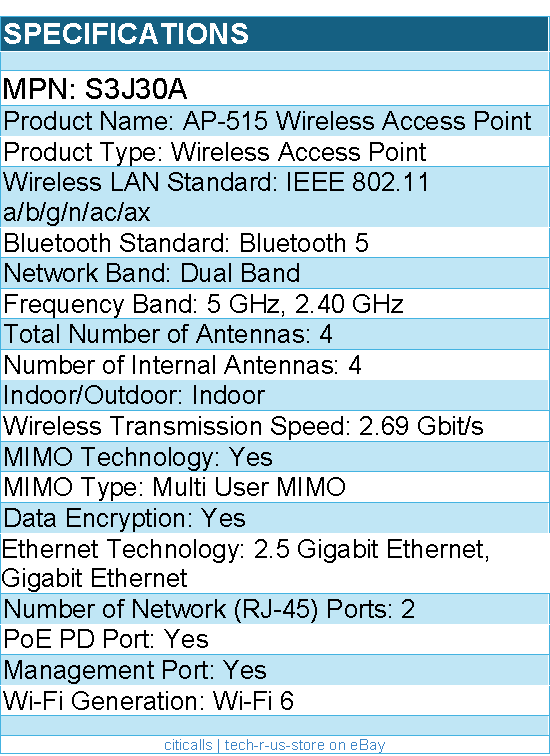

Technical Information

• Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
• Bluetooth Standard: Bluetooth 5
• Network Band: Dual Band
• Frequency Band:
  • 5 GHz
  • 2.40 GHz
• Total Number of Antennas: 4
• Number of Internal Antennas: 4
• Indoor/Outdoor: Indoor
• Wireless Transmission Speed: 2.69 Gbit/s
• MIMO Technology: Yes
• MIMO Type: Multi User MIMO
• Data Encryption: Yes
• Encryption Standard:
  • WPA
  • WPA2
  • WPA3
  • WPA3-SAE
  • WPA3-CNSA
• AI-powered: Yes

Interfaces/Ports

• Ethernet Technology:
  • 2.5 Gigabit Ethernet
  • Gigabit Ethernet
• Number of Network (RJ-45) Ports: 2
• PoE PD Port: Yes
• USB: Yes
• USB Standard: USB 2.0 Type A
• Management Port: Yes

Network & Communication

• Wi-Fi Generation: Wi-Fi 6

Power Description

• Power Consumption: 9.70 W

Physical Characteristics

• Antenna Form Factor: Internal
• Height: 1.8"
• Width: 7.9"
• Depth: 7.9"

Miscellaneous

Certifications & Standards:

• FCC/ISED
• UL2043 plenum rating
• CE Marked
• RED Directive 2014/53/EU
• EMC Directive 2014/30/EU
• Low Voltage Directive 2014/35/EU
• UL/IEC/EN 62368-1
• EN 60601-1-1
• EN60601-1-2

Railway Certs (AP-515 Only):

• EN 50155:2017-Railway Applications
• EN 50121-1:2017-Railway EMC
• EN 50121-3-2-Railway EMC
• EN 50121-4:2016-Railway Immunity
• IEC 61373 ed2:2008-Railway Shock and Vibr

Environmental Compliance:

• China Restriction of Hazardous Substances (China RoHS)
• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
