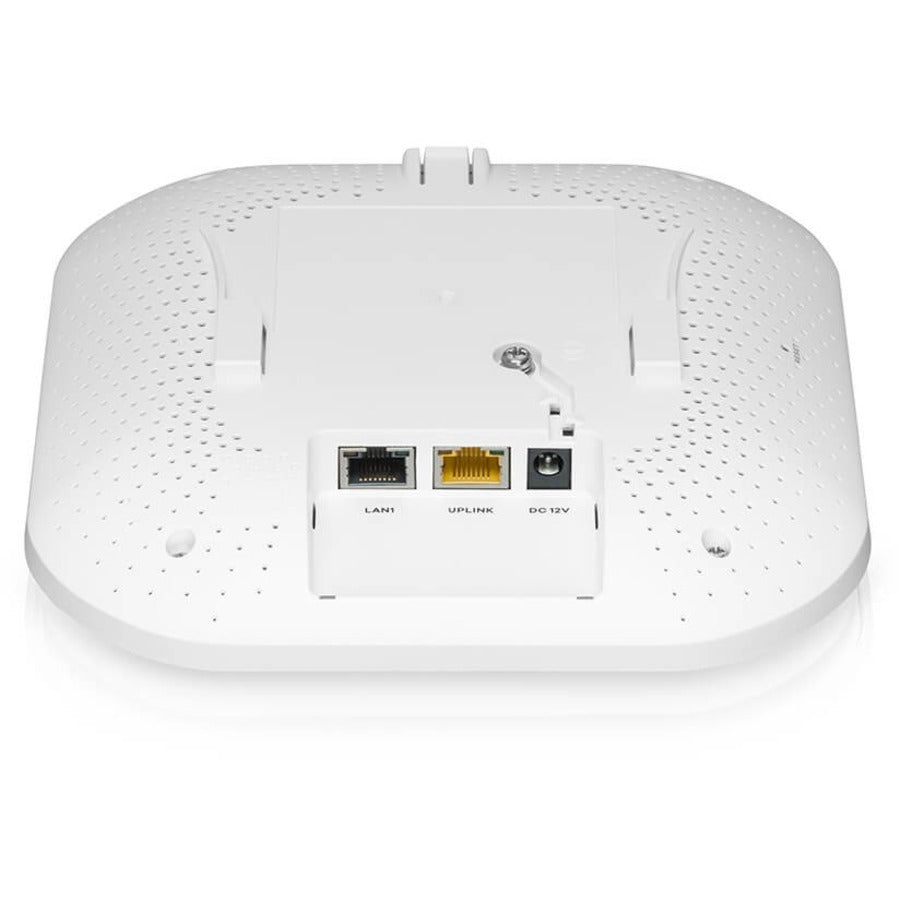

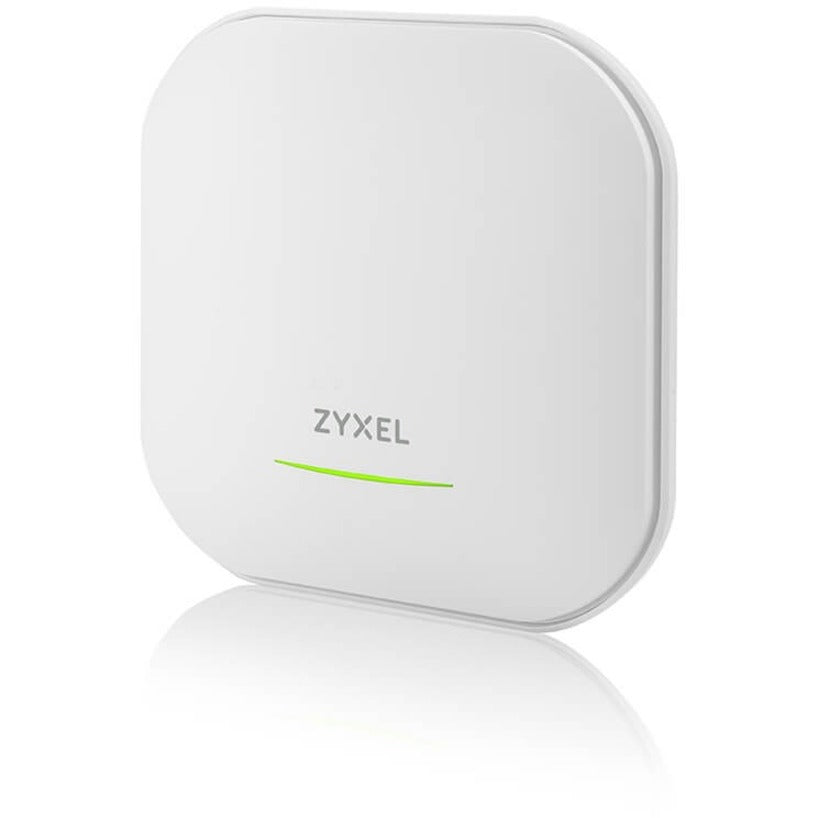

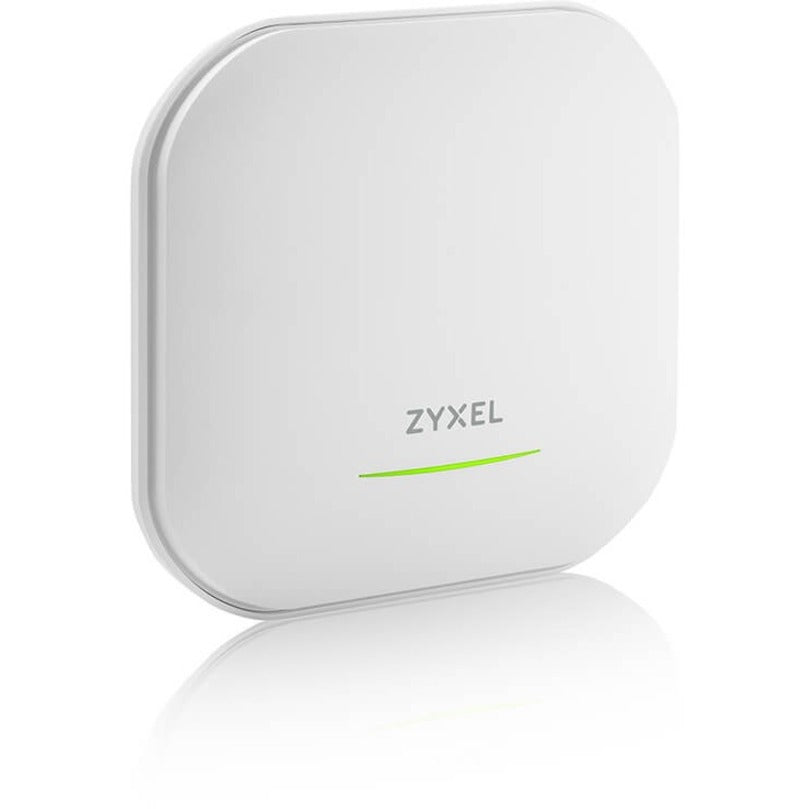

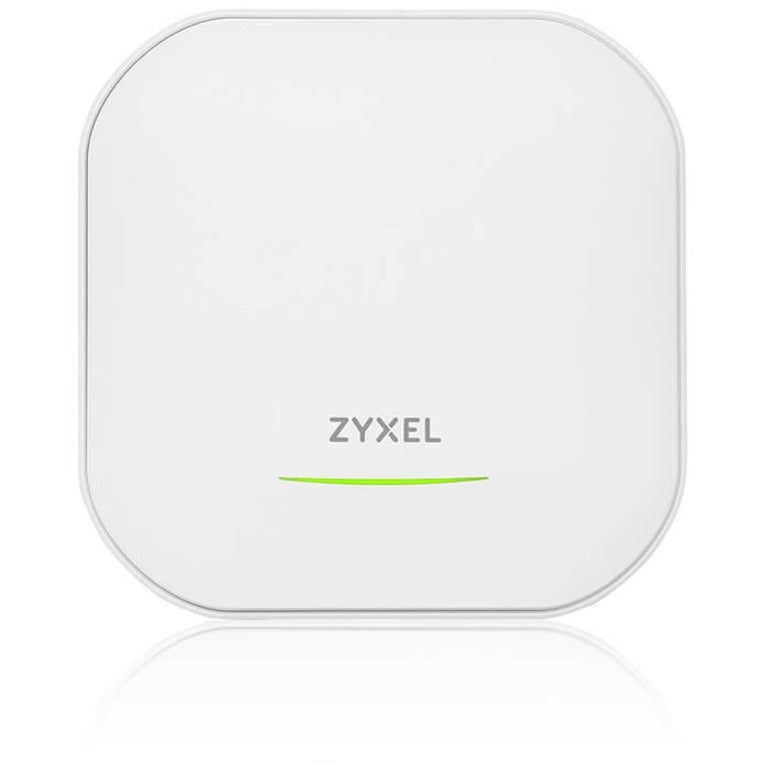

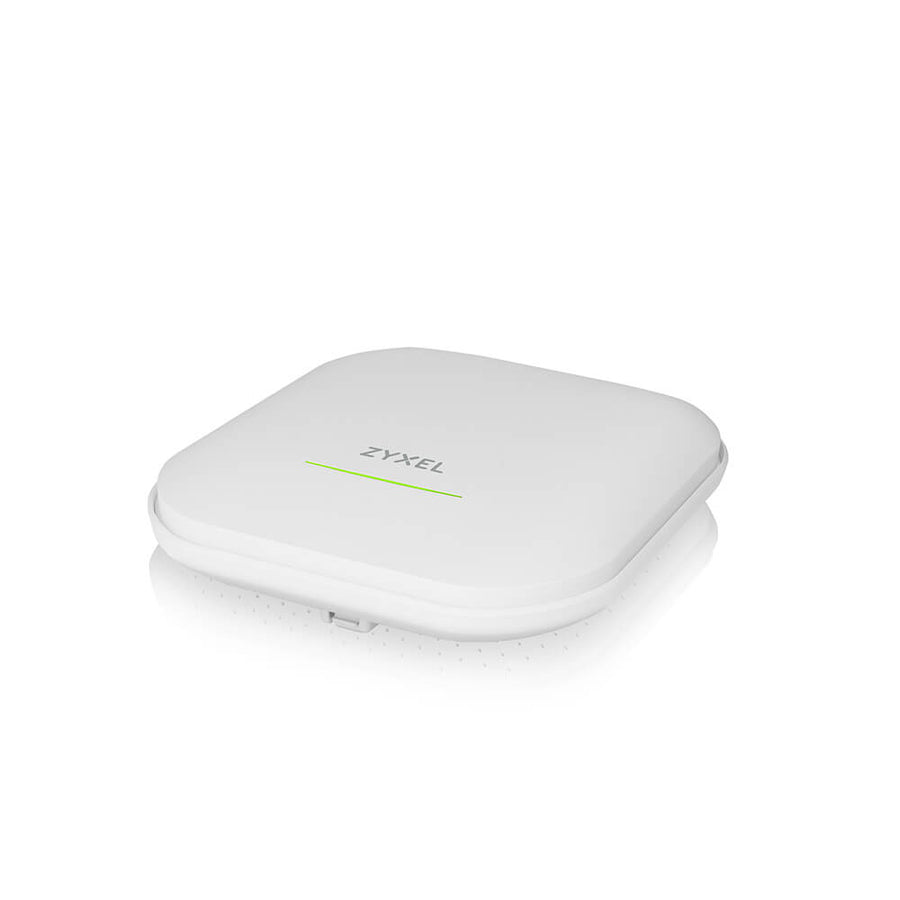

Zyxel NWA220AX-6E WiFi 6E AXE5400 2.5G Multi-Gigabit Wireless Access Point

• Manufacturer: ZYXEL Communications Corp.
• Brand Name: ZYXEL
• Manufacturer Part Number: NWA220AX-6E
• Product Model: NWA220AX-6E
• Product Name: AXE5400 WiFi 6E Dual-Radio Access Point
• Product Type: Wireless Access Point

• The Zyxel NWA220AX-6E features 6 spatial streams (4x4 in 6 GHz/5 GHz selectable, 2x2 in 2.4 GHz) with a maximum data rate of 5.4 Gbps. This dual-radio access point includes a BandFlex radio that can be configured to support either 5 GHz or 6 GHz, making it a cost-effective option for expanding your existing 5 GHz coverage while also future-proofing your network with 6 GHz support.
• The NWA220AX-6E brings the benefits of WiFi 6 capabilities, including OFDMA, MU-MIMO, and BSS Coloring, into the newly available, interference-free 6 GHz band. This new band more than doubles WiFi capacity, offering multi-gigabit speeds and low-latency connections.
• The interference-free 6 GHz band addresses the growing demand for bandwidth in today's networks, making it ideal for high-density WiFi environments and emerging technology connectivity. To fully unlock the potential of this new band, Zyxel's 6E Boost uses high-gain 4x4 streams in the 6 GHz band to improve transmit beamforming and receive MIMO, extending its range and ensuring optimal performance.
• The NWA220AX-6E is perfect for high-density environments such as transport hubs, exhibition halls, schools, offices, hotels, restaurants, or any organization that needs to support a large number of devices. It provides optimal, premium WiFi service for users, ensuring top performance every time they connect.

• Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
• Network Band: Tri Band
• Frequency Band:
  • 2.40 GHz
  • 5 GHz
  • 6 GHz
• Wireless Transmission Speed: 5.40 Gbit/s
• MIMO Technology: Yes
• MIMO Type: Multi User MIMO
• Beamforming Technology: Yes
• Data Encryption: Yes
• Encryption Standard:
  • WEP
  • WPA
  • WPA2
  • WPA3

• Ethernet Technology:
• 2.5 Gigabit Ethernet
• Gigabit Ethernet
• Number of Network (RJ-45) Ports: 2
• PoE PD Port: Yes

• Wi-Fi Generation: Wi-Fi 6E
• Communication Protocols:
  • SNMP
  • RADIUS
• Wireless Performance: AXE5400

• Form Factor:
• Plate Mountable
• T-bar Mount
• Antenna Form Factor: Internal
• Height: 1.7"
• Width: 7.1"
• Depth: 7.1"

• Package Contents:
  • AXE5400 WiFi 6E Dual-Radio Access Point
  • Mount Plate
  • Mounting Screws
• Certifications & Standards:
  • FCC Part 15C
  • FCC Part 15E
  • ETSI EN 300 328
  • EN 301 893
  • EN 303 687
  • LP0002
  • FCC Part 15B
  • EN 301 489-1
  • EN 301 489-17
  • EN55022
  • EN55024
  • EN60601-1-2
  • BSMI CNS13438
  • EN 62368
  • BSMI CNS14336-1
• Country of Origin: China
