Asus EBA63 ExpertWIFI Dual Band AX3000 Gigabit Router VPN WiFi6 2.4/5GHz AirMesh

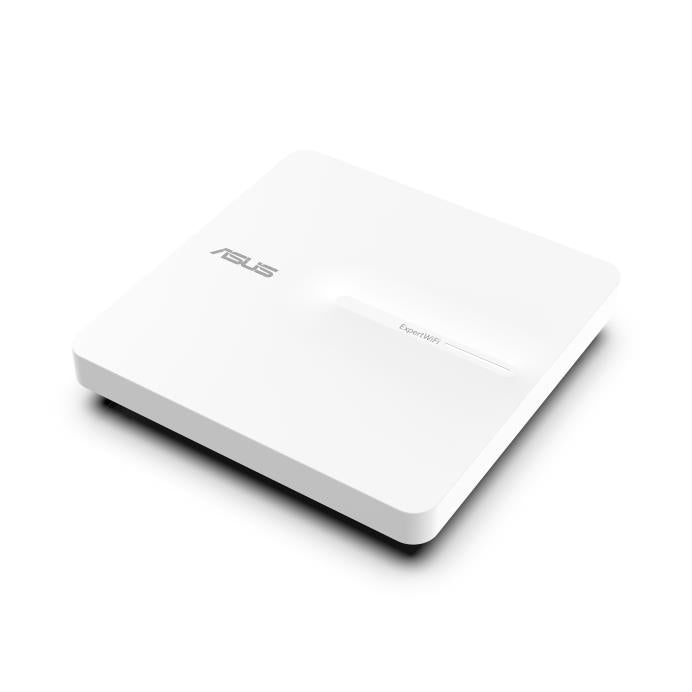

ASUS ExpertWiFi EBA63

Network Standard

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• IPv4
• IPv6

Product Segment: AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps

Data Rate

• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• WiFi 4 (802.11n) : up to 300 Mbps
• WiFi 5 (802.11ac) : up to 1734 Mbps
• WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
• WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps

Antenna: Internal antenna x 4

Transmit / Receive

• 2.4GHz 2x2
• 5GHz 2x2

Processor: 1.7 GHz quad-core processor

Memory

• 256 MB Flash
• 512 MB RAM

Boosts Speed

• OFDMA (Orthogonal Frequency Division Multiple Access)
• Beamforming: standard-based and universal
• 1024-QAM high data rate
• 20/40/80/160 MHz bandwidth (The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.)

Operating Frequency

• 2.4 GHz
• 5 GHz

Operating Mode

• AiMesh Node Mode
• Access Point Mode

I/O Ports: 10/100/1000 Gigabit Ethernet Port (support PoE) x 1

Buttons: Reset Button

LED Indicator: Power x 2

Power Supply

• 802.3af PoE
• 12 V with max. 1.5 A current DC (power adapter included)

Power Consumption

• US: 10.0W
• EU: 9.1W

Mounting

• Wall Mount
• Ceiling Mount

Package Content

• ExpertWiFi EBA63
• RJ-45 cable
• Power adapter
• Warranty card
• Quick start guide
• Wall-mount kit

Product Weight (g): 426g

Product Dimentions: 160x160x42

AiMesh: AiMesh Node

Device Access Control

• Time Scheduling
• Reward
• Customized Internet Schedule
  • Maximum Device Access Control Profile :12
  • Maximum Device Access Control Content Filter Rule :12

Self-Defined Network Type

• Employee, Scheduled Network, Guest Network, Maximum Self-Defined Network Rule :16
• VLAN
• WiFi Scheduling: One Time Access
• WiFi Scheduling: Weekly Schedule
• WiFi share: QR code, PDF file
• AP isolate

Security

• WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
• WPS
• SSH

Traffic Control

• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor

Wireless

• UTF-8 SSID
• WiFi MAC Address Filter (Maximum MAC Filters: 64)
• Wireless Scheduler

User Interface

• WEB: ASUSWRT
• APP: ASUS ExpertWiFi APP

Administration

• Configuration Backup and Restore
• Diagnosis Tools
• Feedback System
• System Log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Auto Firmware Update
