Altronix AL175ULX Access Control Power Supply / Charger, 2 PTC Class 2 Outputs,

SKU: SS24a AL175ULX
Regular price $292.01 USD Sale price $292.01 USD Regular price $292.01 USD
Shipping calculated at checkout.
In stock: 1
20 Years and Counting...

Serving the Business Community for 20 years. Established since May-2003.

Global Shipping

From California to the World.

Order Today. Ship Today.

Orders received by 10 am are shipped on the same business day. Mondays through Saturday.

Questions?

Chat, Text, SMS, Email or Call. We have the answers.

📃

MORE PRODUCT INFORMATION

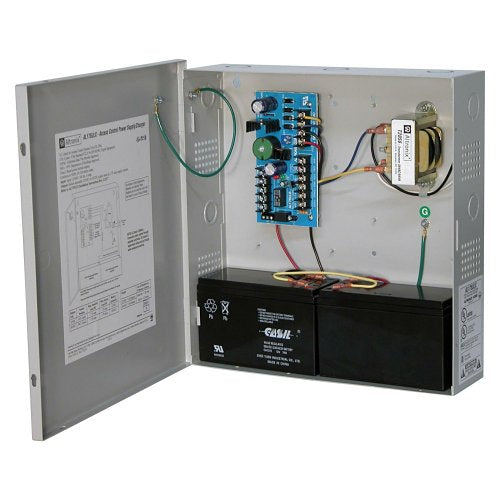

Altronix AL175ULX Switching Power Supply/Charger converts a 115VAC 60Hz input into two (2) individually PTC protected auto-resettable 12VDC or 24VDC outputs

  • Voltage 115VAC, 60Hz, 0.6A.
  • Trigger Access control trigger input.
  • Two (2) Class 2 Rated power-limited outputs: Fail-Safe/Fail-Secure lock output (switched), Auxiliary power output (unswitched).
  • Voltage 12VDC or 24VDC selectable.
  • Current 1.75A continuous max.
  • Other Short circuit and thermal overload protection.
  • Type Sealed lead acid or gel type.
  • Failover Upon AC loss, instantaneous.
  • Supervised Latching or non-latching.
  • AC Failure Form “C” contacts

Brand Name Altronix
Manufacturer Altronix Corporation
Manufacturer Part Number AL175ULX
NDAA Compliant Yes
Product Model AL175ULX
Product Name AL175ULX Proprietary Power Supply
Product Type Proprietary Power Supply
Weight (Approximate) (g) 4036.972

Technical Information
Output Voltage
12V DC at 1.75A|24V DC at 1.75A

Battery Information
Output Voltage (V DC)
24

Category Specific Attributes
Output Voltage (V)
24

Physical Characteristics
Depth
3.3"
Depth (mm)
82.55
Form Factor
Enclosure, Wall Mount
Height
13.5"
Height (mm)
342.9
Weight (Approximate)
8.90 lb
Width
13"
Width (mm)
330.2
Power Description
Input Voltage
120V AC
Input Voltage (V AC)
120
Number of +12V Rails
2
Output Current
1.75 A
Output Current (A)
1.75

Warranty
Limited Warranty
Lifetime

Miscellaneous
Compatibility
Access Control System
Signal Equipment
Fire Alarm Control Panel
Environmental Certification
ROHS
Environmentally Friendly
Yes
