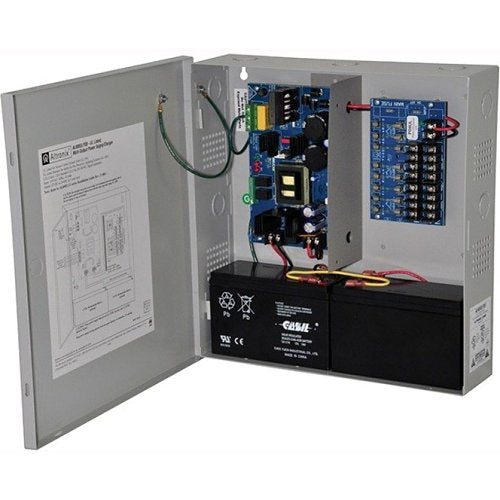

Altronix AL600ULPD8 Power Supply / Charger, 8 Fused Outputs 12/24VDC at 6A BC300

SKU: SS24a AL600ULPD8
Regular price $476.01 USD Sale price $476.01 USD Regular price $476.01 USD
Shipping calculated at checkout.
In stock: 1
20 Years and Counting...

Serving the Business Community for 20 years. Established since May-2003.

Global Shipping

From California to the World.

Order Today. Ship Today.

Orders received by 10 am are shipped on the same business day. Mondays through Saturday.

Questions?

Chat, Text, SMS, Email or Call. We have the answers.

📃

MORE PRODUCT INFORMATION

Altronix AL600ULX series power supply/chargers convert a 115VAC, 60Hz input into a single fused, four (4), eight (8) or sixteen (16) fuse or PTC protected outputs. Outputs are selectable for 12VDC or 24VDC with a total of 6A max.

  • 8 Output Power Supply/Charger.
  • 12VDC or 24VDC @ 6A, fused non-power limited outputs.
  • AC and battery monitoring.
  • UL and cUL listed.

Brand Name Altronix
Manufacturer Altronix Corporation
Manufacturer Part Number AL600ULPD8
NDAA Compliant Yes
Packaged Quantity 1
Product Model AL600ULPD8
Product Name AL600ULPD8 Proprietary Power Supply
Product Type Proprietary Power Supply
Weight (Approximate) (g) 3538.02

Technical Information
Output Voltage
12V DC at 6A|24V DC at 6A

Battery Information
Output Voltage (V DC)
24

Category Specific Attributes
Output Voltage (V)
24

Physical Characteristics
Depth
3.3"
Depth (mm)
82.55
Form Factor
Enclosure, Wall Mount
Height
13.5"
Height (mm)
342.9
Weight (Approximate)
7.80 lb
Width
13"
Width (mm)
330.2
Power Description
Input Voltage
120V AC
Input Voltage (V AC)
120
Number of +12V Rails
8
Output Current
6 A
Output Current (A)
6

Warranty
Limited Warranty
Lifetime

Miscellaneous
Compatibility
Access Control Systems
Fire Protective Signaling Systems
Environmental Certification
ROHS
Environmentally Friendly
Yes
