Vendor: Altronix

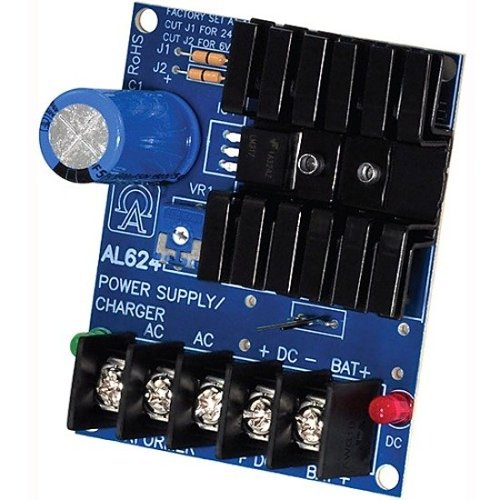

Altronix AL624 Linear Power Supply / Charger, Single Class 2 Output, 6/12/24VDC

SKU: SS24a AL624
Regular price $33.93 USD Sale price $33.93 USD Regular price $33.93 USD
Shipping calculated at checkout.
In stock: 2
20 Years and Counting...

Serving the Business Community for 20 years. Established since May-2003.

Global Shipping

From California to the World.

Order Today. Ship Today.

Orders received by 10 am are shipped on the same business day. Mondays through Saturday.

Questions?

Chat, Text, SMS, Email or Call. We have the answers.

📃

MORE PRODUCT INFORMATION

Altronix AL624 power supply/charger converts a low voltage AC input into 6VDC, 12VDC or 24VDC output. This general purpose power supply has a wide range of applications for access control, security, and CCTV system accessories that require additional power.

  • 16VAC to 24VAC, 20VA to 40VA
  • Output: 6VDC or 12VDC 1.2A supply current or 24VDC 0.75A supply current
  • Filtered and electronically regulated output
  • Short circuit and thermal overload protection
  • Built-in charger for sealed lead acid or gel type batteries
  • Automatic switch over to stand-by battery when AC fails
  • PTC battery protection
  • AC input and DC output LED indicators

Brand Name Altronix
Manufacturer Altronix Corporation
Manufacturer Part Number AL624
NDAA Compliant yes
Packaged Quantity 1
Product Model AL624
Product Name AL624 Proprietary Power Supply
Product Type Proprietary Power Supply
Weight (Approximate) (g) 90.718

Technical Information
Output Voltage
12V DC at 1.2A|24V DC at 750 mA|6V DC at 1.2A

Battery Information
Output Voltage (V DC)
12, 24, 6

Category Specific Attributes
Output Voltage (V)
12, 24, 6

Physical Characteristics
Depth
3.5"
Depth (mm)
88.9
Form Factor
Wall Mount
Height
8.5"
Height (mm)
215.9
Weight (Approximate)
3.20 oz
Width
7.5"
Width (mm)
190.5
Power Description
Input Voltage
16V AC|24V AC
Input Voltage (V AC)
16, 24
Number of +12V Rails
1
Output Current
1.20 A|750 mA
Output Current (A)
0.75, 1.2

Warranty
Limited Warranty
Lifetime

Miscellaneous
Compatibility
Access Control Devices
Security Devices
CCTV Systems
Environmental Certification
RoHS
Environmentally Friendly
Yes
Package Contents
AL624 Proprietary Power Supply
Battery Leads
