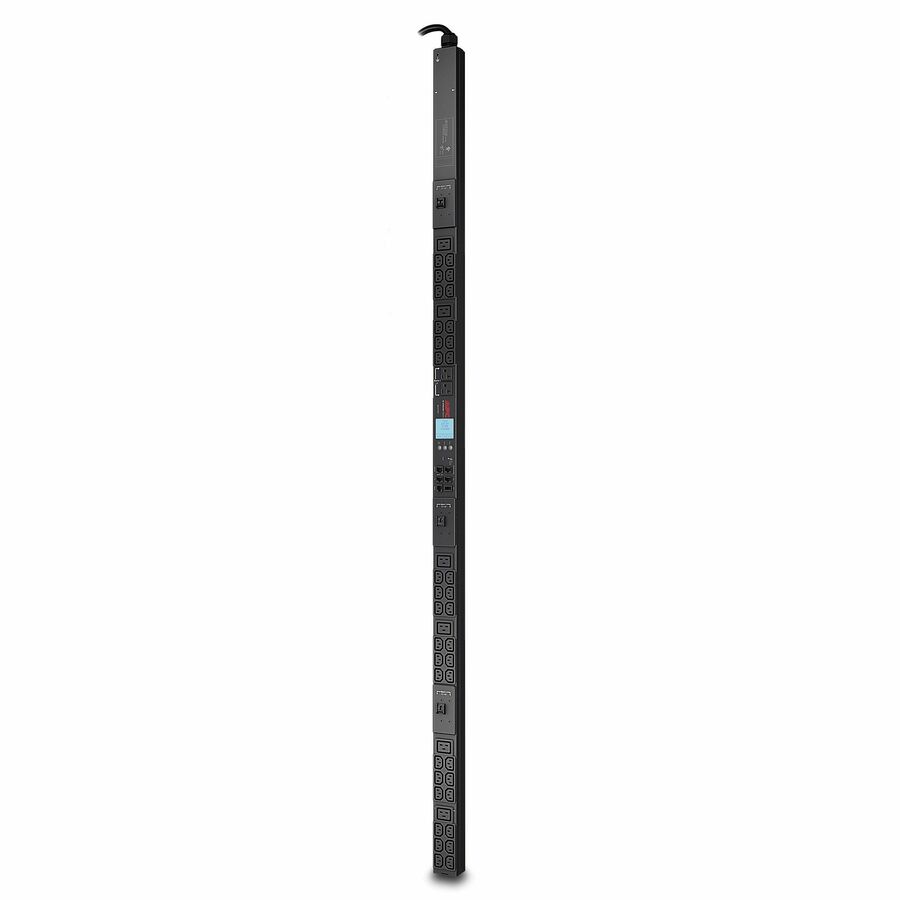

APC AP8865 NetShelter Rack PDU, Metered, 0U, 8.6kW 208V 3-phase 30A

General Information

• Manufacturer: Schneider Electric SA
• Brand Name: APC by Schneider Electric
• Manufacturer Part Number: AP8865
• Product Line: Metered Rack
• Product Model: AP8865
• Product Name: Metered Rack AP8865 44-Outlets PDU

• Marketing Information: The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The AP8865 offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment The 0U PDU includes a NEMA L21-30P input plug with 1 83m (6ft) cord, (2) NEMA 5-20R, (36) IEC 60320 C13 and (6) IEC 60320 C19 output receptacles The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxureTM IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH) The rack PDU comes with a standard two-year warranty

Product Type: PDU

Technical Information

• PDU Type: Metered

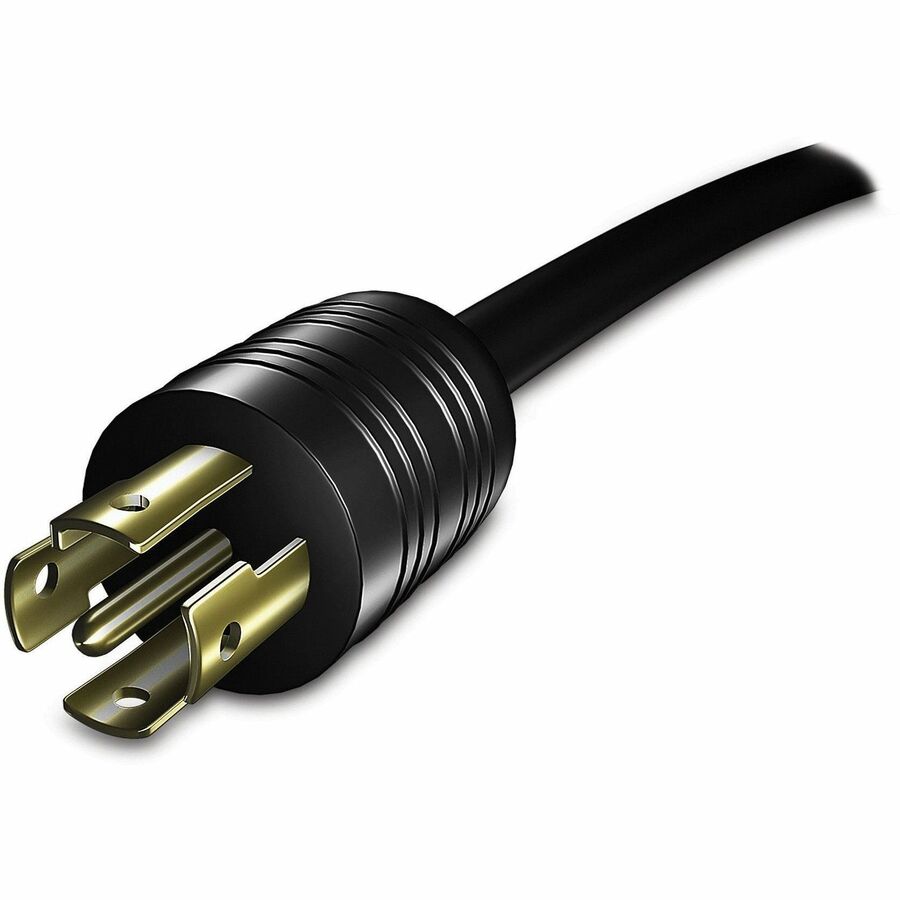

• Plug/Connector Type: NEMA L21-30P
• Protection Type: Overload Protection

Power Description

• Input Voltage:
• 208 V
• Output Voltage:
• 120 V AC
• 208 V AC

Management

• Management:
• Protocolos:
• SNMP
• Telnet

Physical Characteristics

• Mounting Orientation: Vertical
• Mounting Preference: No Preference
• Mount Type: Rack-mountable
• Placement: Side
• Rack Height: 0U
• Cord Length: 6 ft
• Height: 70.5"
• Width: 2.2"
• Depth: 1.8"
• Weight (Approximate): 16.67 lb

Miscellaneous

For Country/Region: United States

• Package Contents:
  • Metered Rack AP8865 44-Outlets PDU
  • Installation guide
  • Rack mounting brackets
  • Safety guide
  • Serial configuration cable
• Optimized Energy Efficiency: Yes

Product Take Back Program: Yes

REACH free of SVHC: Yes

Mercury Free: Yes

Lead Free: Yes

Warranty

• Limited Warranty: 2 Year from APC
