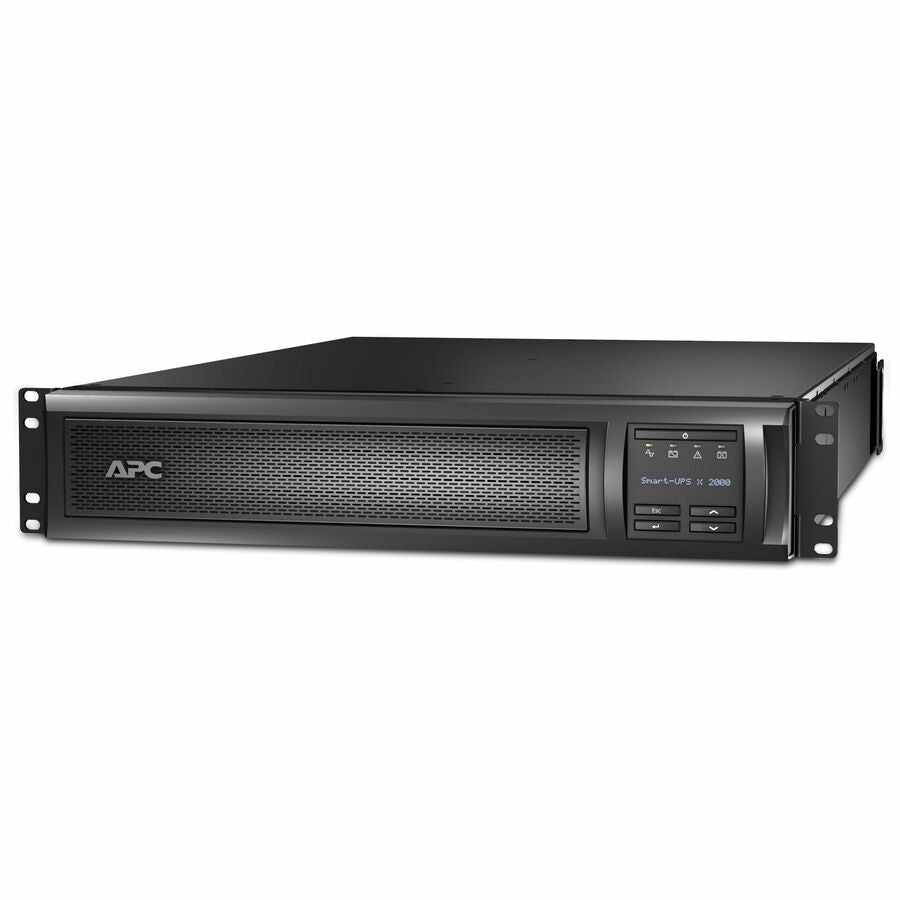

APC SMX2000RMLV2U Smart-UPS X, Line Interactive, 2000VA, Rack/tower

General Information

• Manufacturer: Schneider Electric SA
• Brand Name: APC by Schneider Electric
• Manufacturer Part Number: SMX2000RMLV2U
• Product Line: Smart-UPS
• Product Series: X
• Product Model: SMX2000RMLV2U
• Product Name: Smart-UPS X SMX2000RMLV2U 1920 VA Rack-mountable UPS

Marketing Information:

• This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1920VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-20P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-20R outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

Product Type: Line-interactive UPS

Technical Information

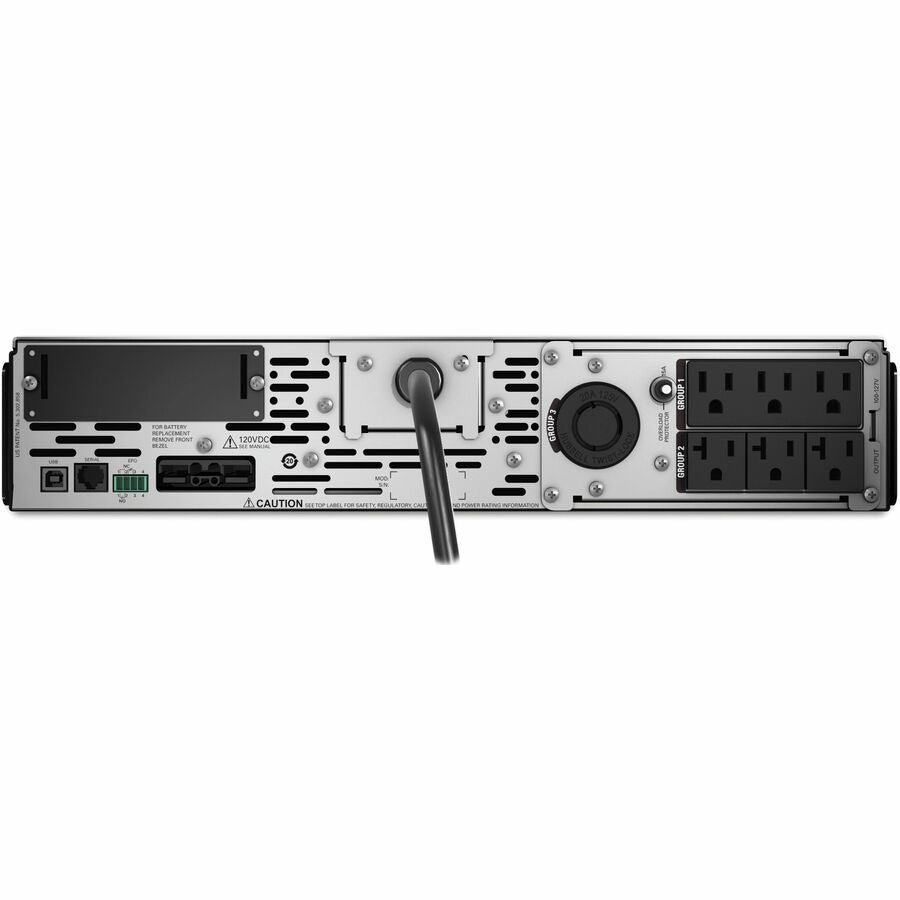

• Plug/Connector Type: NEMA 5-20P
• Receptacle Type: NEMA 5-20P
• Receptacle Detail:
• 1 x NEMA L5-20R
• 3 x NEMA 5-15R
• 3 x NEMA 5-20R
• Number of Battery & Surge Outlets: 7
• Emergency Power OFF: Yes
• Cord Length: 8 ft
• Transfer Time: 4 ms

Power Description

• Load Capacity (VA): 1920 VA
• Load Capacity (Watt): 1800 W
• Input Voltage: 120 V
• Output Voltage: 120 V AC
• Waveform Type: Sine Wave
• Surge Energy Rating: 540 J

Interfaces/Ports

• Serial Port: Yes
• USB: Yes
• Total Number of Expansion Slots: 1

Battery Information

• Battery Characteristics: Maintenance-free, Sealed, Spill-proof
• Battery Chemistry: Lead Acid
• Backup/Run Time (Full Load): 11 Minute
• Backup/Run Time (Half Load): 28 Minute
• Typical Battery Recharge Time: 3 Hour
• Hot Swappable: Yes

Physical Characteristics

• Color Family: Black
• Product Color: Black
• Height: 3.3"
• Width: 17"
• Depth: 26.3"
• Rack Height: 2U
• Form Factor: Rack-mountable
• Mounting Preference: Lower
• Mounting Location: Front

Miscellaneous

• Package Contents:
  • Smart-UPS X SMX2000RMLV2U 1920 VA Rack-mountable UPS
  • CD with software
  • Documentation CD
  • Installation guide
  • Rack mounting brackets
  • Rack mounting hardware
  • Rack mounting support rails
  • Removable support feet
  • Smart UPS signalling RS-232 cable
  • USB cable

Certifications & Standards: BSMI|CSA|NOM|TÜV|VCCI Class A
