ASRock WRX80D8-2T Motherboard AMD WRX80 Socket SP3 LGA4094 Maximum 128GB DDR4

Marketing Information

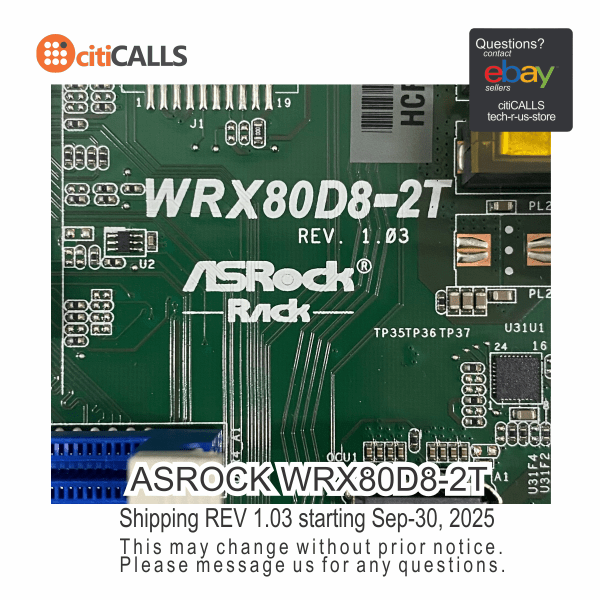

WRX80D8-2T

ATX (12" x 9.6")

Supports AMD Ryzen Threadripper PRO 5000WX/3000WX

8 DIMM slots (1DPC), supports ECC/non-ECC UDIMM, RDIMM, LRDIMM, RDIMM-3DS

7 PCIe4.0 x16

2 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s)

Supports 2 M.2 (PCIe4.0 x4)

12 SATA 6Gb/s

2 RJ45 (10GbE) by Intel X710-AT2

Remote Management (IPMI)

Detail Specifications

Physical Status

Form Factor

ATX

Processor System

CPU

Supports AMD Ryzen Threadripper PRO 5000WX/3000WX

Socket

Single Socket sWRX8 (LGA4094)

Chipset

AMD WRX80

System Memory

Supported DIMM Quantity

8 DIMM slots (1DPC)

Supported Type

Supports DDR4 288-pin ECC/non-ECC UDIMM, RDIMM, LRDIMM, RDIMM-3DS

Max. Capacity per DIMM

ECC/non-ECC UDIMM, RDIMM, LRDIMM: up to 128GB

RDIMM-3DS: up to 256GB

RDIMM-3DS Max. memory capacity is to be validated

Max. DIMM Frequency

ECC/non-ECC UDIMM, RDIMM, LRDIMM, RDIMM-3DS: max. 3200MHz

RDIMM-3DS Max. memory frequency is to be validated

Voltage

1.2V

PCIe Expansion Slots (SLOT7 close to CPU)

PCIe x 16

SLOT7: PCIe4.0 x16 CPU

SLOT6: PCIe4.0 x16 CPU

SLOT5: PCIe4.0 x16 CPU

SLOT4: PCIe4.0 x16 CPU

SLOT3: PCIe4.0 x16 CPU

SLOT2: PCIe4.0 x16 CPU

SLOT1: PCIe4.0 x16 CPU

Other PCIe Expansion Connectors

M.2 slot

2 M-key (PCIe4.0 x4), supports 22110/2280/2260/2242/2230 form factor FCH

OCuLink

2 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s) FCH

SATA/SAS Storage

PCH Built-in Storage

AMD WRX80 (12 SATA 6Gb/s):

2 OCuLink, 4 SATA 7-pin

Ethernet

Additional GbE Controller

Intel X710-AT2: 2 RJ45 (10GbE)

Server Management

BMC Controller

ASPEED AST2500

IPMI Dedicated GLAN

1 x Realtek RTL8211E for dedicated management GLAN

Graphics

Controller

ASPEED AST2500

VRAM

DDR4 512MB

Rear I/O

UID Button/LED

1

VGA Port

1 DB15

Serial Port

1 DB9

USB 3.2 Gen1 Port

2 Type-A (USB3.2 Gen1)

RJ45

2 RJ45 (10GbE)

1 dedicated IPMI

Internal Connector/Headers

Power Connector

1 (24-pin, ATX main power), 2 (8-pin, ATX 12V)

Auxiliary Panel Header

1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus

System Panel

1 (9-pin): RSTBTN, PWRBTN, HDDLED, PWRLED

Speaker Header

1 (4-pin)

Fan Header

7 (6-pin)

Thermal Sensor Header

2

TPM Header

1 (13-pin, SPI), 1 (17-pin, LPC)

HSBP

1

SMBus header

1

PMBus header

1

IPMB Header

1

Clear CMOS

1 (contact pads)

USB 3.2 (Gen1) Header

1 (19-pin, 2 USB3.2 Gen1)

USB 3.2 (Gen2) Header

1 (Type-C, 1 USB3.2 Gen2)

NMI Header

1

LED Indicators

Standby PWR LED 5vsb

1

80 Debug Port LED

1

Fan Fail LED

7

BMC heartbeat LED

1

System BIOS

BIOS Type

AMI 256 Mb SPI Flash ROM

BIOS Features

Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0, ASRock Rack Instant Flash

Hardware Monitor

Temperature

CPU, DRAM, MB, Card Side, Chipset Temperature Sensing

Fan

CPU/Rear/Front Fan Tachometer

CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)

CPU/Rear/Front Fan Multi-Speed Control

Voltage

3VSB, 5VSB, VCPU, VSOC, VCCM, APU VDDP, 1.05V_PROM_S5, 2.5V_PROM, 1.05V_PROM_RUN, BAT, 3V, 5V, 12V

Environment

Temperature

Operation temperature: 10oC - 35oC / Non operation temperature: -40oC - 70oC

Humidity

Non operation humidity: 20% - 90% ( Non condensing)
