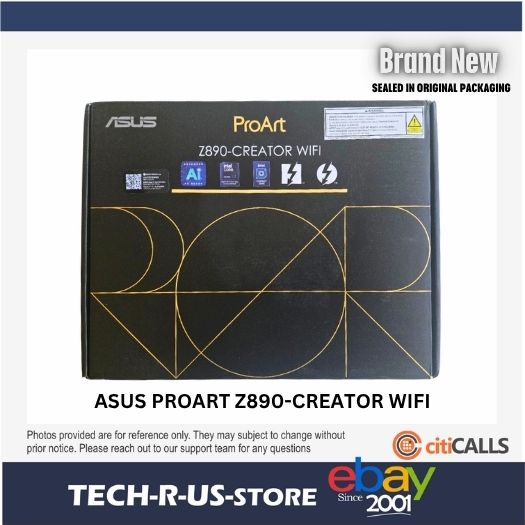

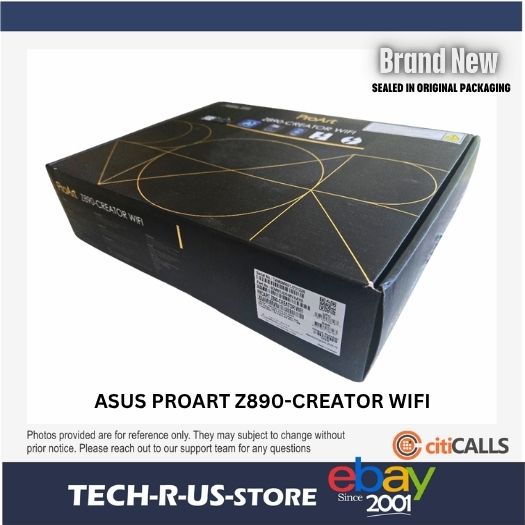

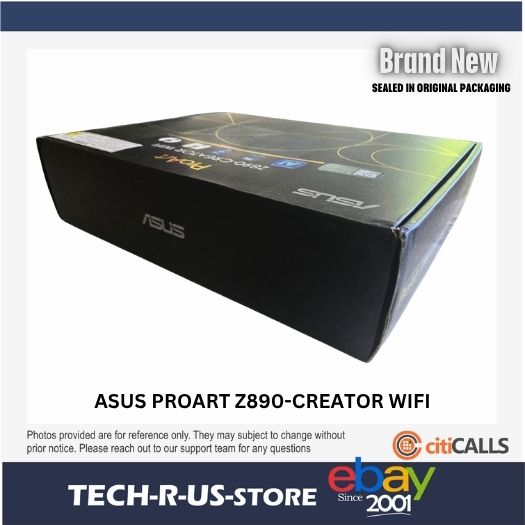

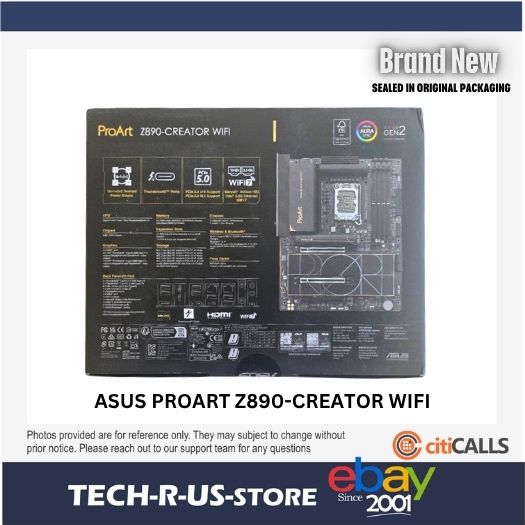

Asus PROART Z890-CREATOR WIFI Intel S2 4xDDR5 HDI- TBolt M2 SATA 2.5G-ETH ATX MB
$499.00 USD $499.00 USD
Shipping calculated at checkout.
In stock: 2
Description

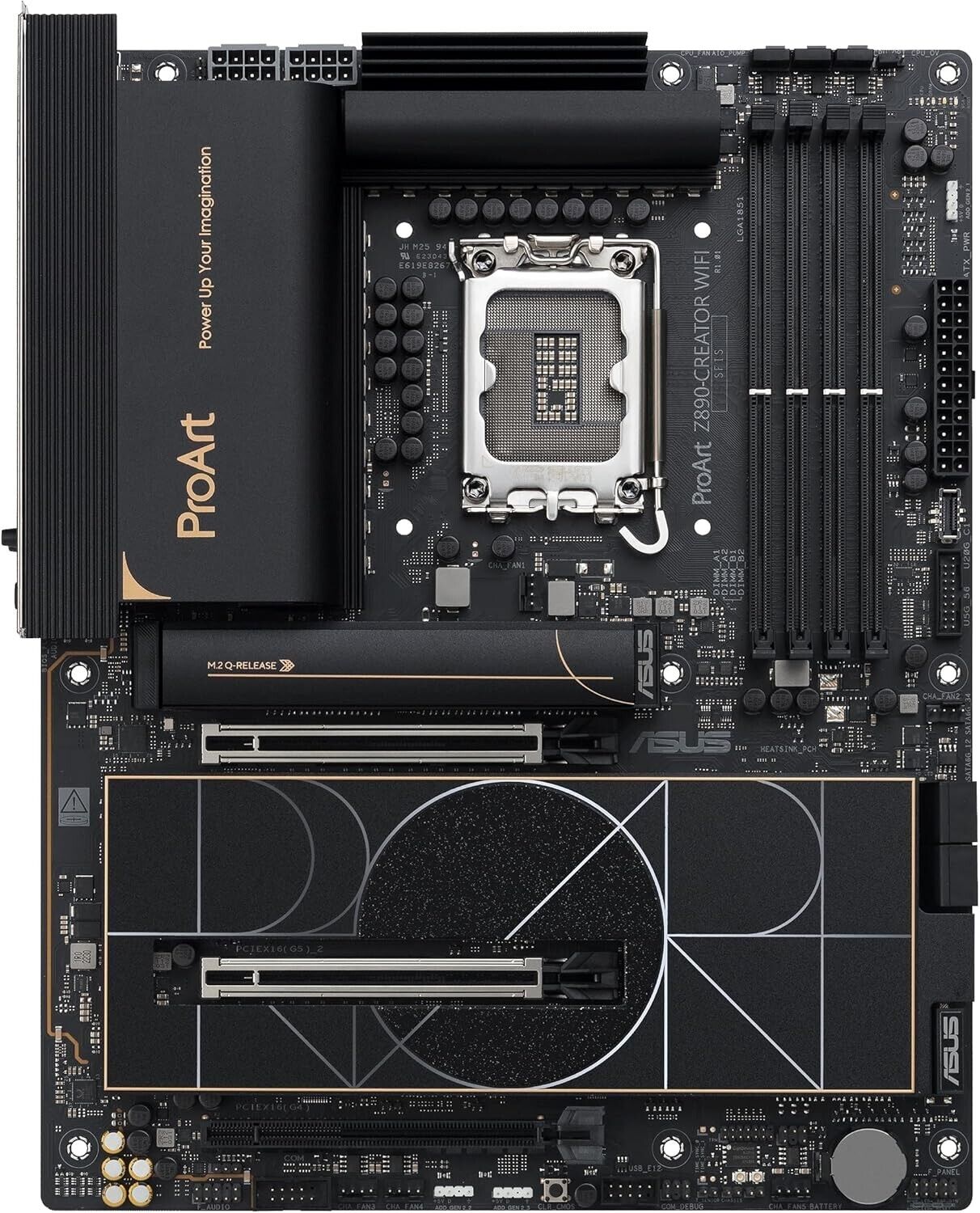

ProArt Z890-CREATOR WIFI

CPU

  • Support Intel® Core™ Ultra Processors (Series 2), LGA1851
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

  • Intel® Z890 Chipset

Memory

  • 4 x DIMM slots, max. 256GB, DDR5
  • Support up to 9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM)*
  • Dual channel memory architecture
  • Supports Intel® Extreme Memory Profile (XMP) memory module
  • ASUS Enhanced Memory Profile III (AEMP III)
  • Support DIMM Fit
  • Support DIMM Flex

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration

** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

  • 1 x HDMI™ port**
  • 2 x Intel® Thunderbolt™ 5 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***
  • 1 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs****

* Graphics specifications may vary between CPU types.

** Supports 4K@60Hz as specified in HDMI 2.1

*** Supports up to 2 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors with DP in.

*** Supports up to 1 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors without DP in.

*** For resolution support please check DisplayPort 2.1 specs. ThunderboltTM 5 bandwidth is limited by DisplayPort™ 2.1 with up to 77.4 Gbit/s. We recommend chain-connecting the monitors using verified Thunderbolt™ cables.

**** In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20.

***** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

Expansion Slots

  • Intel® Core™ Ultra Processors (Series 2) *
  • 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)
  • Intel® Z890 Chipset

*1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage. Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*

  • Intel® Core™ Ultra Processors (Series 2) *
    • M.2_1 slot (Key M), type 2242/2260/2280/22110  (supports PCIe 5.0 x4 mode)
    • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • Intel® Z890 Chipset
    • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    • M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
    • M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)**
    • 4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

** M.2_5 slot shares bandwidth with PCIe 4.0 x16 slot. When M.2_5 slot is operating, PCIe 4.0 x16 slot will be disabled.

Ethernet

  • 1 x Marvell® AQtion 10Gb Ethernet
  • 1 x Intel® 2.5Gb Ethernet
  • ASUS LANGuard

Wireless & Bluetooth

  • Wi-Fi 7*
  • 2x2 Wi-Fi 7 (802.11be)
  • Supports 2.4/5/6GHz frequency band**
  • Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
  • Bluetooth® v5.4***

*Wi-Fi features may vary depending on the operating system

 For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.

 For Windows 10, only Wi-Fi 6 is supported.

** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

  • Rear USB (Total 10 ports)
    • 2 x Thunderbolt™ 5 ports (2 x USB Type-C®)
    • 1 x Thunderbolt™ 4 port (1 x USB Type-C®)
    • 6 x USB 10Gbps ports (6 x Type-A )
    • 1 x USB 2.0 port (1 x Type-A )
  • Front USB (Total 5 ports)
    • 1 x USB 20Gbps (supports USB Type-C®)
    • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    • 1 x USB 2.0 header supports 2 additional USB 2.0 ports
    • USB Type-C® power delivery output: max. 5V/3A

Audio

  • Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
    • - Impedance sense for front and rear headphone outputs
    • - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
    • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    • - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
    • - Supports up to 32-Bit/192 kHz playback*Audio Features
    • - Gold-plated audio jacks
    • - Premium audio capacitors
    • - Dedicated audio PCB layers

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

  • 2 x Thunderbolt™ 5 USB Type-C® ports
  • 1 x Thunderbolt™ 4 USB Type-C® port
  • 6 x USB 10Gbps ports (6 x Type-A)
  • 1 x USB 2.0 port (1 x Type-A)
  • 1 x DisplayPort (Input only)
  • 1 x HDMI™ port
  • 1 x Wi-Fi module1 x Marvell® AQtion 10Gb Ethernet port
  • 1 x Intel® 2.5Gb Ethernet port
  • 2 x Gold-plated audio jacks
  • 1 x BIOS FlashBack™ button

Internal I/O Connectors

  • Fan and Cooling Related
    • 1 x 4-pin CPU Fan header
    • 1 x 4-pin CPU OPT Fan header
    • 1 x 4-pin AIO Pump header
    • 5 x 4-pin Chassis Fan headers
  • Power Related
    • 1 x 24-pin Main Power connector
    • 2 x 8-pin +12V CPU Power connector
  • Storage Related
    • 5 x M.2 slots (Key M)
    • 4 x SATA 6Gb/s ports
  • USB
    • 1 x USB 20Gbps connector (supports USB Type-C® )
    • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    • 1 x USB 2.0 header supports 2 additional USB 2.0 ports
  • Miscellaneous
    • 3 x Addressable Gen2 headers
    • 1 x Clear CMOS button
    • 1 x COM Port header
    • 1 x CPU Over voltage jumper
    • 1 x Chassis Intrusion header
    • 1 x Front Panel Audio header (F_AUDIO)
    • 1 x SPI TPM header (14-1 pin)
    • 1 x 10-1 pin Front System Panel header
    • 1 x Thermal Sensor header

Special Features

  • ASUS 5X PROTECTION III /
    • - DIGI+ VRM (- Digital power design with DrMOS)
    • - ESD Guards
    • - LANGuard
    • - Overvoltage protection
    • - SafeSlot
    • - Stainless-steel back I/O
  • ASUS Q-Design
    • - M.2 Q-Latch
    • - M.2 Q-Release
    • - M.2 Q-Slide
    • - Q-Release Slim (with PCIe SafeSlot)
    • - Q-Antenna
    • - Q-Connector
    • - Q-Dashboard
    • - Q-DIMM
    • - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • ASUS Thermal Solution
    • - M.2 heatsink backplate
    • - M.2 heatsink
    • - VRM heatsink design
  • ASUS EZ DIY
    • - BIOS FlashBack™ button
    • - BIOS FlashBack™ LED
    • - Box headers
    • - Clear CMOS button
    • - CPU Socket lever protector
    • - ProCool II
    • - Pre-mounted I/O shield
    • - SafeDIMM
  • Aura Sync
    • - Addressable Gen2 headers
  • Bespoke Motherboard Design & Business Focused Features
    • - 24/7 reliability- Overcurrent protection

Software Features

  • ASUS Exclusive Software
  • Armoury Crate
    • - Aura Creator
    • - Aura Sync
    • - Fan Xpert 4
    • - Power Saving
  • ASUS Driver Hub
  • ASUS GlideX
  • ASUS CPU-Z
  • CreatonFirst
  • ProArt Creator Hub
  • TurboV Core
  • Thunderbolt™ Share
  • USB Wattage Watcher
  • Adobe Creative Cloud (Free Trial)
  • Norton 360 Deluxe (60 Days Free Trial)
  • WinRAR (40 Days Free Trial)
  • UEFI BIOS
  • AI Overclocking Guide
  • ASUS EZ DIY
    • - ASUS CrashFree BIOS 3
    • - ASUS EZ Flash
    • - ASUS UEFI BIOS EZ Mode
    • - ASUS MyHotkey
  • NPU Boost

Remote Management Features

  • IT Management software supported
    • - ASUS Control Center Express(ACCE)

BIOS

  • 256 Mb Flash ROM, UEFI AMI BIOS

Manageability

  • WOL by PME, PXE

Accessories

  • Cables
    • 2 x SATA 6Gb/s cables
  • Miscellaneous
    • 1 x ASUS WiFi Q-Antenna
    • 1 x Q-connector
    • 2 x M.2 Q-Latch packages
    • 2 x M.2 rubber packages
    • 1 x ProArt accessory bag
  • Documentation
    • 1 x ACC Express activation key card
    • 1 x Quick start guide

Operating System

  • Windows 11  (22H2 & later)

Form Factor

  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Shipping Notes:

All our products are normally shipped within 1-2 business days from any of our warehouse locations below:

  • Monrovia, CA 91016 (Most usual)
  • Fremont, CA 94538
  • Richardson, TX 75018
  • Duluth, GA 30096
  • Itasca, IL 60143
  • Edison, NJ 08837

International orders may take an additional 2 to 3 days.

California Prop 65 Warning. This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
