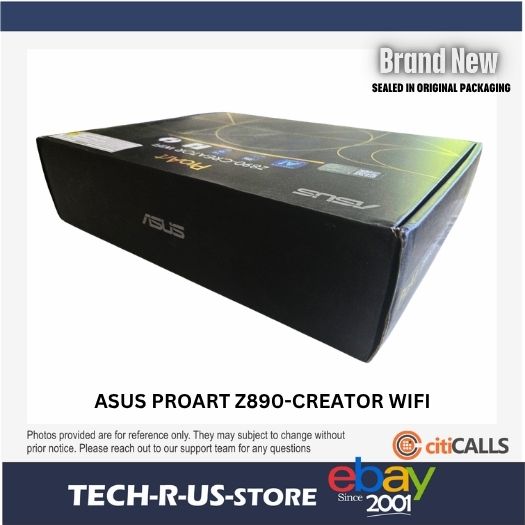

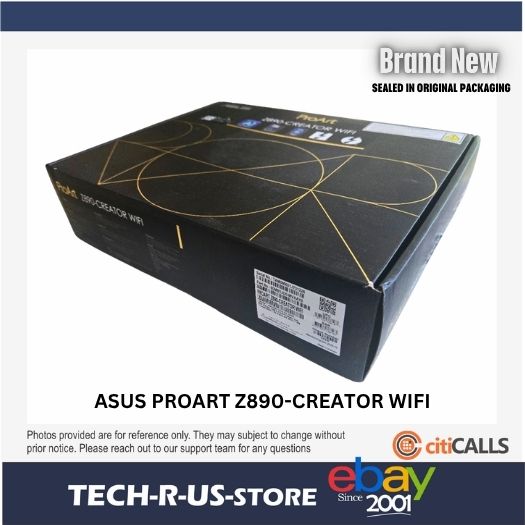

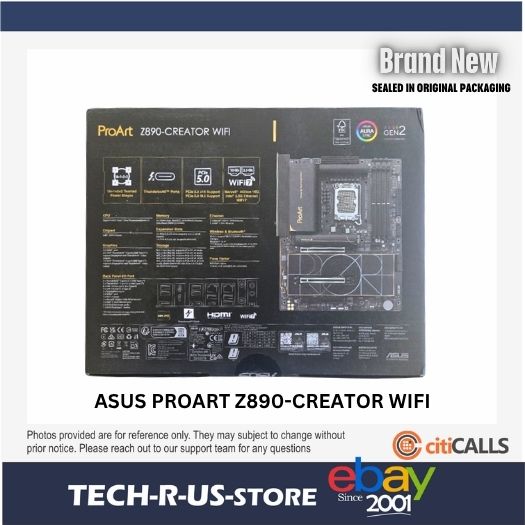

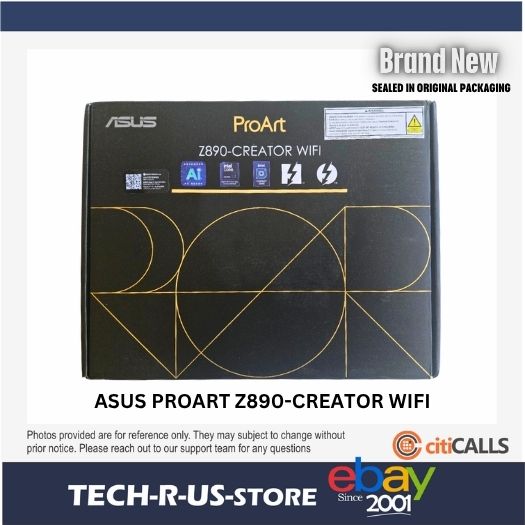

Asus PROART Z890-CREATOR WIFI MB Intel S2 4-DDR5 HDI- TBolt M2 SATA 2.5G-ETH ATX

ProArt Z890-CREATOR WIFI

CPU

• Support Intel® Core™ Ultra Processors (Series 2), LGA1851
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel® Z890 Chipset

Memory

• 4 x DIMM slots, max. 256GB, DDR5
• Support up to 9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM)*
• Dual channel memory architecture
• Supports Intel® Extreme Memory Profile (XMP) memory module
• ASUS Enhanced Memory Profile III (AEMP III)
• Support DIMM Fit
• Support DIMM Flex

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration

** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

• 1 x HDMI™ port**
• 2 x Intel® Thunderbolt™ 5 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***
• 1 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs****

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports 4K@60Hz as specified in HDMI 2.1

*** Supports up to 2 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors with DP in.

*** Supports up to 1 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors without DP in.

*** For resolution support please check DisplayPort 2.1 specs. ThunderboltTM 5 bandwidth is limited by DisplayPort™ 2.1 with up to 77.4 Gbit/s. We recommend chain-connecting the monitors using verified Thunderbolt™ cables.

**** In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20.

***** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

Expansion Slots

• Intel® Core™ Ultra Processors (Series 2) *
• 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)
• Intel® Z890 Chipset

*1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage. Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*

• Intel® Core™ Ultra Processors (Series 2) *
  • M.2_1 slot (Key M), type 2242/2260/2280/22110  (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• Intel® Z890 Chipset
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
  • M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)**
  • 4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

** M.2_5 slot shares bandwidth with PCIe 4.0 x16 slot. When M.2_5 slot is operating, PCIe 4.0 x16 slot will be disabled.

Ethernet

• 1 x Marvell® AQtion 10Gb Ethernet
• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 7*
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band**
• Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
• Bluetooth® v5.4***

*Wi-Fi features may vary depending on the operating system

 For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.

 For Windows 10, only Wi-Fi 6 is supported.

** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

• Rear USB (Total 10 ports)
  • 2 x Thunderbolt™ 5 ports (2 x USB Type-C®)
  • 1 x Thunderbolt™ 4 port (1 x USB Type-C®)
  • 6 x USB 10Gbps ports (6 x Type-A )
  • 1 x USB 2.0 port (1 x Type-A )
• Front USB (Total 5 ports)
  • 1 x USB 20Gbps (supports USB Type-C®)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 1 x USB 2.0 header supports 2 additional USB 2.0 ports
  • USB Type-C® power delivery output: max. 5V/3A

Audio

• Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
  • - Impedance sense for front and rear headphone outputs
  • - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
  • - Supports up to 32-Bit/192 kHz playback*Audio Features
  • - Gold-plated audio jacks
  • - Premium audio capacitors
  • - Dedicated audio PCB layers

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

• 2 x Thunderbolt™ 5 USB Type-C® ports
• 1 x Thunderbolt™ 4 USB Type-C® port
• 6 x USB 10Gbps ports (6 x Type-A)
• 1 x USB 2.0 port (1 x Type-A)
• 1 x DisplayPort (Input only)
• 1 x HDMI™ port
• 1 x Wi-Fi module1 x Marvell® AQtion 10Gb Ethernet port
• 1 x Intel® 2.5Gb Ethernet port
• 2 x Gold-plated audio jacks
• 1 x BIOS FlashBack™ button

Internal I/O Connectors

• Fan and Cooling Related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 5 x 4-pin Chassis Fan headers
• Power Related
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V CPU Power connector
• Storage Related
  • 5 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• USB
  • 1 x USB 20Gbps connector (supports USB Type-C® )
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 1 x USB 2.0 header supports 2 additional USB 2.0 ports
• Miscellaneous
  • 3 x Addressable Gen2 headers
  • 1 x Clear CMOS button
  • 1 x COM Port header
  • 1 x CPU Over voltage jumper
  • 1 x Chassis Intrusion header
  • 1 x Front Panel Audio header (F_AUDIO)
  • 1 x SPI TPM header (14-1 pin)
  • 1 x 10-1 pin Front System Panel header
  • 1 x Thermal Sensor header

Special Features

• ASUS 5X PROTECTION III /
  • - DIGI+ VRM (- Digital power design with DrMOS)
  • - ESD Guards
  • - LANGuard
  • - Overvoltage protection
  • - SafeSlot
  • - Stainless-steel back I/O
• ASUS Q-Design
  • - M.2 Q-Latch
  • - M.2 Q-Release
  • - M.2 Q-Slide
  • - Q-Release Slim (with PCIe SafeSlot)
  • - Q-Antenna
  • - Q-Connector
  • - Q-Dashboard
  • - Q-DIMM
  • - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• ASUS Thermal Solution
  • - M.2 heatsink backplate
  • - M.2 heatsink
  • - VRM heatsink design
• ASUS EZ DIY
  • - BIOS FlashBack™ button
  • - BIOS FlashBack™ LED
  • - Box headers
  • - Clear CMOS button
  • - CPU Socket lever protector
  • - ProCool II
  • - Pre-mounted I/O shield
  • - SafeDIMM
• Aura Sync
  • - Addressable Gen2 headers
• Bespoke Motherboard Design & Business Focused Features
  • - 24/7 reliability- Overcurrent protection

Software Features

• ASUS Exclusive Software
• Armoury Crate
  • - Aura Creator
  • - Aura Sync
  • - Fan Xpert 4
  • - Power Saving
• ASUS Driver Hub
• ASUS GlideX
• ASUS CPU-Z
• CreatonFirst
• ProArt Creator Hub
• TurboV Core
• Thunderbolt™ Share
• USB Wattage Watcher
• Adobe Creative Cloud (Free Trial)
• Norton 360 Deluxe (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• AI Overclocking Guide
• ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash
  • - ASUS UEFI BIOS EZ Mode
  • - ASUS MyHotkey
• NPU Boost

Remote Management Features

• IT Management software supported
  • - ASUS Control Center Express(ACCE)

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• Cables
  • 2 x SATA 6Gb/s cables
• Miscellaneous
  • 1 x ASUS WiFi Q-Antenna
  • 1 x Q-connector
  • 2 x M.2 Q-Latch packages
  • 2 x M.2 rubber packages
  • 1 x ProArt accessory bag
• Documentation
  • 1 x ACC Express activation key card
  • 1 x Quick start guide

Operating System

• Windows 11  (22H2 & later)

Form Factor

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
