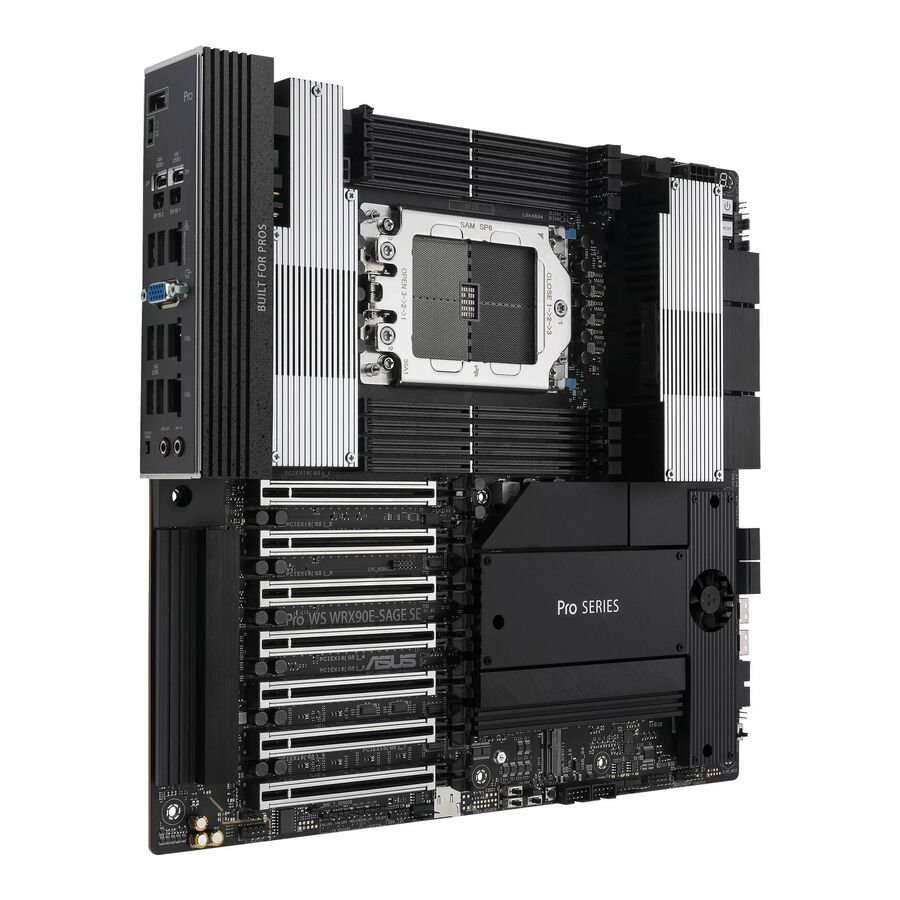

ASUS PROWSWRX90ESAGESE Workstation Motherboard - AMD WRX90 Chipset

General Information

• Manufacturer: ASUS Computer International
• Brand Name: Asus
• Manufacturer Part Number: PROWSWRX90ESAGESE
• Product Series: PRO
• Product Model: WS WRX90E-SAGE SE
• Product Name: PRO WS WRX90E-SAGE SE Workstation Motherboard
• Packaged Quantity: 1
• Product Type: Workstation Motherboard

Marketing Information:

• AMD sTR5 EEB workstation motherboard, 7 PCIe 5.0 x16 slots, multi-GPU support, robust 32+3+3+3 power-stage design, CPU and memory overclocking ready, 4 PCIe 5.0 M.2 slots, dual 10 Gb LAN, PCIe Q-Release Slim
  • AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors.

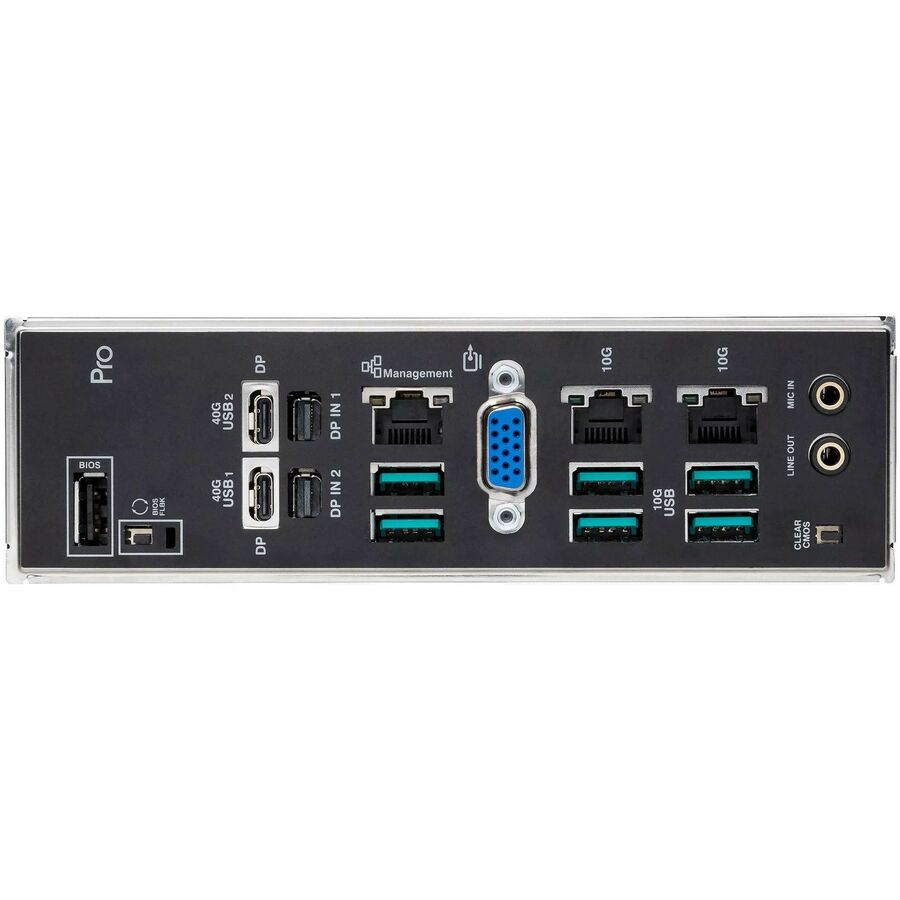

  • Ultrafast connectivity: Seven PCIe®5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4®40Gbps Type-C®and SlimSAS NVMe support.
  • CPU and memory overclocking: Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).
  • Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.
  • PCIe Q-release Slim: Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.
  • Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.
  • Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.

Processor & Chipset

• Chipset Manufacturer: AMD
• Chipset Model: WRX90
• Total Processor Supported: 1
• Processor Socket: Socket sTR5
• Processor Supported: Ryzen Threadripper PRO

Memory

• Number of Memory Slots: 8
• Memory Form Factor:
  • DIMM
  • UDIMM
• Memory Technology: DDR5 SDRAM

I/O Controller

• Controller Type: Serial ATA/600
• RAID Supported: Yes
• RAID Levels:
  • 0
  • 1
  • 5
  • 10

Video

• Onboard Video: CPU Dependent Video

Audio

• Audio Channels: 5.1

Network & Communication

• Gigabit Ethernet: Yes
• 10Gigabit Ethernet: Yes

I/O Expansions

• Total Number of Expansion Slots: 7
• PCI Express Standard: PCI Express 5.0
• Total Number of PCI Express Slots: 7
• Number of PCI Express x16 Slots: 7

Interfaces/Ports

• Total Number of USB Ports: 9
• Number of USB4 Ports: 2
• VGA: Yes
• DisplayPort: Yes
• Number of Network (RJ-45) Ports: 2

Onboard Interfaces

• Number of SATA Interfaces: 4
• Number of M.2 Interfaces: 4
• Total Number of Onboard USB Ports: 7
• Number of Onboard USB 2.0 Ports: 4

Physical Characteristics

• Form Factor: SSI EEB
