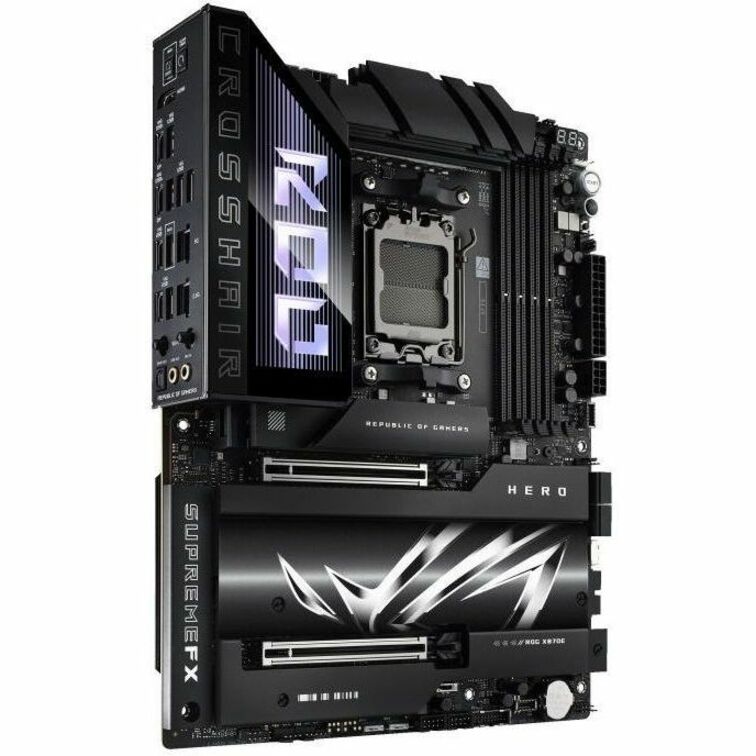

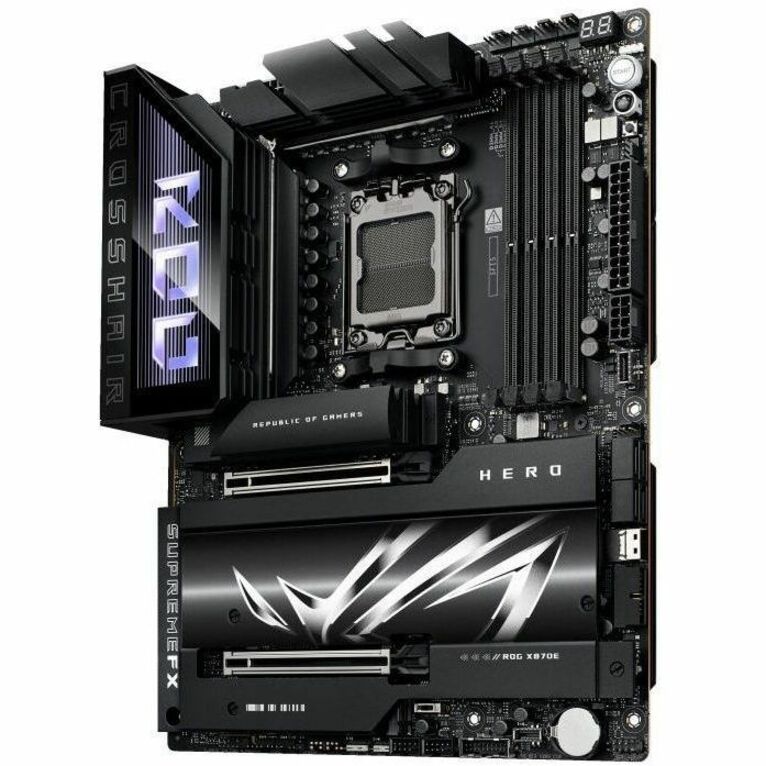

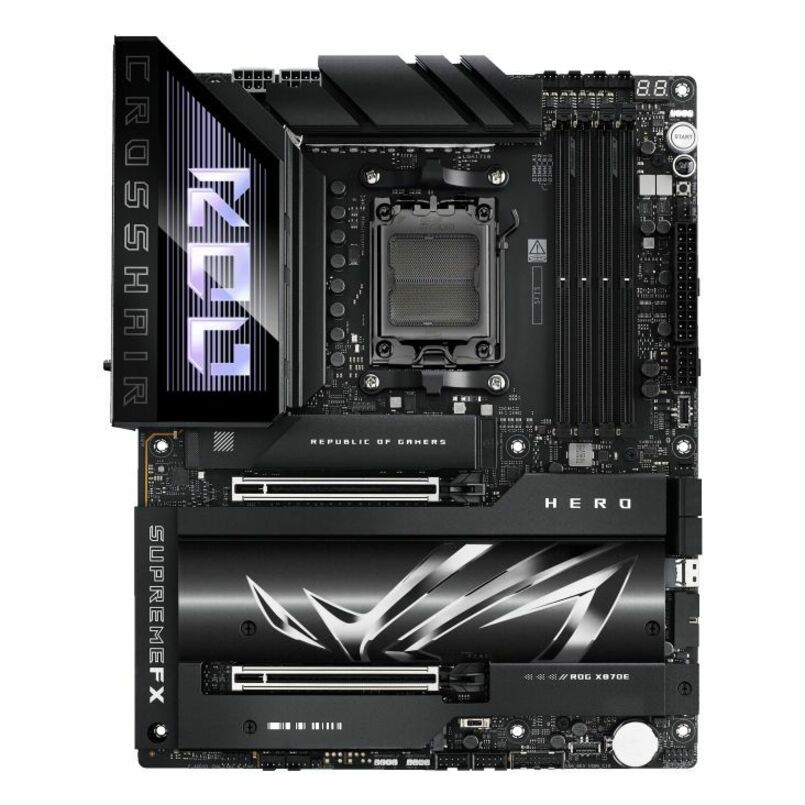

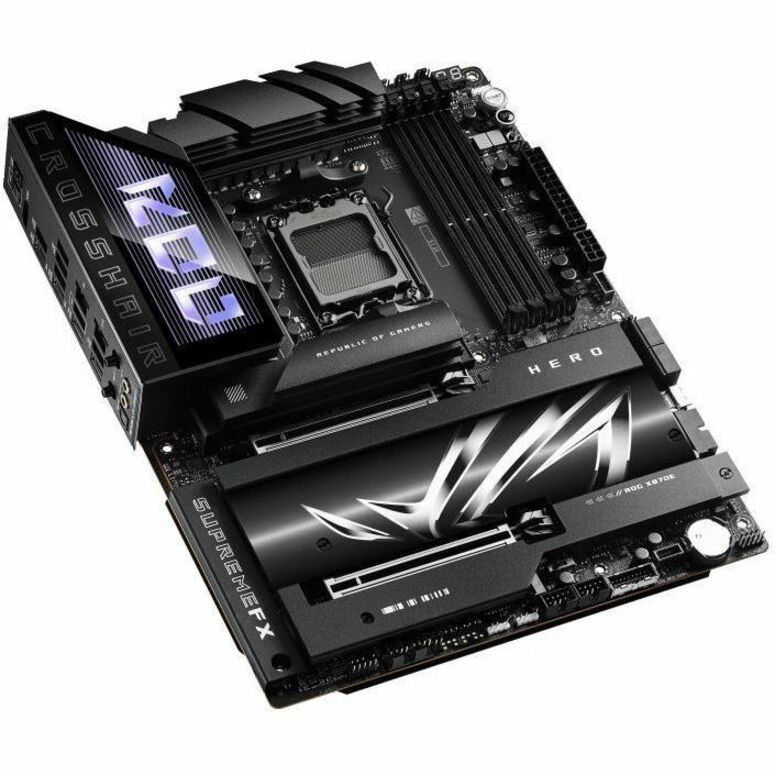

Asus ROGCROSSHAIRX870EHERO ROG Crosshair X870E HERO Gaming Desktop Motherboard

General Information

• Manufacturer: ASUS Computer International
• Brand Name: Asus ROG
• Manufacturer Part Number: ROGCROSSHAIRX870EHERO
• Product Line: Crosshair
• Product Model: X870E HERO
• Product Name: Crosshair X870E HERO Gaming Desktop Motherboard
• Product Type: Gaming Desktop Motherboard

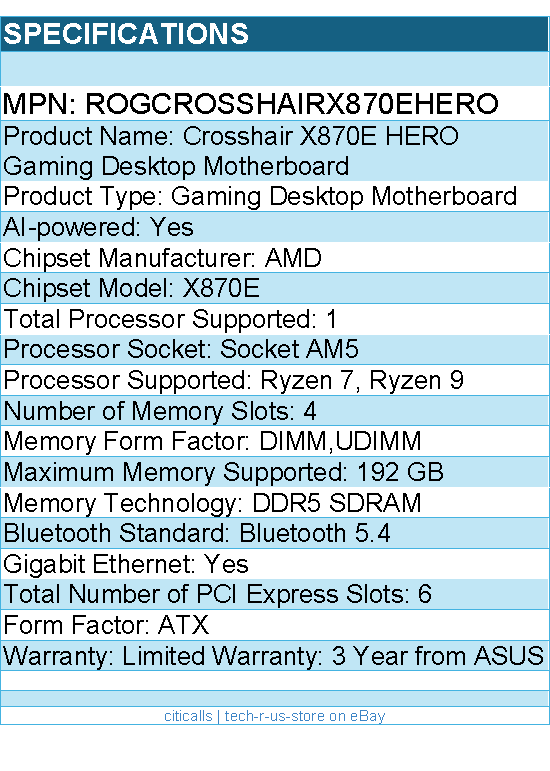

Technical Information

• AI-powered: Yes

Processor & Chipset

• Chipset Manufacturer: AMD
• Chipset Model: X870E
• Total Processor Supported: 1
• Processor Socket: Socket AM5
• Processor Supported: Ryzen 7, Ryzen 9

Memory

• Number of Memory Slots: 4
• Memory Form Factor: DIMM,UDIMM
• Maximum Memory Supported: 192 GB
• Memory Technology: DDR5 SDRAM
• Memory Speed Supported: 8000 MHz
• Error Checking: ECC

I/O Controller

• Controller Type:
• Serial ATA/600
• RAID Supported: Yes
• RAID Levels:
  • 0
  • 1
  • 5
  • 10

Video

• Onboard Video: CPU Dependent Video

Audio

• Audio Channels: 7.1

Network & Communication

• Bluetooth: Yes
• Bluetooth Standard: Bluetooth 5.4
• Gigabit Ethernet: Yes
• 2.5Gigabit Ethernet: Yes
• Wireless LAN: Yes
• Wireless LAN Standard: IEEE 802.11be

I/O Expansions

• Total Number of Expansion Slots: 6
• PCI Express Standard:
• PCI Express 4.0
• PCI Express 5.0
• Total Number of PCI Express Slots: 6
• Number of PCI Express x16 Slots: 6

Interfaces/Ports

• Total Number of USB Ports: 10
• S/PDIF: Yes
• VGA: Yes
• HD-: Yes
• HD- Version: 2.1
• DisplayPort: Yes
• Number of Network (RJ-45) Ports: 2

Onboard Interfaces

• Number of SATA Interfaces: 4
• Number of M.2 Interfaces: 5
• Total Number of Onboard USB Ports: 10
• Number of Onboard USB 2.0 Ports: 4

Physical Characteristics

• Form Factor: ATX

Miscellaneous

• Package Contents:
  • Crosshair X870E HERO Gaming Desktop Motherboard
  • 1 x ARGB RGB extension cable
  • 4 x SATA 6Gb/s cables
  • 1 x ASUS WiFi Q-Antenna
  • 1 x Q-connector
  • 2 x M.2 Q-Latch package
  • 3 x M.2 Q-Slide package
  • 5 x M.2 rubber package
  • 1 x ROG stickers
  • 1 x ROG thank you card
  • 1 x ROG Bottle Opener
  • 1 x USB drive with utilities and drivers
  • 1 x Quick start guide

• Environmental Compliance:
• Restriction of Hazardous Substances (RoHS)

Warranty

• Limited Warranty: 3 Year from ASUS
