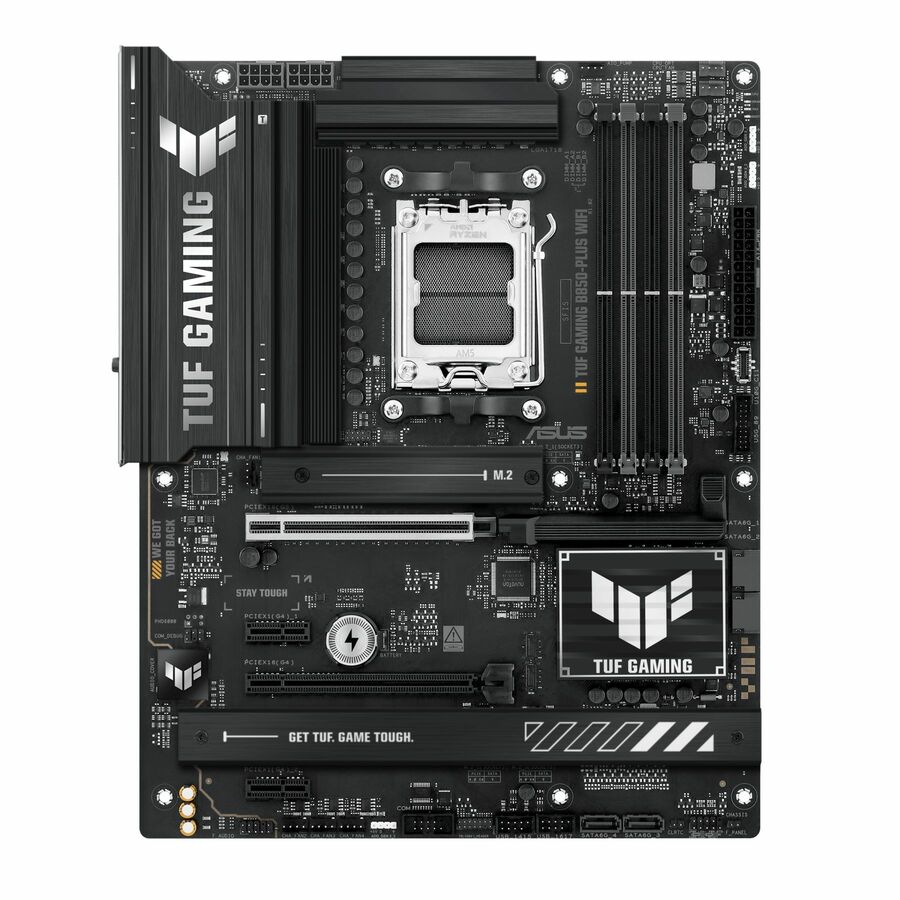

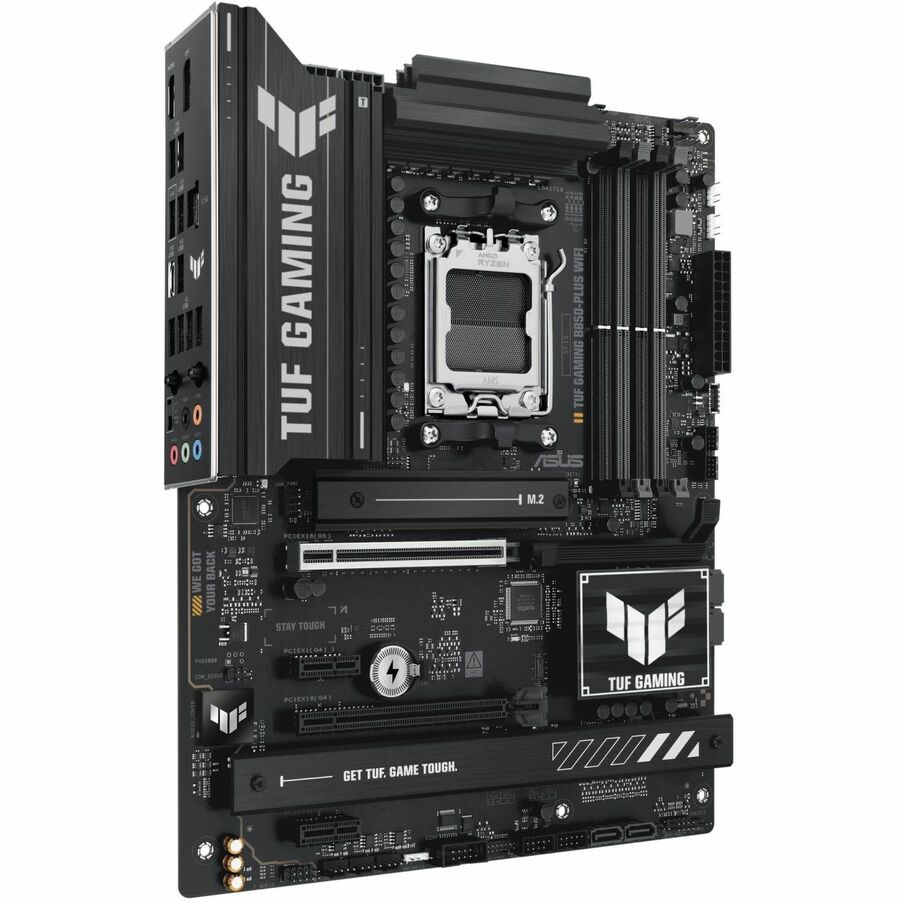

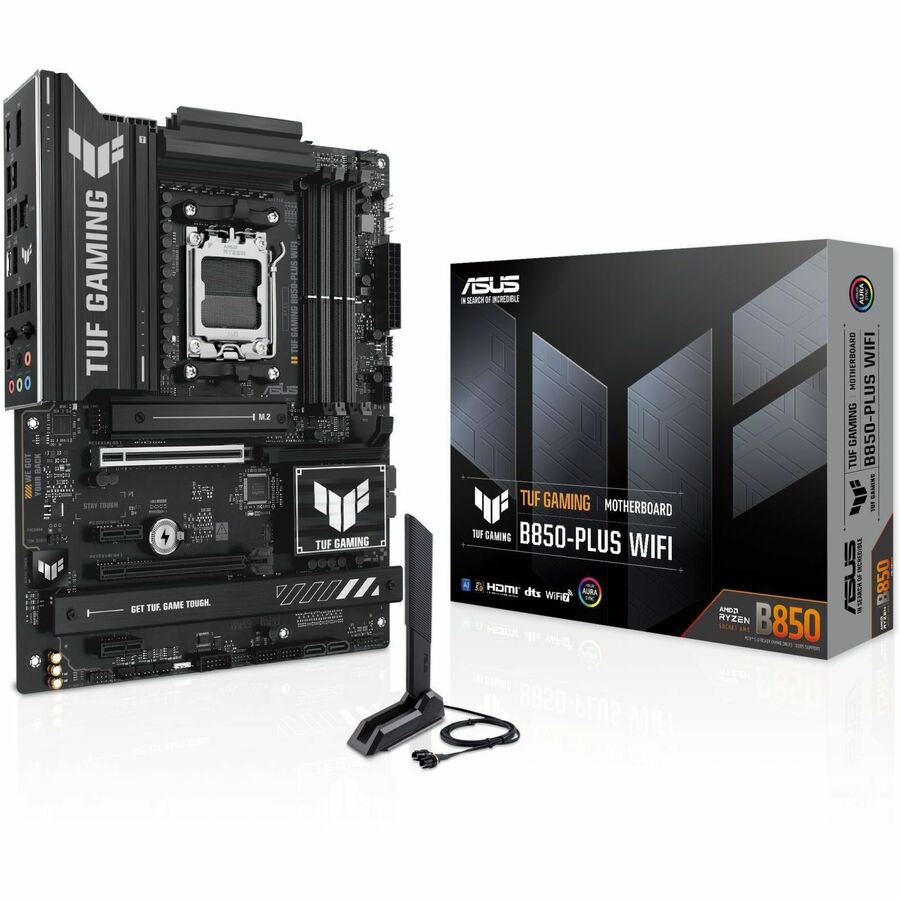

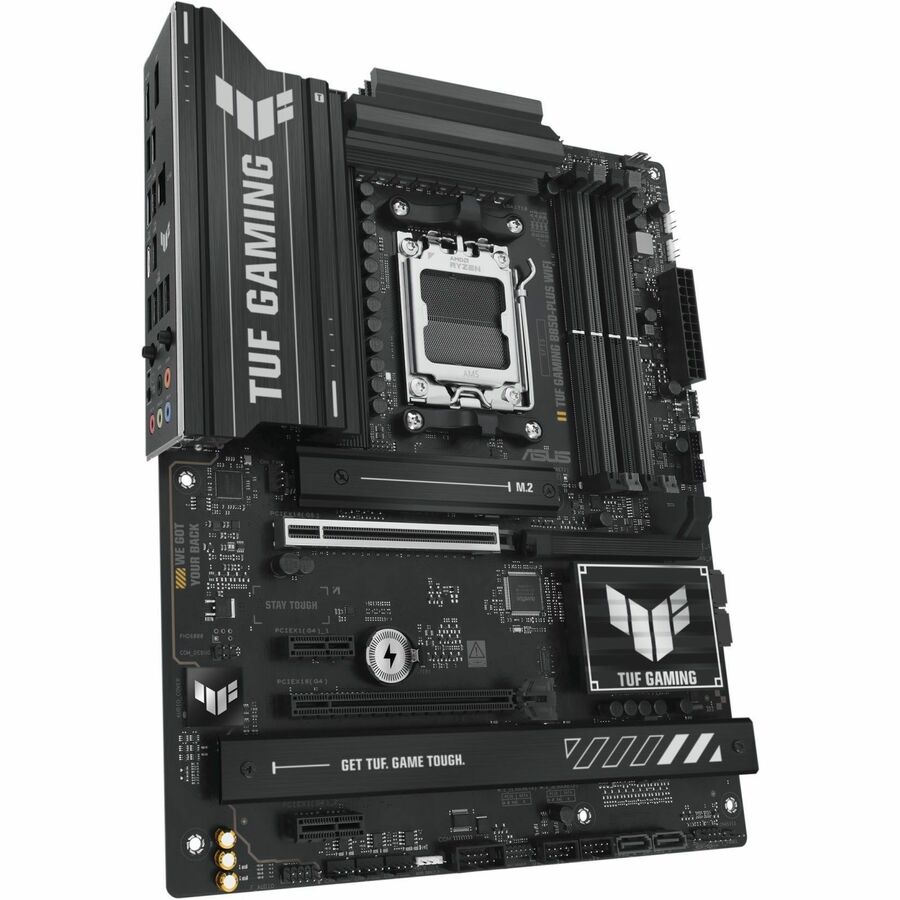

ASUS TUF GAMING B850-PLUS WIFI Motherboard - B850 AM5 max.192GB DDR5 ATX Retail

General Information

• Manufacturer: ASUS Computer International
• Brand Name: TUF
• SKU: 292935
• Manufacturer Part Number: TUF GAMING B850-PLUS WIFI
• Product Model: B850-PLUS WIFI
• Product Name: B850-PLUS WIFI Gaming Desktop Motherboard
• Product Type: Gaming Desktop Motherboard

Technical Information

• AI-powered: Yes

Processor & Chipset

• Chipset Manufacturer: AMD
• Chipset Model: B850
• Total Processor Supported: 1
• Processor Socket: Socket AM5
• Processor Supported:
• Ryzen 7
• Ryzen 9
• Memory
• Number of Memory Slots: 4
• Memory Form Factor:
• DIMM
• UDIMM
• Maximum Memory Supported: 192 GB
• Memory Technology: DDR5 SDRAM
• Memory Speed Supported: 8000 MHz
• Error Checking: ECC

I/O Controller

• Controller Type: Serial ATA/600
• RAID Supported: Yes
• RAID Levels:
  • 0
  • 1
  • 5
  • 10

Video

• Onboard Video: CPU Dependent Video

Audio

• Audio Channels: 7.1

Network & Communication

• Bluetooth: Yes
• Bluetooth Standard: Bluetooth 5.4
• Gigabit Ethernet: Yes
• 2.5Gigabit Ethernet: Yes
• Wireless LAN: Yes
• Wireless LAN Standard: IEEE 802.11be

I/O Expansions

• Total Number of Expansion Slots: 5
• PCI Express Standard:
• PCI Express 4.0
• PCI Express 5.0
• Total Number of PCI Express Slots: 5
• Number of PCI Express x1 Slots: 2
• Number of PCI Express x16 Slots: 3

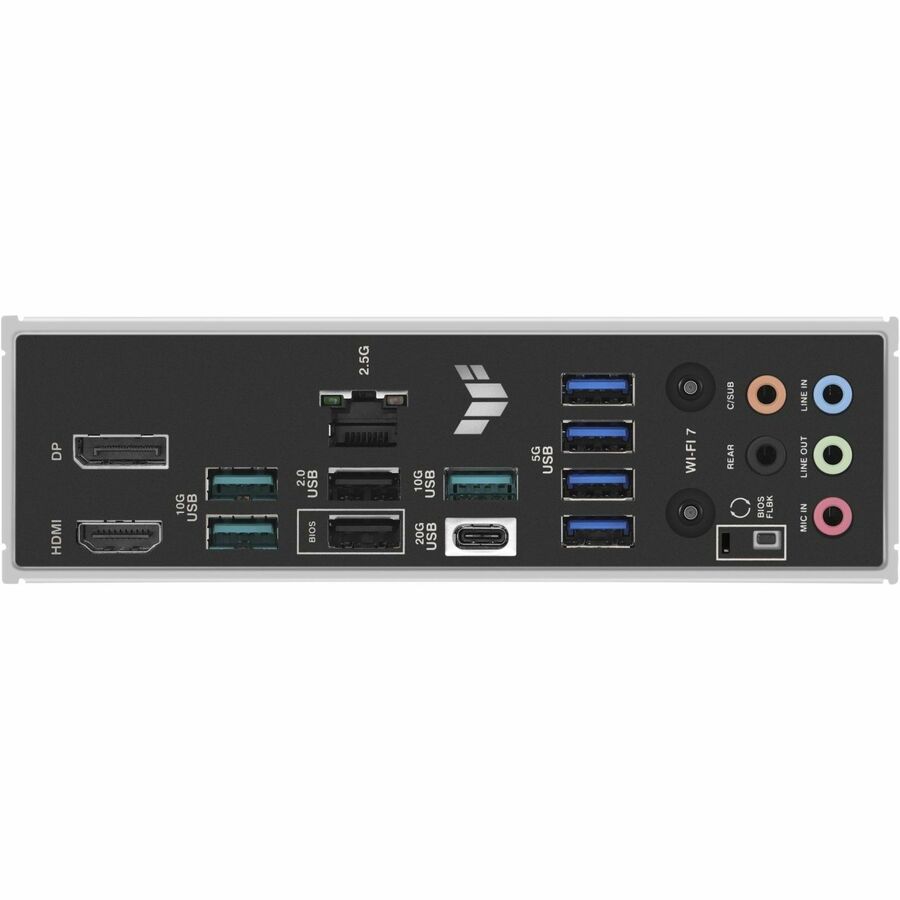

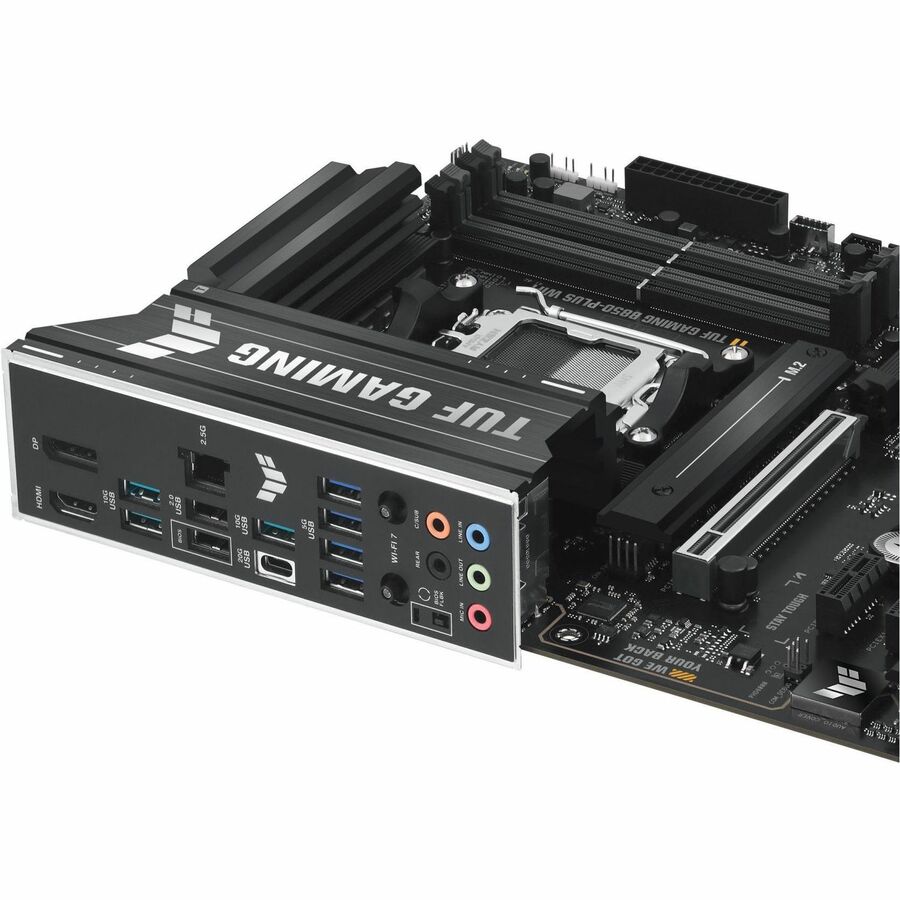

Interfaces/Ports

• Total Number of USB Ports: 10
• VGA: Yes
• HDMI: Yes
• HDMI Version: 2.1
• DisplayPort: Yes
• Number of Network (RJ-45) Ports: 1
• Thunderbolt: Yes

• Number of Thunderbolt 4 Ports: 2

Onboard Interfaces

• Number of SATA Interfaces: 4
• Number of M.2 Interfaces: 3
• Total Number of Onboard USB Ports: 7
• Number of Onboard USB 2.0 Ports: 4

Physical Characteristics

• Form Factor: ATX
