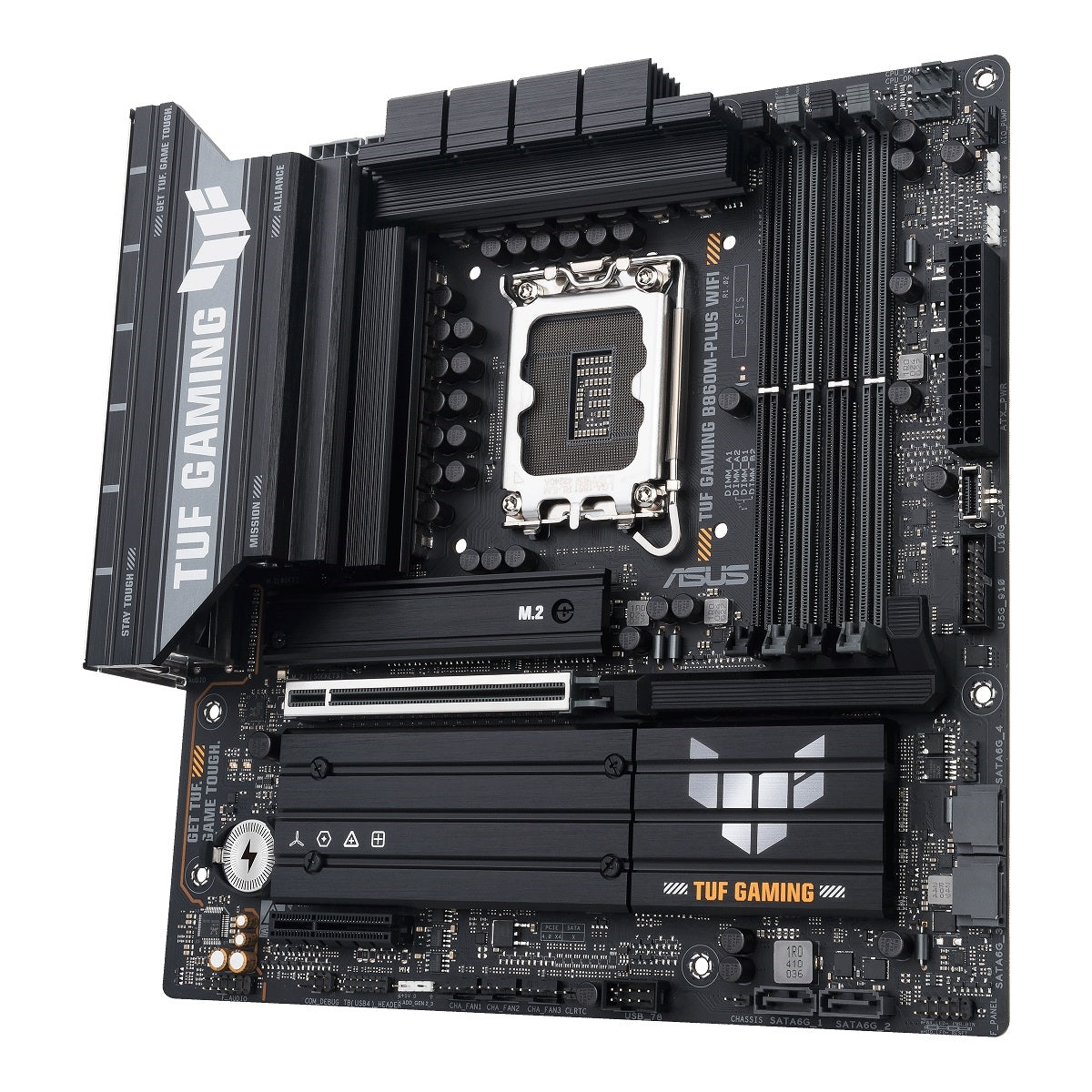

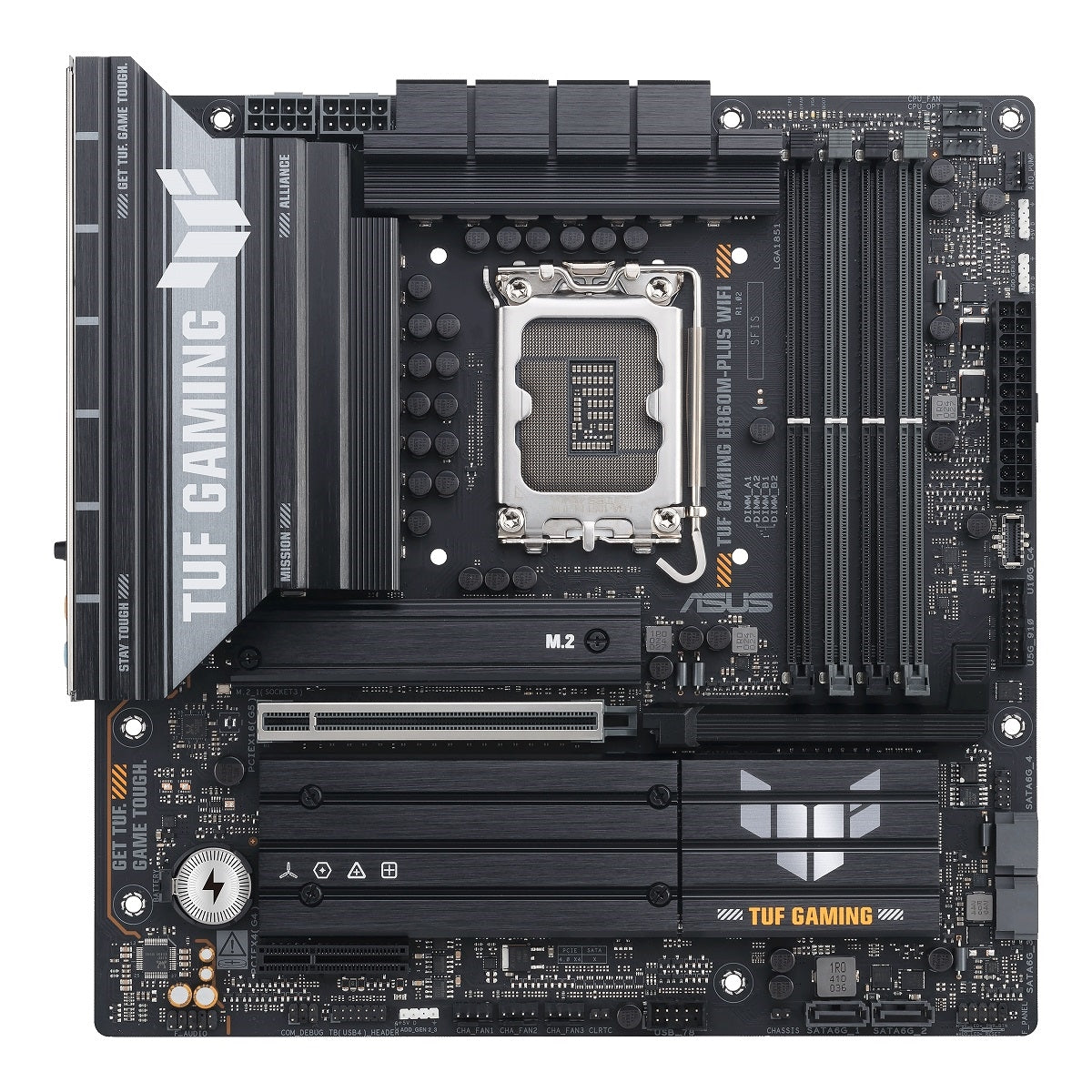

ASUS TUF GAMING B860M-PLUS WIFI Motherboard - B860 LGA1851 Max.192GB DDR5 mATX

Marketing Information

• TUF GAMING B860M-PLUS WIFI
• ASUS TUF GAMING B860M-PLUS WIFI takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
• NPU Boost
• The integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.
• * The overclocking performance may vary depending on the CPU series and motherboard used.
• ** Testing was conducted with an Intel Arrow Lake QS Q2HA Ultra 9 285K processor, ROG Maximus Z890 Extreme motherboard, GeForce RTX™ 4090 24GB graphics card, and XPG Lancer DDR5 memory modules (model AX5U6000C4016G).
• Asynchronous Clock
• For next-level frequency flexibility, the TUF Gaming B860M features a built-in clock generator that isolates CPU base clock from memory, NPU, D2D and NGU. Drive memory, NPU and others performance to their absolute brink while maintaining the stability of CPU clock domains.
• Separate CPU BCLK from other domains for unfettered overclocking.
• * *NGU stands for Next Generation Uncore.

Detail Specifications

• CPU
• Support Intel CoreTM Ultra Processors (Series 2) ,LGA1851 Note1
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Note2
• Note1: Refer to https://www.asus.com/support/download-center/ for CPU support list.
• Note2: Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
• Intel B860 Chipset
• Memory
• 4 x DIMM slots, max. 256GB, DDR5
• Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) Note
• Dual Channel Memory Architecture
• DIMM Fit
• Supports Intel Extreme Memory Profile (XMP) memory module
• ASUS Enhanced Memory Profile III(AEMPIII)
• Note: Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
• Note: Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
• Graphics
• 1 x DisplayPort Note2
• 1 x HDMITM port Note3
• 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output Note2
• Note1: Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
• Note2: Supports max. 4K at 60Hz as specified in DisplayPort 1.4.
• Note3: Supports 4K at 60Hz as specified in HDMI 2.1.
• Note4: VGA resolution support depends on processors or graphic cards resolution.
• Note5: While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
• Expansion Slots
• Intel CoreTM Ultra Processors(Series 2) Note
• 1 x PCIe 5.0 x16 slot
• Intel B860 Chipset
• 1 x PCIe 4.0 x4 slot
• - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
• Storage
• Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Note
• Intel CoreTM Ultra Processors(Series 2) Note
• M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
• Intel B860 Chipset
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports
• Note: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
• Ethernet
• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard
• Wireless and Bluetooth
• Wi-Fi 7 Note1
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band Note2
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
• Bluetooth v5.4 Note3
• Note1: Wi-Fi features may vary depending on the operating system
• For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
• Note2: Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
• Note3: The Bluetooth version may vary, please refer to the Wi-Fi module manufacturers website for the latest specifications.
• USB
• Rear USB (Total 8 ports)
• 1 x USB 20Gbps port (1 x USB Type-C)
• 2 x USB 10Gbps port (2 x Type-A)
• 4 x USB 5Gbps ports (4 x Type-A)
• 1 x USB 2.0 ports (1x Type-A)
• Front USB (Total 5 ports)
• 1 x USB 10Gbps connector (supports USB Type-C)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 1 x USB 2.0 headers support 2 additional USB 2.0 ports
• Note: USB Type-C power delivery output: max. 5V/3A
• Audio
• Realtek 7.1 Surround Sound High Definition Audio CODEC
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192 kHz playback
• Audio Features
• - Audio Shielding
• - Rear optical S/PDIF out port
• - Premium audio capacitors
• - Dedicated audio PCB layers

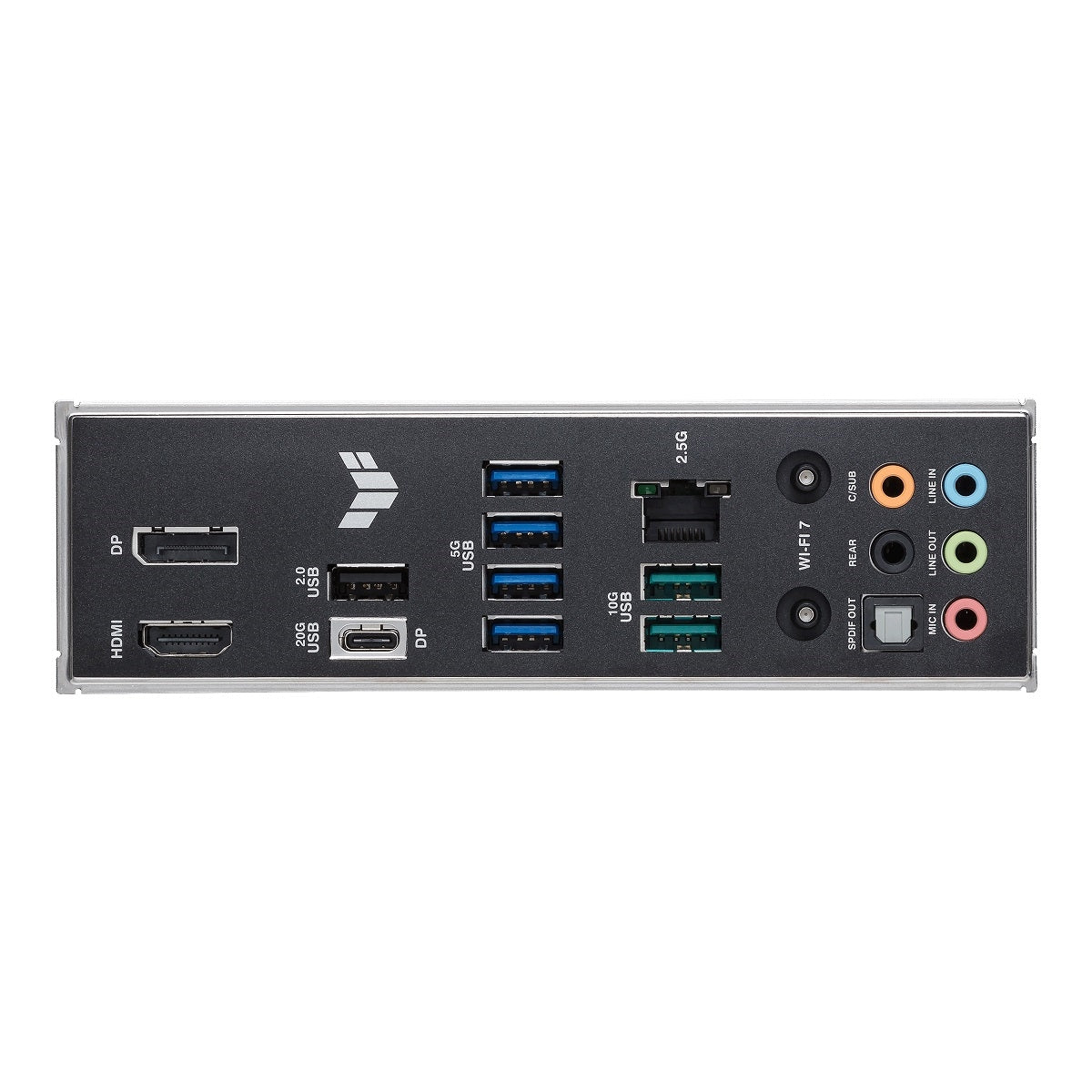

• Back Panel I/O Ports
• 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode)
• 2 x USB 10Gbps port (2 x Type-A)
• 4 x USB 5Gbps ports (4 x Type-A)
• 1 x USB 2.0 port (1 x Type-A)
• 1 x DisplayPort
• 1 x HDMITM port
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port
• Internal I/O Connectors
• I/O Connectors Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 3 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V Power connectors
• Storage related
• 3 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 10Gbps connector (supports USB Type-C)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Clear CMOS header
• 1 x Chassis Intrusion header
• 1 x Front panel audio header (F_AUDIO)
• 1 x 10-1 pin Front System Panel header
• 1 x ThunderboltTM (USB4) header
• Special Features
• ASUS TUF PROTECTION
• - DIGI+ VRM (- Digital power design with DrMOS)
• - ESD Guards
• - TUF LANGuard
• - Overvoltage Protection
• - SafeSlot
• - Stainless-Steel Back I/O
• ASUS Q-Design
• - M.2 Q-Latch
• - PCIe Slot Q-Release
• - Q-Antenna
• - Q-Dashboard
• - Q-DIMM
• - Q-LED (CPU (red), DRAM (yellow), VGA (white), Boot Device (yellow green))
• ASUS Thermal Solution
• - M.2 heatsinks
• - VRM heatsink design
• ASUS EZ DIY
• - CPU Socket lever protector
• - ProCool
• - Pre-mounted I/O shield
• - SafeDIMM
• AURA Sync
• - Addressable Gen 2 headers
• Software Features
• ASUS Exclusive Software
• Armoury Crate
• - AURA Creator
• - AURA Sync
• - Fan Xpert 2+
• - Power Saving
• ASUS DriverHub
• ASUS GlideX
• TurboV Core
• TUF GAMING CPU-Z
• DTS Audio Processing
• Norton 360 for Gamers (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash
• - ASUS UEFI BIOS EZ Mode
• - ASUS MyHotkey
• NPU Boost
• BIOS
• 2 x 128 Mb Flash ROM, UEFI AMI BIOS
• Manageability
• WOL by PME, PXE
• Accessories
• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x ASUS WiFi Q-Antenna
• 2 x M.2 Rubber Packages
• 1 x TUF Gaming sticker
• 1 x Screw package for M.2 SSD
• Documentation
• 1 x Quick start guide
• Operating System
• Windows 11 (22H2 and later)
• Form Factor
• mATX Form Factor
• 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Warranty Information

• 3 Year Warranty from ASUS
