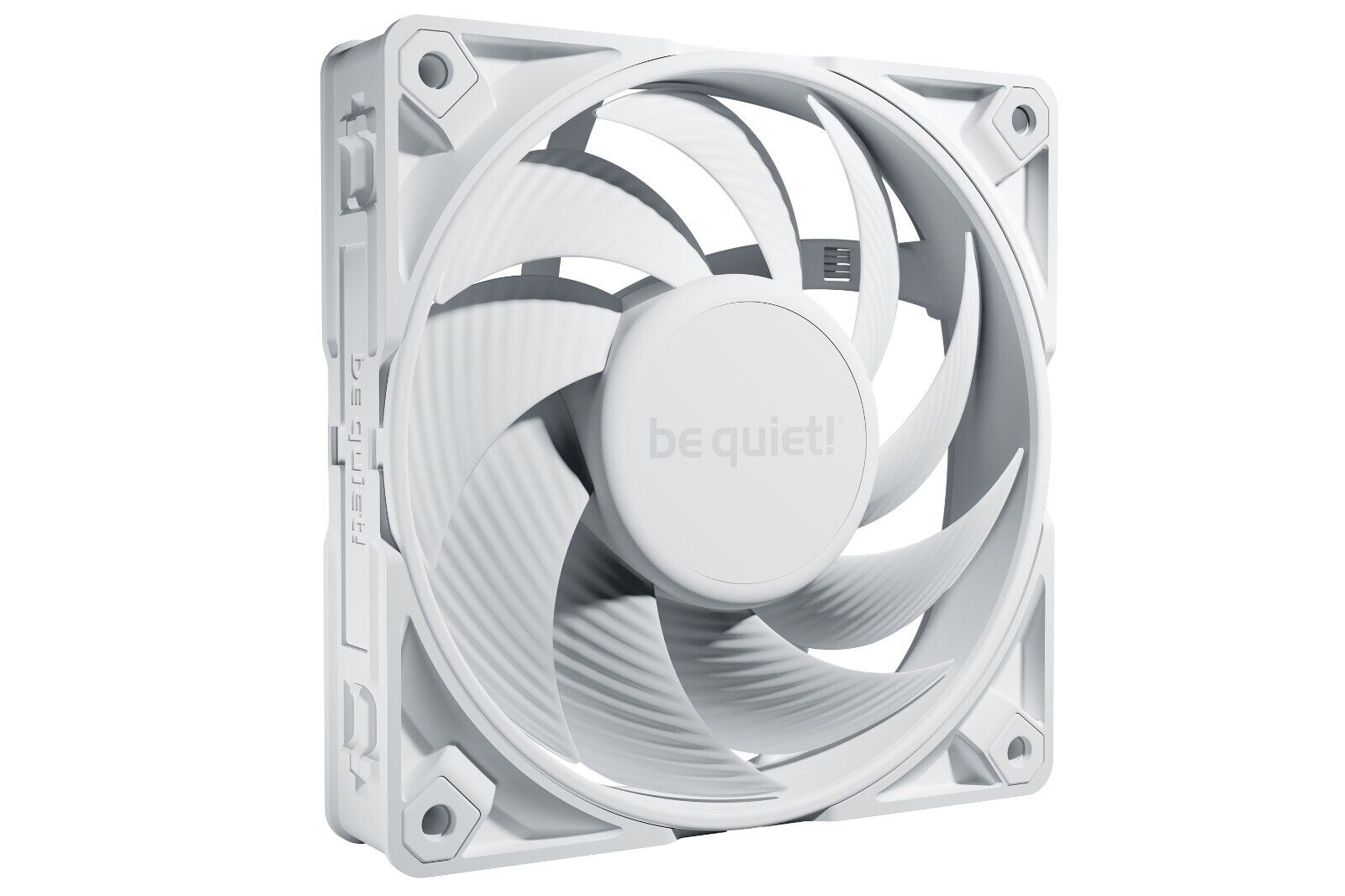

be quiet! BL118 SILENT-WINGS-PRO-4 120mm PWM 6-Pole Motor FAN FDB Bearing White

SILENT WINGS PRO 4
120mm PWM White
Legendary silence, epic performance and features

Silent Wings Pro 4 120mm PWM White is the most progressive, performant and versatile fan by be quiet!

• Optimized fan blades for the highest performance on radiators and heat sinks

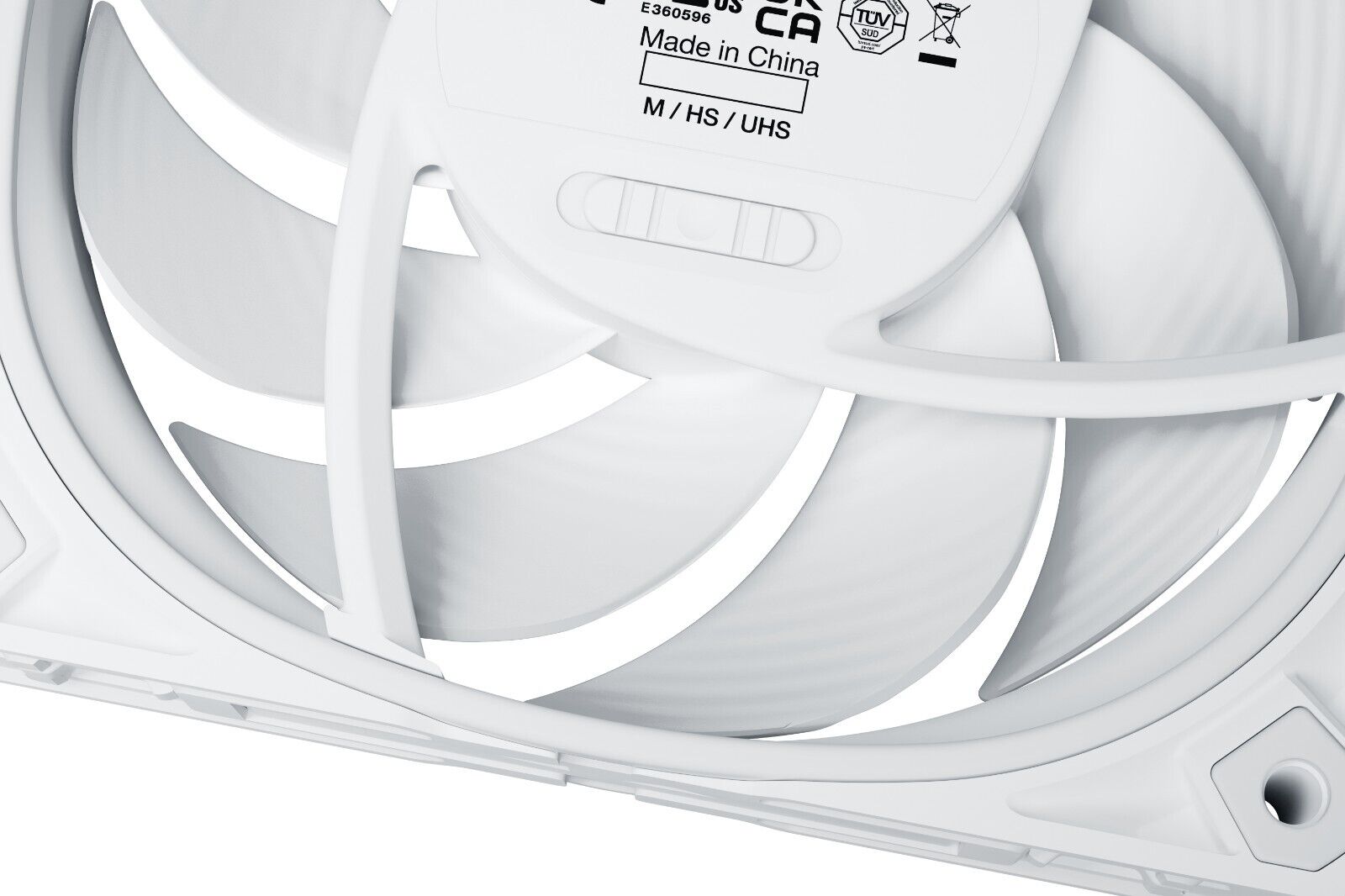

• Speed switch allows changing maximum PWM speed between medium-speed, high-speed and ultra-high-speed (up to 3000 rpm)
• Small tip clearance and a fan frame with a funnel-shaped air outlet for extremely high air pressure
• Virtually inaudible operation at regular speed
• 6-pole fan motor and fluid-dynamic bearing for less vibration and very smooth operations

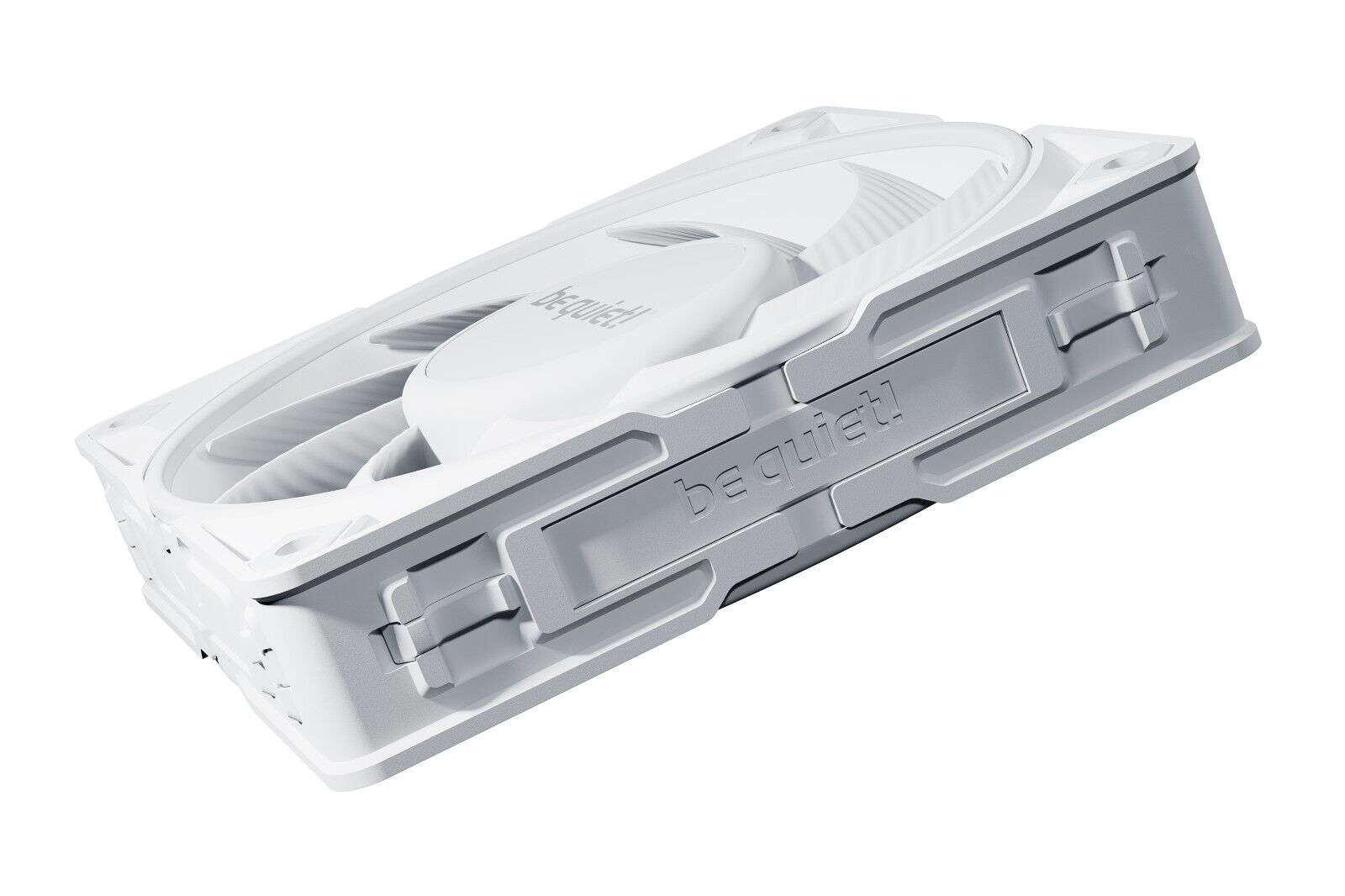

• Individual mounting systems for use as a case fan or with a radiator

GENERAL DATA

• Model: Silent Wings Pro 4 120mm PWM White
• Dimensions (mm): 120
• Color option: White
• Lighting: -
• Fan speed at 100% PWM / 12V (rpm): 3000
• Noise level at 100% PWM / 12V (dB(A)): 36.9
• Airflow at 100% PWM / 12V (CFM / m3/h): 83.9 / 142.5
• Air Pressure at 100% PWM / 12V (mm H2O): 5.31

MECHANICAL SPECIFICATIONS

• Dimensions (L x W x H), (mm): 120 x 25 x 120
• Weight incl. fixed cables (g): 227
• Bearing technology: FDB
• Motor technology: 6-pole fan motor
• Push pin fixing: ✓
• Screw fixing: ✓

CABLES / CONNECTORS

• Daisy-chain compatible: -
• Lighting connector: -

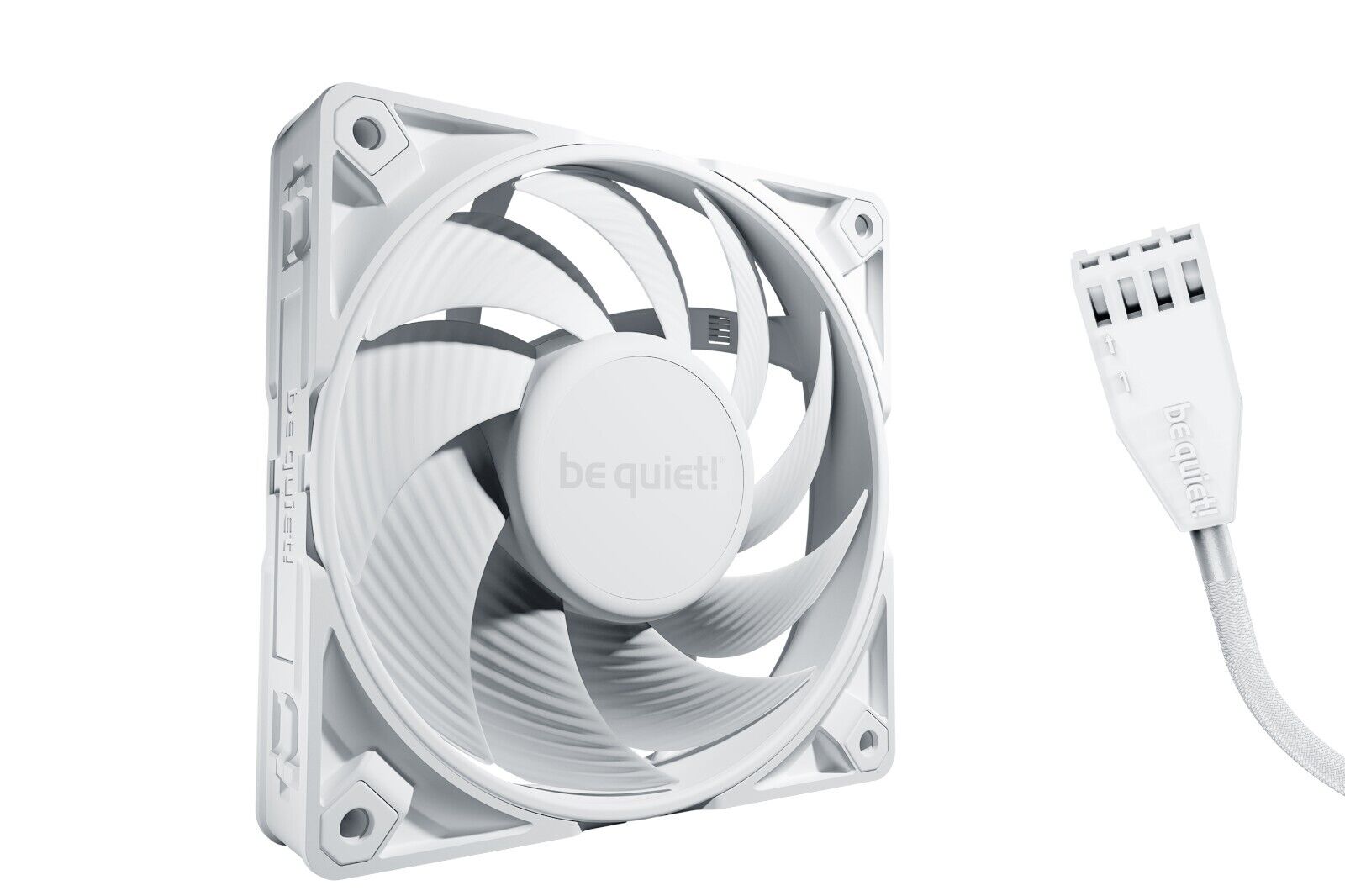

• Connector: 4-pin PWM
• Cable length (mm): 500
• Cable sleeve: ✓

PERFORMANCE / NOISE

• Airflow at 100% PWM / 12V (CFM / m3/h): 83.9 / 142.5
• Air Pressure at 100% PWM / 12V (mm H2O): 5.31
• Noise level at 100% PWM / 12V (dB(A)): 36.9
• Lifespan (h / 25°C): 300,000
• Zero RPM mode: ✓

ELECTRICAL SPECIFICATIONS

• Rated Voltage DC (V): 12
• Operating Voltage DC (V): 7 - 13.2
• Input current (A): 0.30
• Safety current (A): 0.30
• Input power (W): 3.6
• Rated Current LED (A): -

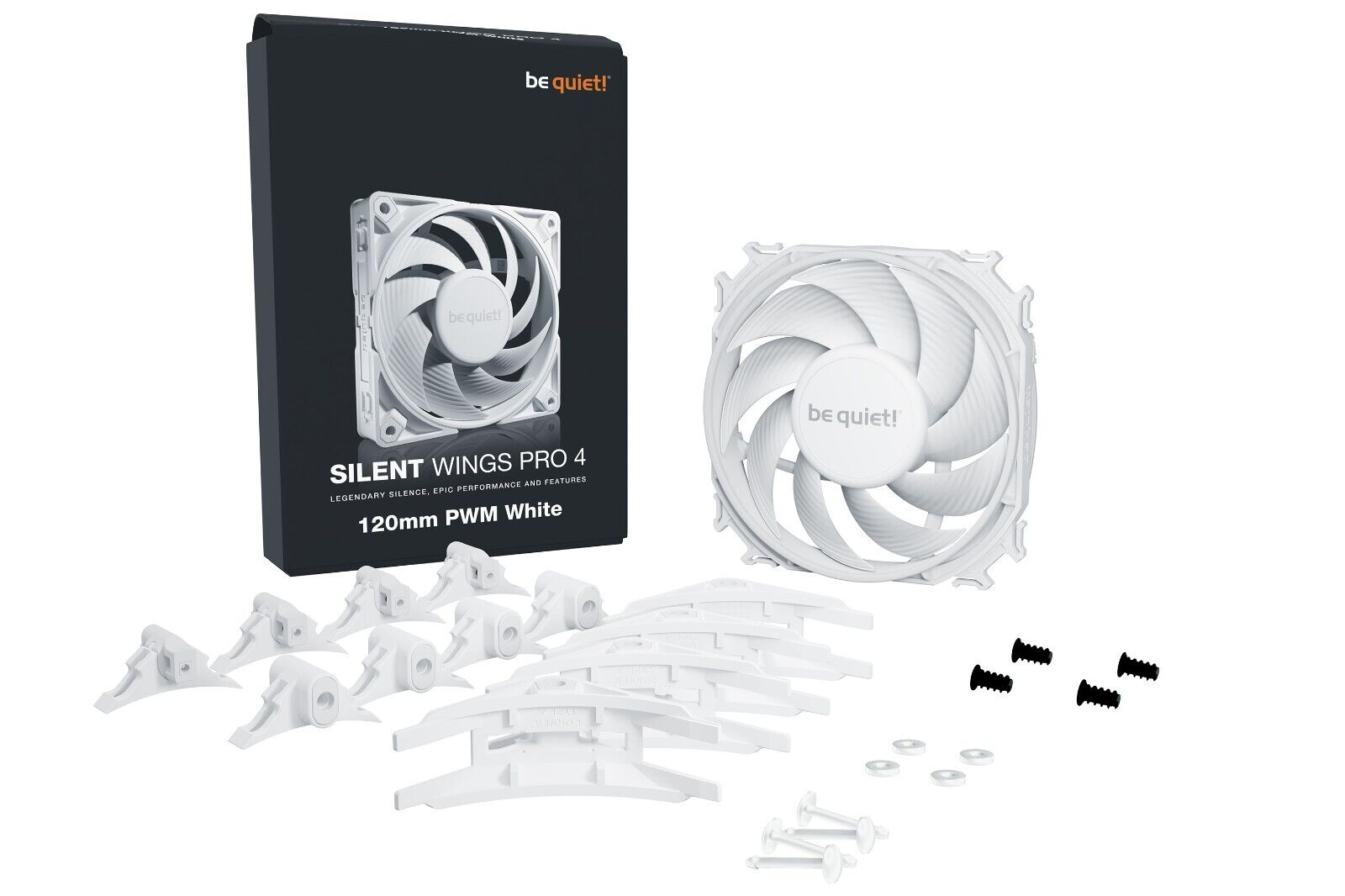

ACCESSORIES

• 3-pin to 4-pin 12V-connector: -
• 12V to 7V adapter: -
• 12V to 5V adapter: -
• Screws: 4
• Push pins: 4
• hard plastic washer: 4
• Others: Rubber & hard plastic & radiator mountings

SAFETY CERTIFICATION

Approvals: CE / RoHS / RU / UKCA / TÜV / WEEE

ENVIRONMENTAL DIRECTIVES

• RoHS: ✓
• WEEE: ✓
• Triman: ✓

SERVICE

• Warranty (Years): 5 direct from Be Quiet
• International hotline / free of charge: ✓ / DE, FR, US

LOGISTICS DATA AND RRP

• Article number: BL118
• EAN code: 4260052191095
• Dimensions, package (L x W x H), (mm): 192 x 31 x 141
• Gross weight, package (kg): 0.40
