be quiet! BW026 Silent Loop 3 420mm CPU AIO Liquid Cooler - 3500 RPM - 4 Pin

Marketing Information

• SILENT LOOP 3
• 420mm
• Superior technology and cooling
• Silent Loop 3 420mm is the virtually inaudible and incredibly high performing All-in-One water cooling unit with state-of-the-art technology.
• Highly engineered cooling block design
• Powerful 3-chamber pump design significantly reduces turbulences and noise
• Dampened and adjustable pump with 6-pole motor
• 3 Silent Wings 4 140mm PWM high-speed fans with radiator corners for virtually inaudible operation
• Incredibly high cooling performance
• Elegant premium design with discreet ARGB lighting
• Easy-to-access refill port and included coolant bottle for a long lifespan
• Flexible sleeved tubes and a convenient mounting ensure easy handling
• WHAT A COOL(ING) BLOCK
• Obsession with details

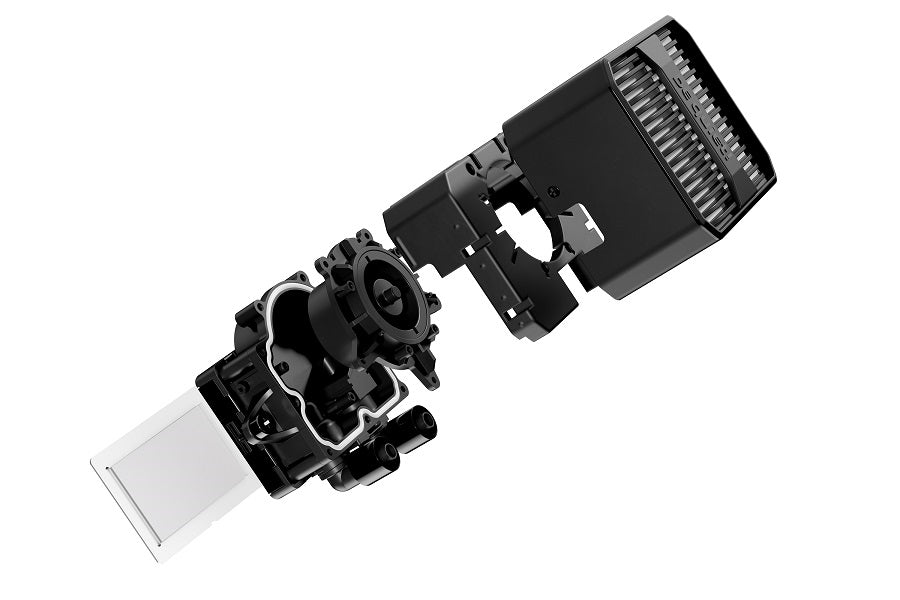

• The cooling block of Silent Loop 3 420mm is undisputed. The explanation may look complicated, but we owe it to our most loyal fans and all the enthusiasts out there: The cooling block boasts a 1,800 mm2 fin area, which is an increase of up to 2x compared to many other AiO's in this class. This greatly improves heat transfer and makes sure to cover all hot spots on the CPU. The large fin area could only be achieved by a specially developed screwless design for attaching the heat plate. The internal design of the flow path takes care that all areas are flowed to evenly to achieve high performance regardless of the CPU platform.
• SUPERIOR PUMP DESIGN
• Enjoy the silence
• A powerful PWM pump with 3-chamber design ensures the very high-performance of Silent Loop 3 420mm and is whisper-quiet at the same time. The second of its 3 chambers acts as a reservoir and offers enough space for the coolant to spread out and thus reduces turbulences before the liquid leaves the pump unit. In combination with the 6-pole 3-phase motor this results in a smooth and consequently silent operation.

Detail Specifications

• General data
• Model: Silent Loop 3 420mm
• Color option: Black
• Socket compatibility Intel: 1851 / 1700 / 1200 / 1150 / 1151 / 1155
• Socket compatibility AMD: AM5 / AM4 / TR5 / TR4
• Noise level (dB(A)) at 50% / 75% /100% rpm: 19.4 / 29.3 / 34.3
• Number of fans: 3
• Lighting connector: 3 Pin 5V Adressable
• Tube length (mm): 400
• Refill port: Yes

Pump specifications

• Pump speed (rpm): 3500
• Pump adjustable (rpm): 1700 - 3500
• Pump connector: 4-pin PWM

Radiator specifications

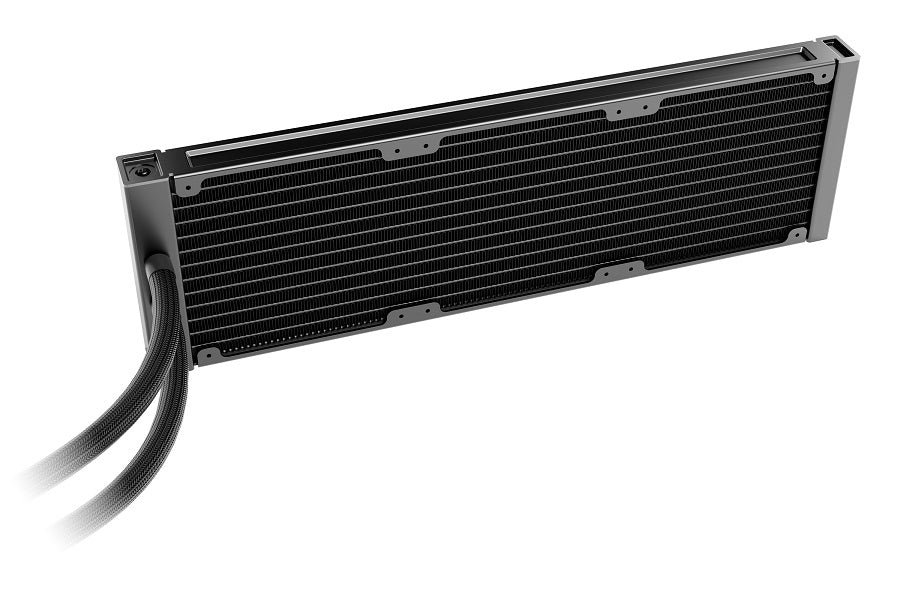

• Dimensions (L x W x H), (mm): 457 x 140 x 27
• Radiator material / finish: aluminum / black spray painted
• Base material / finish: copper / nickel plating

Fan specifications

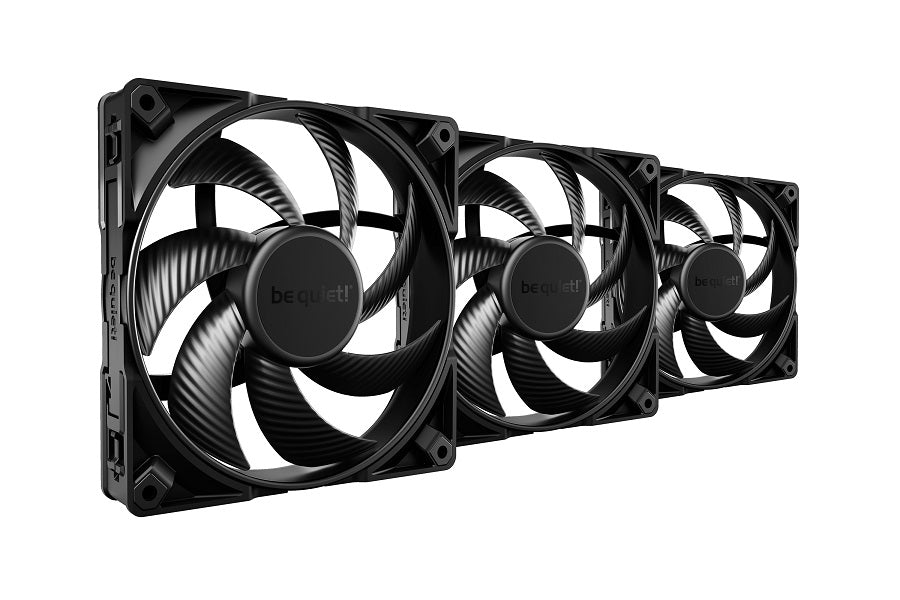

• Fan model: Silent Wings 4 140mm PWM
• Fan dimensions (mm): 140 x 140 x 25
• Speed at 100% PWM (rpm): 1900
• Airflow at 100% PWM / 12V (CFM / m3/h): 78.4 / 133.2
• Air Pressure at 100% PWM / 12V (mm H2O): 2.36
• Bearing technology: FDB
• Motor technology: 6-pole fan motor
• Rated Voltage (V): 12
• Input current (A): 0.30
• Safety current (A): 0.40
• Input power (W): 3.6
• Connector: 4-pin PWM
• Cable length (mm): 500
• Lifespan (h / 25oC): 300,000
• Accessories
• Thermal grease (Type): Included
• Mounting set: Intel, AMD
• Adapter cables: Y-cable
• Bottle of coolant (ml): Yes / 100
• User manual languages: CN, DE, EN, ES, FR, JP, PL, RU, TW, UA
• Safety certifications
• Approvals: CE, FCC, UKCA
• Environmental directives
• RoHS: Yes
• WEEE: Yes
• Triman: Yes
