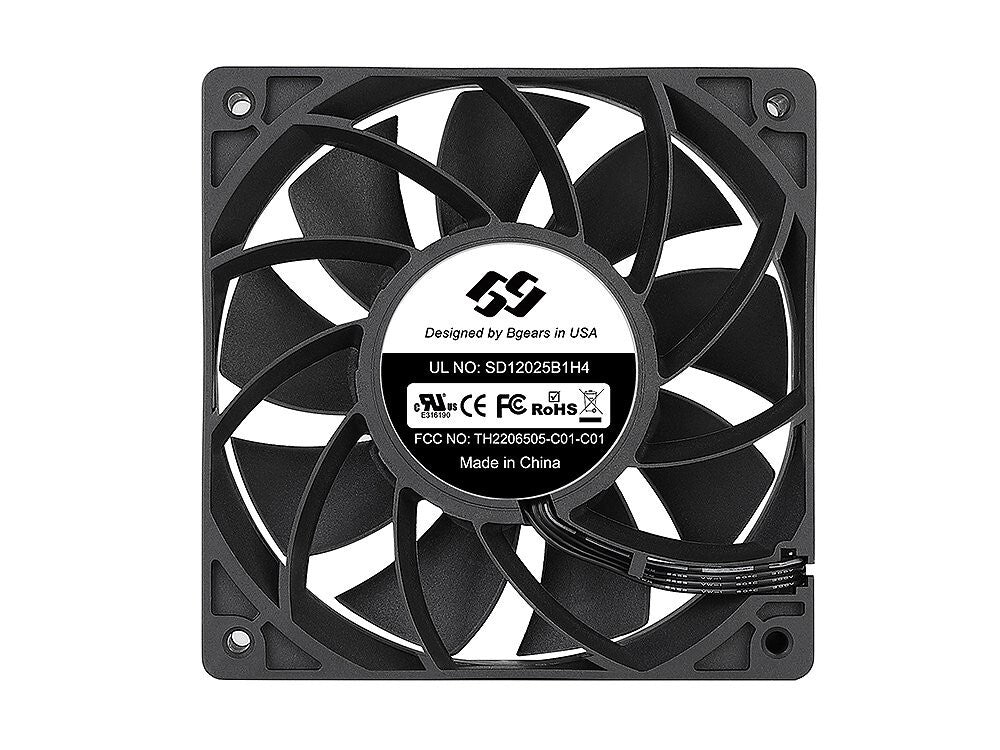

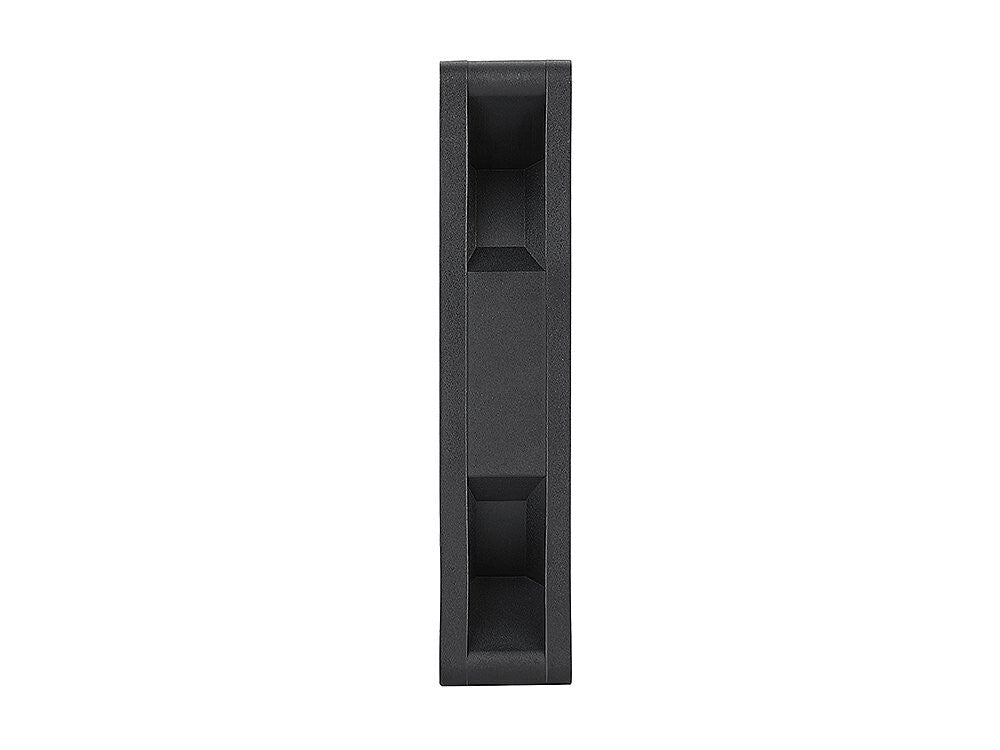

Bgears B-BLASTERPWM 120 120mm 2 ball bearing PWM fan with speed range from 1000

MPN: B-BLASTERPWM 120

Main Features

• Feature
• PWM Fan Speed Control Function Design for On Demand Cooling Performance
• Bigger Speed Range Designed for Better and Precise On Demand Cooling Need
• Massive Airflow of Up To 318 CFM
• Japanese 2 Ball Bearing Designed for Greater Stability at High Speed, and for Higher Performance with Extended Lifespan
• Certified By: UL, FCC, CE, RoHS, WEEE, REACH
• b-BlasterPWM Series 120mm
• Speed(RPM): 1000 to 5000RPM+/-10%
• Current(A): 1.2+/-0.1A
• Power(W): 14.4
• Airflow(CFM): 203
• Airflow (CFM): minimum 21.5
• Static Pressure (at zero flow for pwm): 1.7mmH2O
• Static Pressure (max for pwm): 13.0mmH2O
• Rated Voltage(V): 12
• Operating Voltage Range(V): 10.8~13.8
• Noise Level at Max Speed(dbA): 50.5
• Operating Temperature: -10°C~+70°C
• Storage Temperature: -20°C~+75°C
• Frame Size(mm): 120x120x25
• Weight: 258g
• Bearing: 2 Ball (Japanese ball bearing)
• PWM Connector Mini 4 pin 4 wires
• Life Expectancy: 60000
• LED: None
