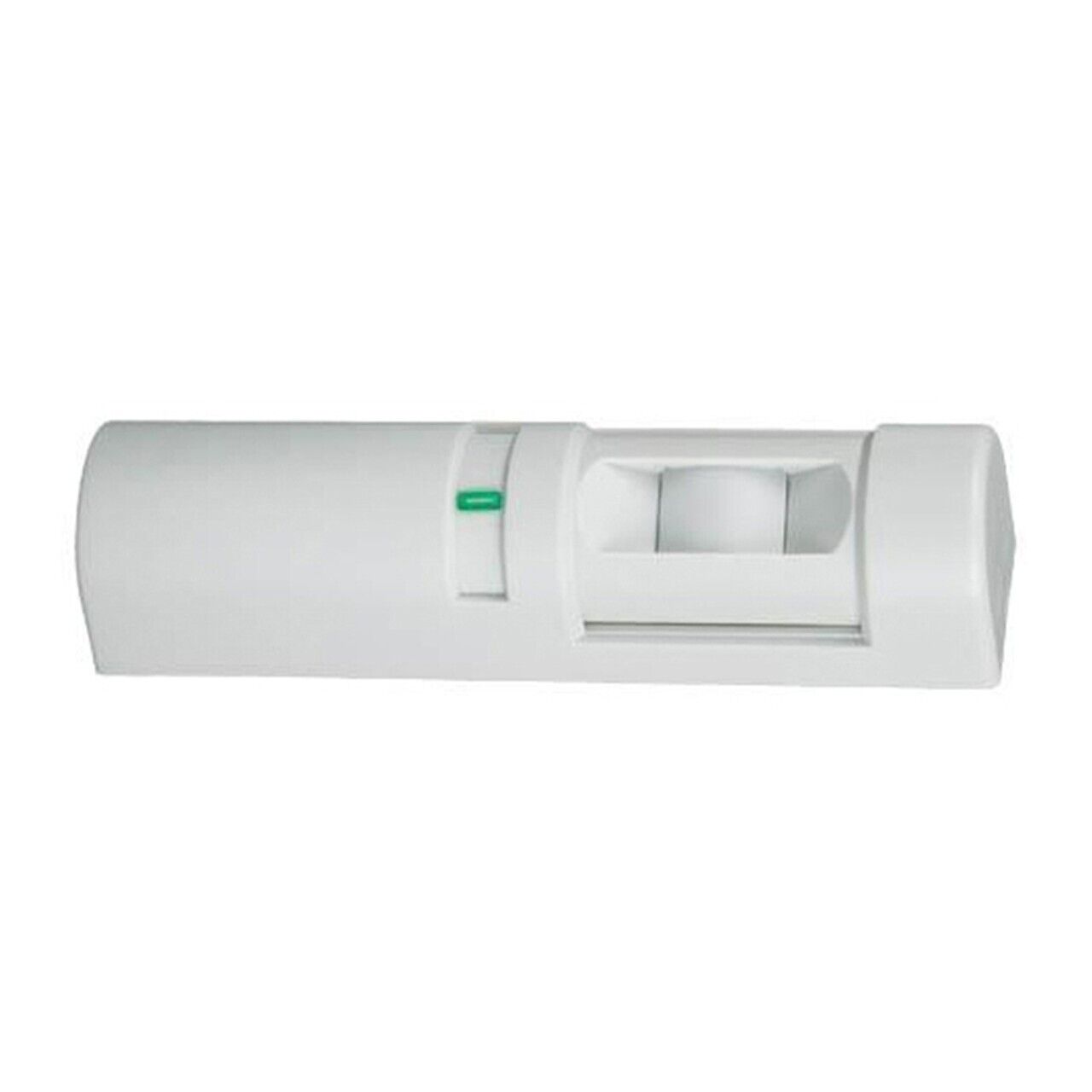

Bosch DS150I Request-to-Exit Motion Sensor, Light Gray

• Single or double door use
• Wall or ceiling mountable
• Internal vertical pointability
• Wrap-around coverage pattern
• Selectable relay trigger mode
• Selectable fail safe/fail secure modes

General Information

• Brand Name: Bosch
• Manufacturer: The Bosch Group
• Manufacturer Part Number: DS150I
• Product Model: DS150I
• Product Name: Request-to-exit Sensor
• Product Series: DS150i
• Product Type: Motion Sensor
• Weight (Approximate) (g): 181.437

Technical Information

• Connectivity Technology: Wired
• Material: ABS
• Maximum Motion Sensing Distance: 10 ft
• Maximum Motion Sensing Distance (mm): 3048
• Maximum Time Delay: 1 Minute
• Maximum Time Delay (Second): 60
• Minimum Motion Sensing Distance: 96"
• Minimum Motion Sensing Distance (mm): 2438.4
• Passive Infrared Sensor (PIR): Yes

Physical Characteristics

• Application/Usage: Residential/Commercial
• Color: Gray
• Depth: 3.8"
• Depth (mm): 96.52
• Form Factor: Ceiling Mount, Wall Mount
• Height: 3.8"
• Height (mm): 96.52
• Weight (Approximate): 6.40 oz
• Width: 15.9"
• Width (mm): 403.86

Power Description

• Input Voltage: 24V DC
• Input Voltage (V DC): 24
• Power Source: DC Power

Product Information

• Mount Type: Ceiling Mount, Surface mount, Wall mount

Miscellaneous

• Compatibility
• Request-to-EXit (REX) applications
