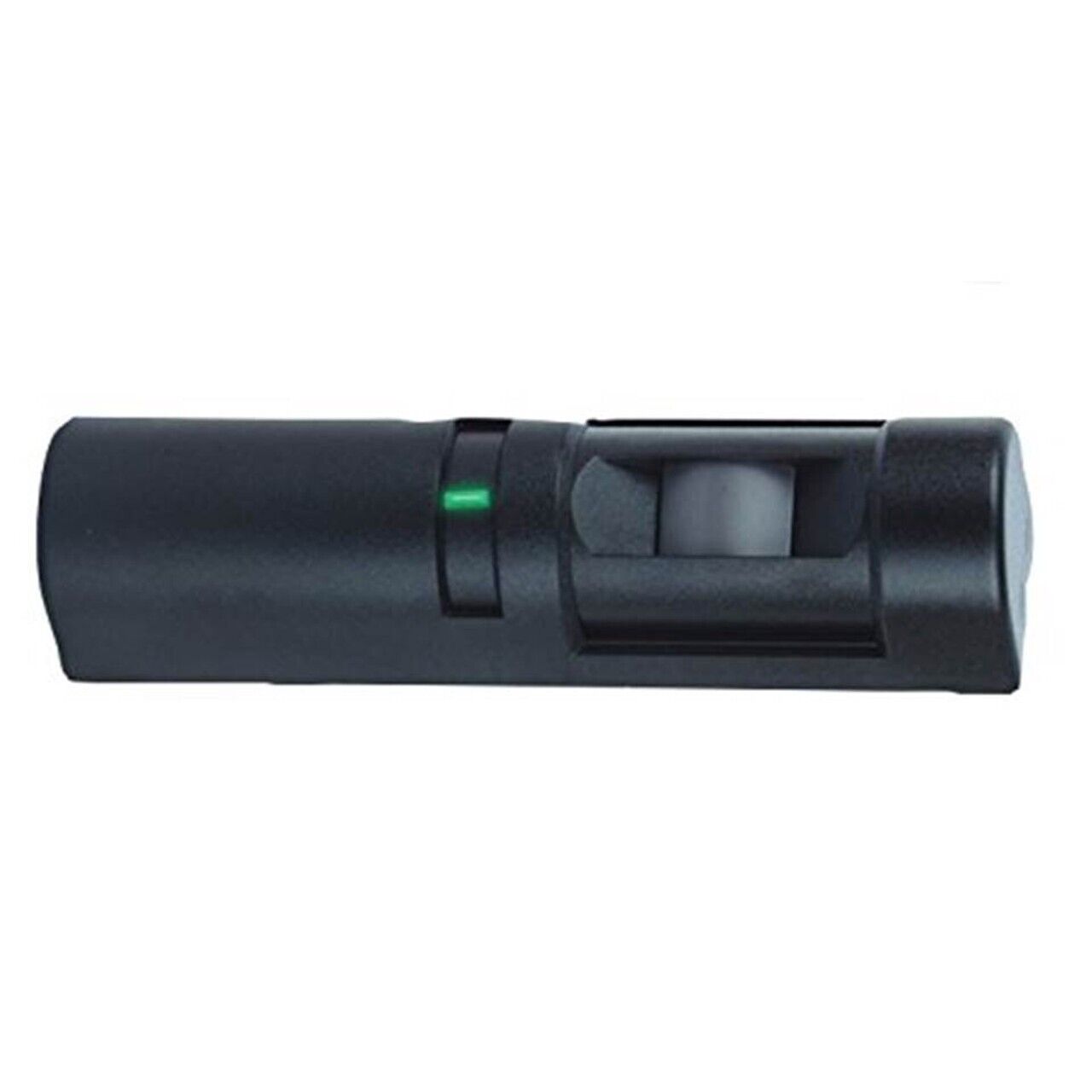

Bosch DS151I Request-to-Exit Motion Sensor, Black

• Single or double door use
• Wall or ceiling mountable
• Internal vertical pointability
• Wrap-around coverage pattern
• Selectable relay trigger mode
• Selectable fail safe/fail secure modes

General Information

• Brand Name: Bosch
• Manufacturer: The Bosch Group
• Manufacturer Part Number: DS151I
• Packaged Quantity: 1
• Product Model: DS151i
• Product Name: Request-to-exit Sensor, Black
• Product Type: Motion Sensor
• Weight (Approximate) (g): 9.072

Technical Information

• Connectivity Technology: Wireless
• Material: ABS
• Maximum Motion Sensing Distance: 10 ft
• Maximum Motion Sensing Distance (mm): 3048
• Minimum Motion Sensing Distance: 96"
• Minimum Motion Sensing Distance (mm): 2438.4
• Passive Infrared Sensor (PIR): Yes
• Wireless Technology: Infrared

Physical Characteristics

• Application/Usage: Commercial
• Color: Black
• Depth: 1.5"
• Depth (mm): 38.1
• Height: 1.5"
• Height (mm): 38.1
• Weight (Approximate): 0.32 oz
• Width: 6.3"
• Width (mm): 158.75

Power Description

• Input Voltage: 12V DC, 24V DC
• Input Voltage (V DC): 12, 24
• Power Source: DC Power

Product Information

• Mount Type: Ceiling Mount, Surface Mount, Wall Mount

Miscellaneous

• Certifications & Standards
• UL 294 Listed
