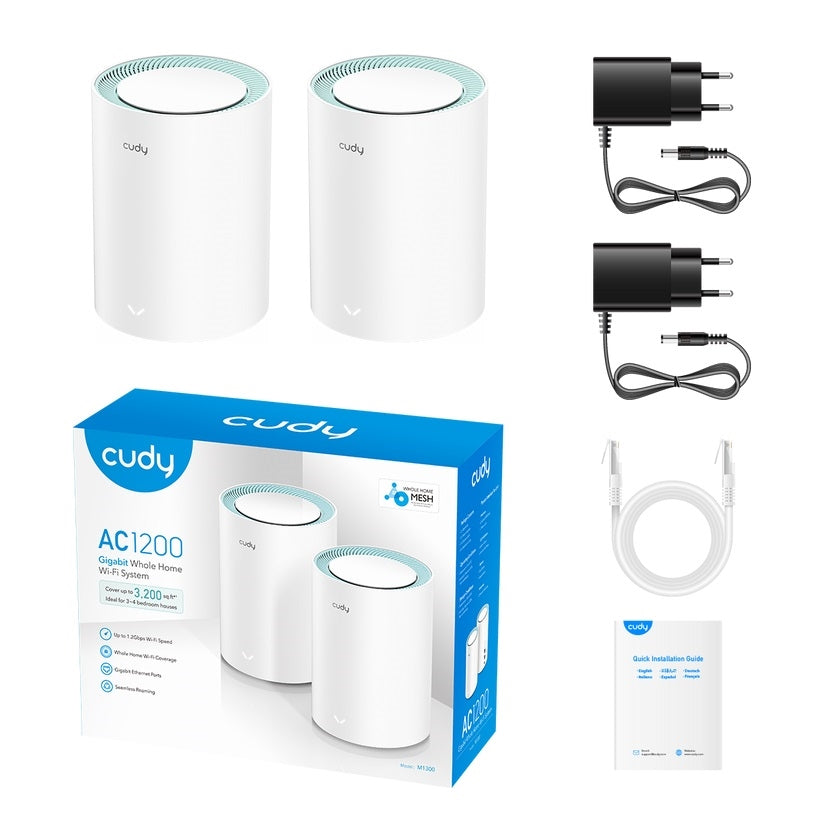

Cudy M1300(2-Pack) AC1200 Gigabit Mesh Wi-Fi System 2-Pack Retail

Marketing Information

AC1200 Gigabit Mesh Wi-Fi System

M1300(2-PACK)

A mesh WiFi system ideal for large homes with 4K streaming and gaming demands, Installation is easy—set up one unit and auto-sync the rest.

• 4-Stream Dual-Band Wi-Fi 5
• 867 Mbps + 300 Mbps Wi-Fi
• 2× Gigabit Ethernet Ports
• Fast Roaming
• MU-MIMO, Beamforming
• Cudy Mesh, VPN Server and Client
• Multi-Band Simultaneous Backhaul
• Cudy App, Cloud Control

Note:

1. Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors including building layout, obstacles, and client location.

2. Use of MU-MIMO requires the client devices to also support MU-MIMO.

Detail Specifications

• CPU
• CPU Details: 880 MHz Dual-Core, MIPS1004Kc
• Memory/Storage
• Flash/ROM: 16 MB (128 Mbit) NOR
• DDR/RAM: 128 MB (1 Gbit) DDR3
• Wireless
  • 5 GHz Wi-Fi Speed: 867 Mbps
  • 2.4 GHz Wi-Fi Speed: 300 Mbps
  • 5 GHz Wi-Fi Streams: 2T2R (2x2 MIMO)
  • 2.4 GHz Wi-Fi Streams: 2T2R (2x2 MIMO)
• Wi-Fi Antennas: 4x Internal
• 5 GHz Antenna Gain Max: 6.04dBi
• 2.4 GHz Antenna Gain Max: 4.22dBi
• FEM or PA/LNA
  • 5 GHz: 2x Internal
  • 2.4 GHz: 2x Internal
• Beamforming: True
• Range Performance
• Max: 170 m (558 ft)
• Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
• Wall Performance
  • Two wooden walls with thickness < 10 cm (4)
  • One concrete wall with thickness < 20 cm (7)
• Indoor Coverage Reference
  • 2 Pack: 160 m (1700 sq ft)
  • Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of two obstacles to each room.
• Interfaces
• Gigabit RJ45 Ports: 2
• Ethernet Notes
• Port 1 is the WAN port by default. All ports are LAN ports in Mesh satellite mode
• LED
• System
• Speed/Link/ACT of Ethernet Port
• Physical Buttons
  • WPS Button
  • Reset Button
• Power Input
• DC Jack
• Power
• Power Methods: DC
• DC: 12V 1A
• Power Adapter:
• Input: 100 to 240 V, 50/60 Hz AC
• Output: 12V 1A DC

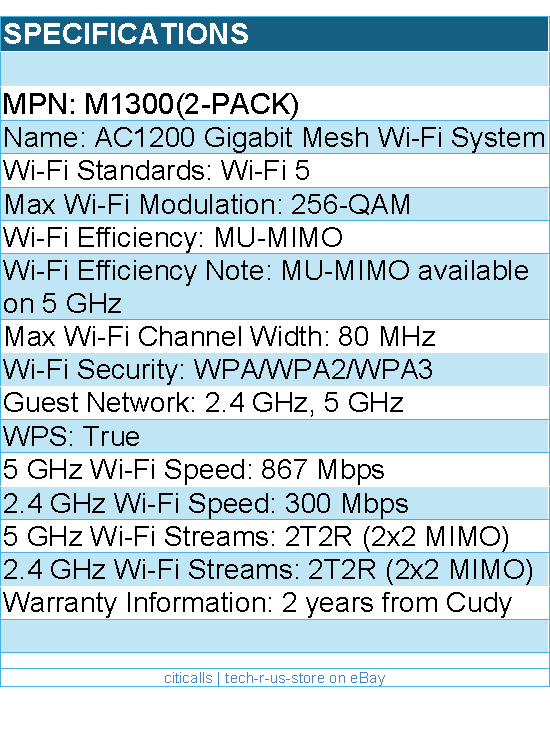

Wireless

• Wi-Fi Standards: Wi-Fi 5
• Max Wi-Fi Modulation: 256-QAM
• Wi-Fi Efficiency: MU-MIMO
• Wi-Fi Efficiency Note: MU-MIMO available on 5 GHz
• Max Wi-Fi Channel Width: 80 MHz
• Wi-Fi Security: WPA/WPA2/WPA3
• Guest Network: 2.4 GHz, 5 GHz
• WPS: True
• 5 GHz Wi-Fi Speed: 867 Mbps
• 2.4 GHz Wi-Fi Speed: 300 Mbps
• 5 GHz Wi-Fi Streams: 2T2R (2x2 MIMO)
• 2.4 GHz Wi-Fi Streams: 2T2R (2x2 MIMO)

Warranty Information

• 2 years from Cudy

Shipping Notes:

All our products are normally shipped within 1-2 business days from any of our warehouse locations below:

• Monrovia, CA 91016 (Most usual)
• Fremont, CA 94538
• Richardson, TX 75018
• Duluth, GA 30096
• Itasca, IL, 60143
• Edison, NJ 08837

Shipping to Alaska, Guam, Puerto Rico, and all International orders may take an additional 2 to 3 days to process documentation.

California Prop 65 Warning. This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

…JA-2509
