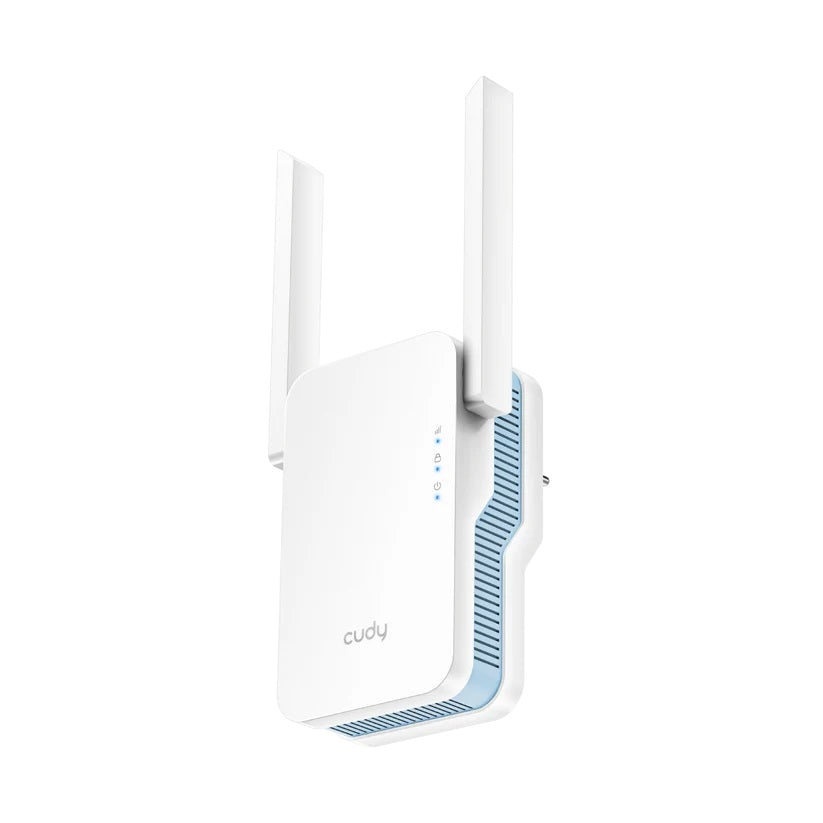

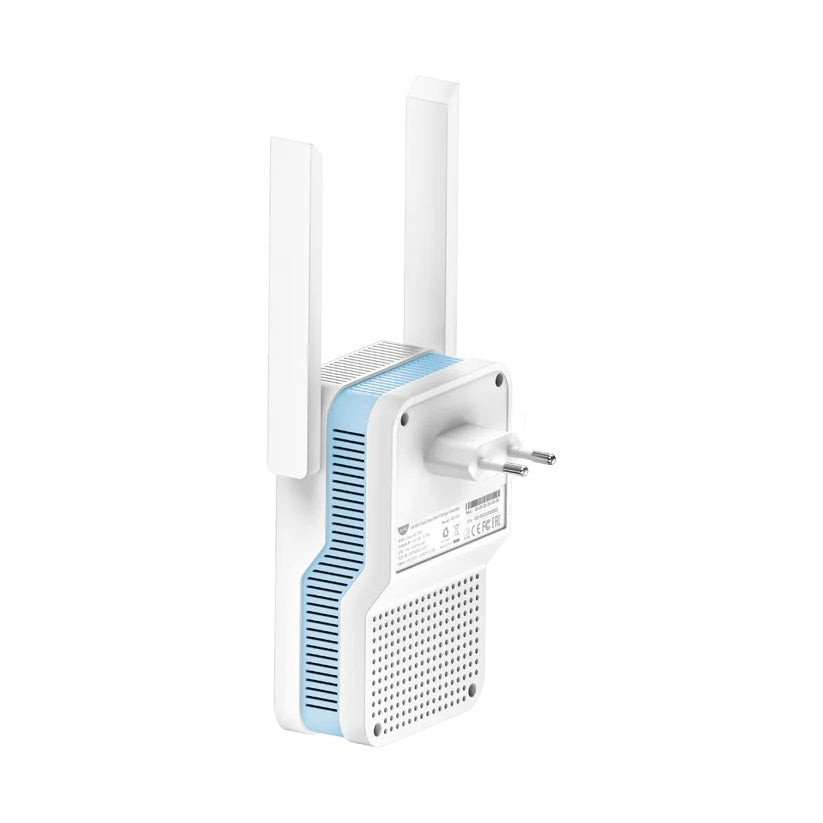

Cudy RE1200 AC1200 Mesh Wi-Fi Range Extender - Dual-Band - Retail

Marketing Information

AC1200 Mesh Wi-Fi Range Extender

RE1200

A range extender featuring AC1200 WiFi and an Ethernet port. Press its WPS buttons to expand the existing Wi-Fi instantly.

• Works with Any Wi-Fi Router
• Dual-Band Wi-Fi 5
• 1x Fast Ethernet Port
• 30 Connected Devices
• Cudy Mesh Satellite
• Multi-Band Simultaneous Backhaul
• Ethernet Backhaul

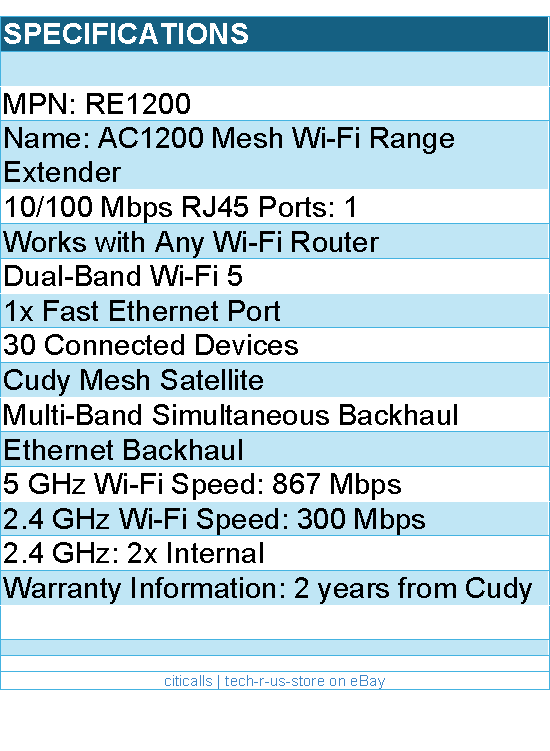

Detail Specifications

• Model Version: RE1200
• CPU
• Chipset: MT7628A+MT7613B
• CPU Details: 580 MHZ Single-Core, MIPS24KEC
• Memory/Storage
• Flash/ROM: 8 MB (64 Mbit ) NOR
• DDR/RAM: 64 MB (512 Mbit) DDR2
• Wireless
  • 5 GHz Wi-Fi Speed: 867 Mbps
  • 2.4 GHz Wi-Fi Speed: 300 Mbps
  • 5 GHz Wi-Fi Streams: 2T2R (2x2 MIMO)
  • 2.4 GHz Wi-Fi Streams: 2T2R (2x2 MIMO)
• Wi-Fi Antennas: 2x Fixed
• FEM or PA/LNA:
  • 5 GHz: 2x Internal
  • 2.4 GHz: 2x Internal
• Range Performance:
  • Max: 150 m (492 ft)
  • Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
• Wall Performance:
  • Two wooden walls with thickness < 10 cm (4)
  • One concrete wall with thickness < 20 cm (7)
• Interfaces
• 10/100 Mbps RJ45 Ports: 1
• LED:
  • Signal Strength
  • WPS
  • Power
• Physical Buttons:
  • WPS Button
  • Reset Button
• Power Input: AC Plug
• Power Input Note: EU, US, UK plug are available on corresponding region versions
• Power
• Power Methods: AC
• AC: 110V - 220V
• Reliability
• Environment:
  • Operating Temperature: 0 oC - 50 oC (32 oF 122 oF)
  • Storage Temperature: -40 oC - 70 oC (-40 oF - 158 oF)
  • Operating Humidity: 10% - 90% non-condensing
  • Storage Humidity: 5% - 90% non-condensing
• Certifications: FCC, CE
• Mechanical
• Install in a Daisy Chain: Recommend to install less than 3 repeaters in a wireless chain.
• Installation: Plug-In-Socket
• Casing Material: Plastic

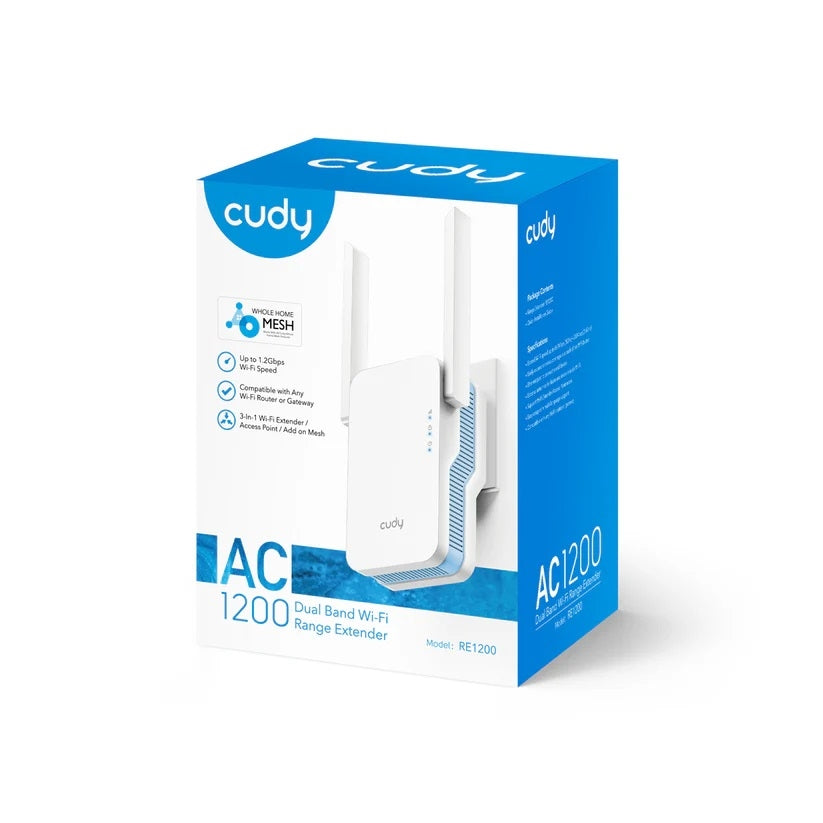

• Package Content
  • RE1200
  • Installation Guide
