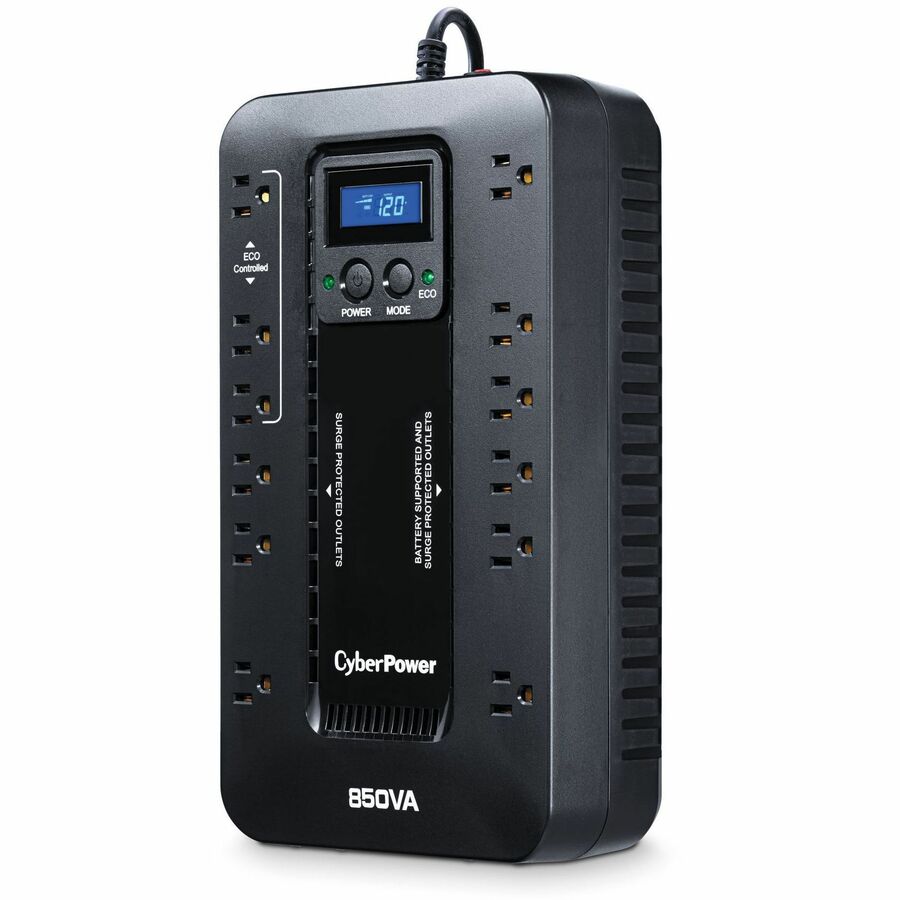

CyberPower EC850LCD Ecologic UPS Systems - 850VA/510W, 120 VAC - NEMA 5-15P

General Information

• Manufacturer: CyberPower Systems, Inc
• Brand Name: CyberPower
• Manufacturer Part Number: EC850LCD
• Product Series: Ecologic UPS
• Product Model: EC850LCD
• Product Name: Ecologic UPS EC850LCD 850VA Compact UPS
• Product Type: Standby UPS

Marketing Information:

• A compact UPS with standby topology, the CyberPower Ecologic EC850LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During power interruptions, the EC850LCD offers reliable power protection and battery backup. When the battery backup detects that the computer is off or in sleep mode, computer peripherals connected to the ECO Mode, surge protected outlets will be automatically turned off, reducing power usage and lowering energy costs (USB connection required). The multifunction LCD provides immediate, detailed information about the UPS battery and power conditions and generates alerts of potential problems before they can affect critical equipment and cause downtime.

Technical Information

• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R
• Receptacle Detail: 12 x NEMA 5-15R
• Number of Battery & Surge Outlets: 6
• Number of Surge-only Outlets: 6
• Overload Protection: Yes
• Cord Length: 5 ft
• Transfer Time: 4 ms
• EMI/RFI Noise Filter: Yes
• Energy Saving: GreenPower UPS™ High-Efficiency
• Application/Usage:
• Desktop Computer
• Workstation
• Network Device
• Home Entertainment System
• Computer Peripheral
• Home Theater
• Equipment
• Personal Electronic
• Home Network
• Router
• Modem
• VoIP Phone
• Surge Suppression: Yes
• Features: Audible Alarm

Power Description

• Load Capacity (VA): 850 VA
• Load Capacity (Watt): 510 W
• Input Voltage: 120 V AC
• Output Voltage: 120 V AC
• Input Frequency:
• 47 Hz
• 63 Hz
• Output Frequency:
• 60 Hz
• 50 Hz
• Waveform Type: Simulated Sine Wave
• Surge Energy Rating: 526 J
• Circuit Breaker:Yes
• Output Power Factor: 0.6

Display & Graphics

• Display: LCD
• Management
• Alarm:
• Battery Mode
• Low Battery
• Overload
• Controls/Indicators
• Status Indicators:
• LED Indicators:
• Power On
• ECO On/Of

Interfaces/Ports

• USB: Yes
• USB (HID Compliant) Port: Yes

Battery Information

• Number of Batteries: 1
• Battery Characteristics: Sealed
• Battery Chemistry: Lead Acid
• Battery Size: 12V
• Backup/Run Time (Full Load): 2.30 Minute
• Backup/Run Time (Half Load): 7.90 Minute
• Typical Battery Recharge Time: 8 Hour
• Replaceable Battery: Yes

Environmental Conditions

• Minimum Operating Temperature: 32°F (0°C)
• Maximum Operating Temperature: 104°F (40°C)
• Storage Temperature: 5°F (-15°C) - 113°F (45°C)
• Maximum Operating Elevation: 10000 ft
• Maximum Storage Elevation: 50000 ft
• Operating Humidity: 0% - 90%
• Storage Relative Humidity: 0% - 95%

Physical Characteristics

• Color Family: Black
• Product Color: Black
• Height: 3.1"
• Width: 12.2"
• Depth: 7"
• Form Factor: Compact
• Weight (Approximate): 7.69 lb

Miscellaneous

• Additional Information:
• Field-serviceable Battery : Replaceable by qualified technician
• Plug Style : Right Angle - 45° Offset
• On Battery Frequency : 50/60 Hz ± 1% (auto-sensing)
• On Battery Voltage : 120 VAC ± 5%
• Outlets - Eco Controlled : 3
• Outlets - Widely Spaced : 4
• Software (Free Download) : PowerPanel® Personal

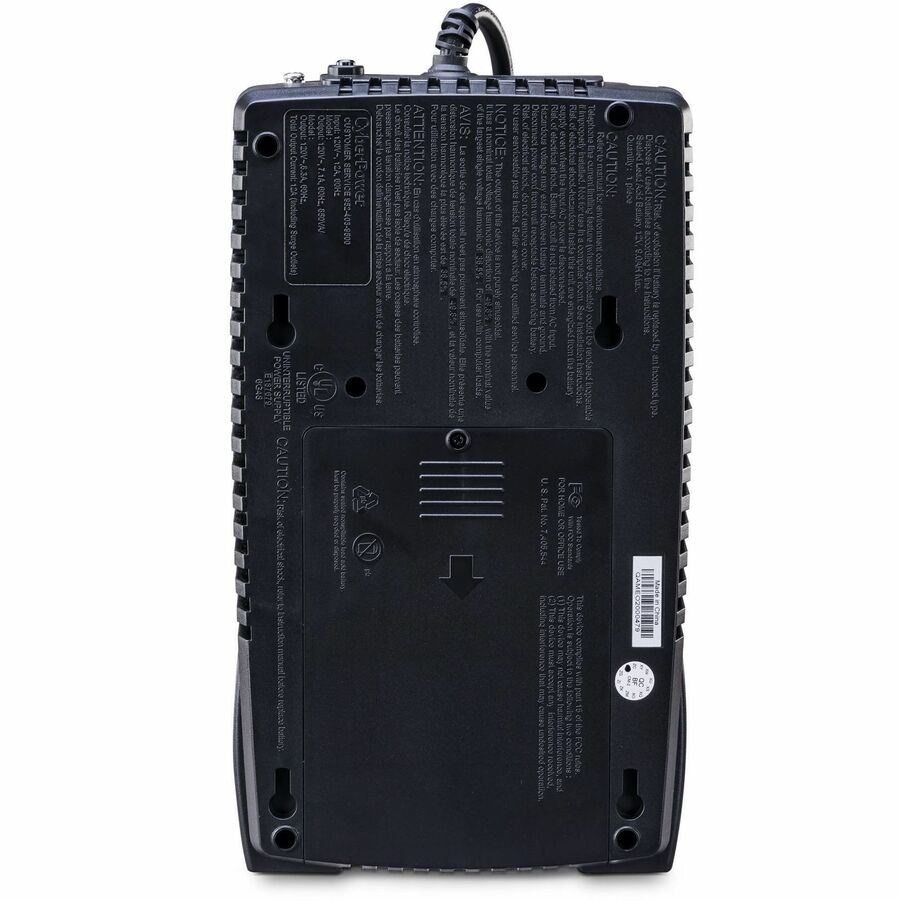

• Keyhole Mounting Slots : Yes
• Operating Relative Humidity : 0 - 90 % (non-condensing)
• Certifications & Standards:
• UL1778
• FCC Part 15 Class B
• CSA C22.2 No. 107.3-05
• FCC DOC Class B
• Energy Star: Yes
• Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

• Limited Warranty: 3 Year from CyberPower
