CyberPower OL1000RTXL2UN Smart App Online UPS Systems - 1000VA/900W, 100 - 125 V

General Information

• Manufacturer: CyberPower Systems, Inc
• Manufacturer Part Number: OL1000RTXL2UN
• Brand Name: CyberPower
• Product Series: Smart App Online UPS
• Product Model: OL1000RTXL2UN
• Product Name: OL1000RTXL2UN Smart App Online UPS Systems

Marketing Information:

• Prevent business interruptions and safeguard mission-critical enterprise network equipment.
• The CyberPower OL1000RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.
• The OL1000RTXL2UN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.

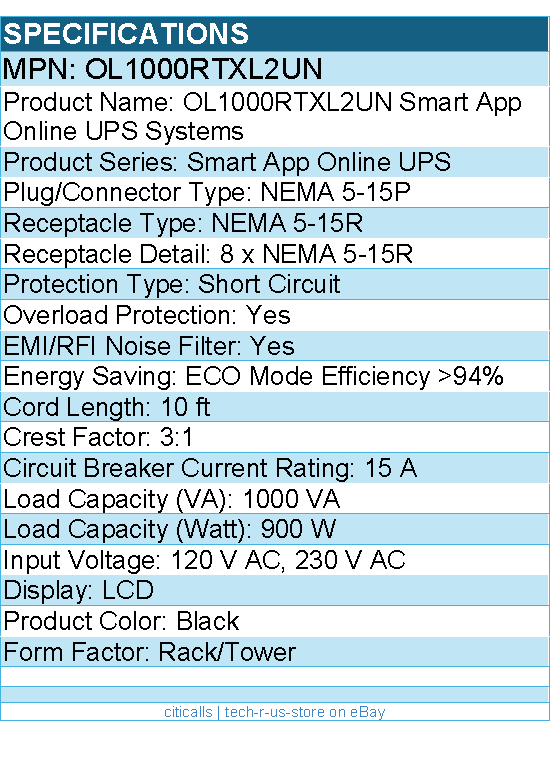

Technical Information

• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R
• Receptacle Detail: 8 x NEMA 5-15R
• Transfer Time: 0 ns
• Dataline Protection:
• RJ-11
• RJ-45
• Protection Type: Short Circuit
• Overload Protection: Yes
• EMI/RFI Noise Filter: Yes
• Energy Saving: ECO Mode Efficiency >94%

Application/Usage:

• Mission Critical Equipment
• Generator
• Cord Length: 10 ft
• Crest Factor: 3:1
• Circuit Breaker Current Rating: 15 A

Power Description

• Load Capacity (VA): 1000 VA
• Load Capacity (Watt): 900 W
• Input Voltage:
• 120 V AC
• 230 V AC
• Input Voltage Range:
• 60 V AC - 69 V AC
• 100 V AC - 125 V AC
• Output Voltage:
• 125 V AC
• 100 V AC
• 110 V AC
• 115 V AC
• 120 V AC
• Input Frequency:
• 40 Hz
• 70 Hz
• Output Frequency:
• 50 Hz
• 60 Hz
• Waveform Type: Sine Wave
• Surge Energy Rating: 1780 J
• Input Power Factor: 0.99
• Output Power Factor: 0.9

Display & Graphics

• Display: LCD

Management

• Network Management:
• Dry Contact
• Relay Card
• SNMP Manageable
• Alarm:
• Battery Mode
• Low Battery
• Overload
• UPS Fault

Controls/Indicators

• Status Indicators:
• LED Indicators:
• Power On (White)
• Line Mode (Green)
• Battery Mode (Yellow)
• Bypass Mode (Yellow)
• Fault (Red)
• Replace Battery (Red)

Interfaces/Ports

• Serial Port: Yes
• Network (RJ-45): Yes
• USB: Yes
• USB (HID Compliant) Port: Yes
• EPO Port: Yes

Battery Information

• Number of Batteries: 3
• Battery Characteristics: Sealed
• Battery Chemistry: Lead Acid
• Battery Size: 12V
• Battery Capacity: 9000 mAh
• Backup/Run Time (Full Load): 8 Minute
• Backup/Run Time (Half Load): 21 Minute
• Typical Battery Recharge Time: 4 Hour
• Replaceable Battery: Yes
• Environmental Conditions
• Maximum Operating Temperature: 104°F (40°C)
• Storage Temperature: -4°F (-20°C) - 113°F (45°C)
• Maximum Operating Elevation: 10000 ft
• Maximum Storage Elevation: 50000 ft
• Operating Humidity: 0% - 90%
• Storage Relative Humidity: 0% - 95%
• Sound Emission (A-Weighted): 55 dB(A)
• Thermal Dissipation: 80.30 W

Physical Characteristics

• Color Family: Black
• Product Color: Black
• Form Factor: Rack/Tower

Warranty

• Limited Warranty: 3 Year from CyberPower

Shipping Notes:

All our products are normally shipped within 1-2 business days from any of our warehouse locations below:

• Monrovia, CA 91016 (Most usual)
• Fresno, CA 93725
• Newman, GA 30265
• Bolingbrook, IL
• Middletown, PA 17057
• Harrisburg PA 17112

International orders may take an additional 2 to 3 days.

California Prop 65 Warning. This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
