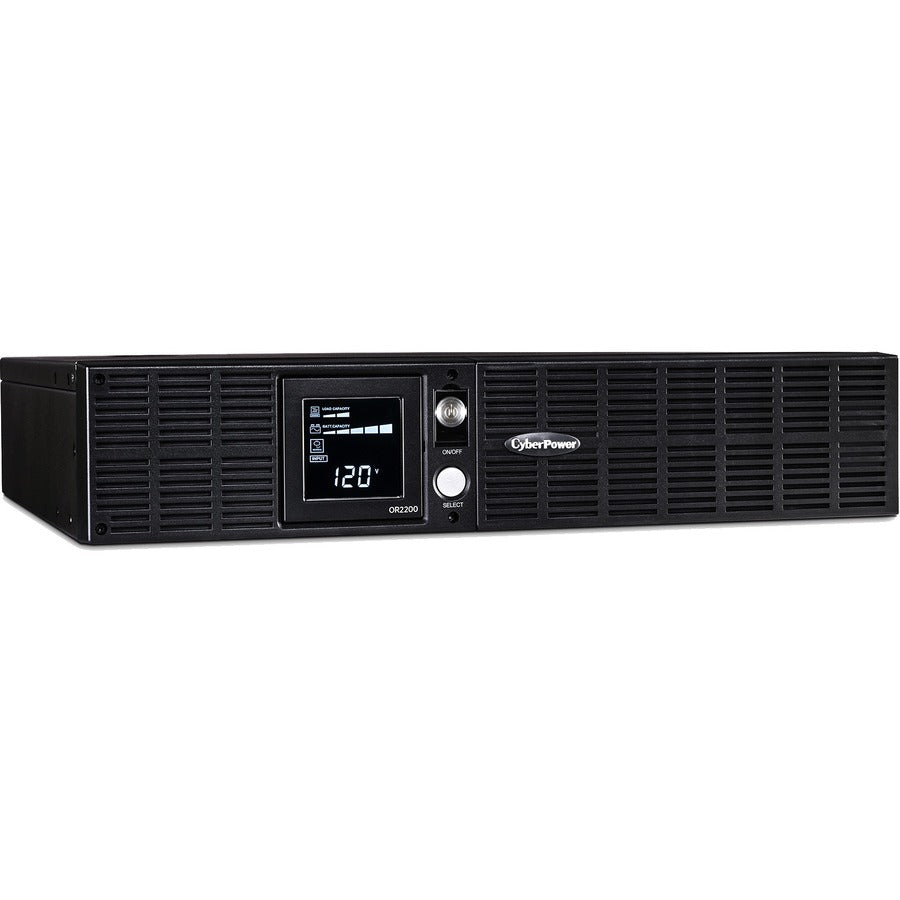

CyberPower OR2200LCDRT2U Smart App LCD UPS Systems - 2000VA/1320W, 120 VAC

General Information

• Manufacturer: CyberPower Systems, Inc
• Brand Name: CyberPower
• Manufacturer Part Number: OR2200LCDRT2U
• Product Series: Smart App LCD UPS
• Product Model: OR2200LCDRT2U
• Product Name: OR2200LCDRT2U Smart App LCD UPS Systems
• Product Type: Line-interactive UPS

Marketing Information:

• A rack/tower convertible UPS with line interactive topology, the CyberPower Smart App LCD OR2200LCDRT2U provides battery backup (using simulated sine wave output) and surge protection for office servers, corporate and department networks, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR2200LCDRT2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.

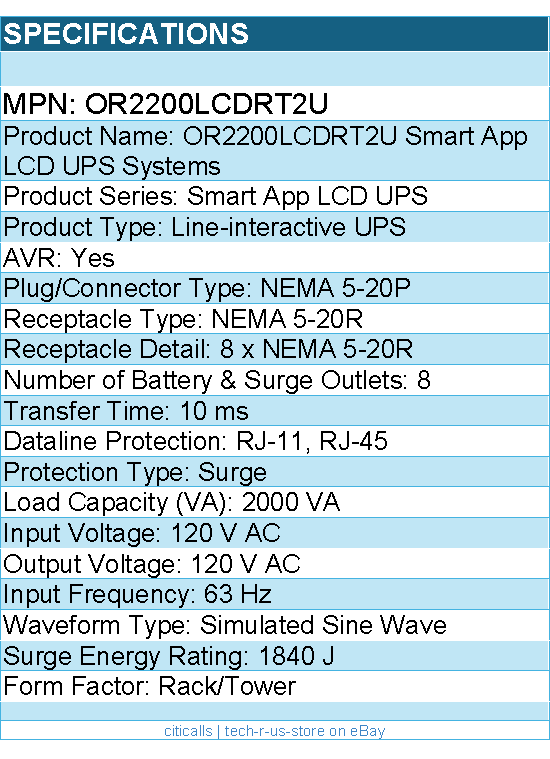

Technical Information

• AVR: Yes
• Plug/Connector Type: NEMA 5-20P
• Receptacle Type: NEMA 5-20R
• Receptacle Detail: 8 x NEMA 5-20R
• Number of Battery & Surge Outlets: 8
• Transfer Time: 10 ms
• Dataline Protection:
  • RJ-11
  • RJ-45
• Protection Type: Surge
• Overload Protection: Yes
• EMI/RFI Noise Filter: Yes
• Energy Saving: GreenPower UPS™ Bypass Technology

Power Description

• Load Capacity (VA): 2000 VA
• Input Voltage: 120 V AC
• Output Voltage: 120 V AC
• Input Frequency: 63 Hz
• Waveform Type: Simulated Sine Wave
• Surge Energy Rating: 1840 J

Management

• Network Management: SNMP Manageable
• Alarm: Battery Mode

Controls/Indicators

• Status Indicators:
• LCD : Multifunction LCD

Interfaces/Ports

• Serial Port: Yes
• Modem (RJ-11): Yes
• Network (RJ-45): Yes
• USB (HID Compliant) Port: Yes

Battery Information

• Number of Batteries: 4
• Battery Chemistry: Lead Acid
• Battery Size: 12V
• Battery Capacity: 9000 mAh
• Backup/Run Time (Full Load): 5 Minute
• Backup/Run Time (Half Load): 13 Minute
• Typical Battery Recharge Time: 8 Hour
• Replaceable Battery: Yes

Environmental Conditions

• Maximum Operating Temperature: 104°F (40°C)

Physical Characteristics

• Color Family: Black
• Product Color: Black
• Form Factor: Rack/Tower
• Rack Height: 2U

Miscellaneous

• Package Contents:
  • Smart App Intelligent LCD OR2200LCDRT2U 2200VA UPS LCD RT
  • PowerPanel Business Edition Software
  • User Manual
  • USB Cable
  • Serial Cable
  • Registration Card

Certifications & Standards:

• UL1778
• cUL 107.1
• FCC DOC Class B
• CSAC22.2
• Software Included:
• PowerPanel Business Edition UPS Management
• Energy Star: Yes
• Country of Origin: China
• Environmentally Friendly: Yes
• Environmental Compliance:
• Restriction of Hazardous Substances (RoHS)

Warranty

• Limited Warranty: 3 Year from CyberPower
