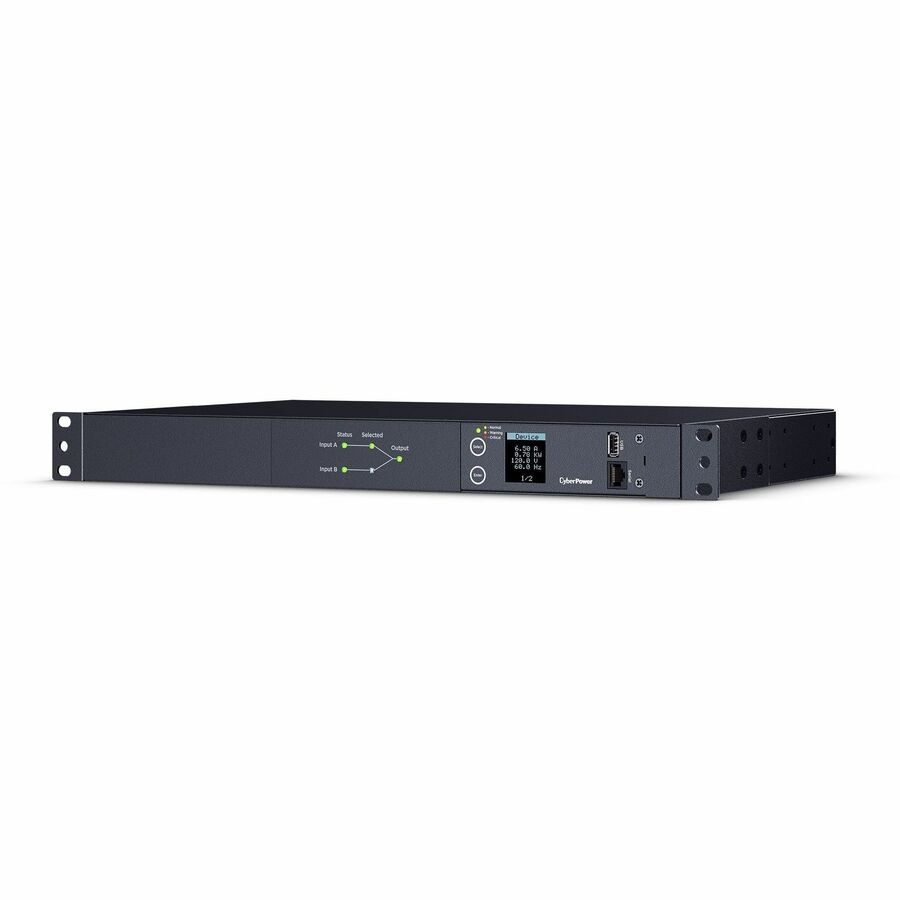

CyberPower PDU24001 Single Phase 100 - 120 VAC 15A Metered ATS PDU - 10 Outlets
Couldn't load pickup availability
CyberPower PDU24001 Single Phase 100 - 120 VAC 15A Metered ATS PDU - 10 Outlets





CyberPower PDU24001 Single Phase 100 - 120 VAC 15A Metered ATS PDU - 10 Outlets
General Information
- Manufacturer: CyberPower Systems, Inc
- Brand Name: CyberPower
- Manufacturer Part Number: PDU24001
- Product Model: PDU24001
- Product Name: Metered ATS PDU PDU24001 10-Outlets PDU
- Product Series: Switched ATS PDU
- Product Type: PDU
Interfaces/Ports
- Network (RJ-45): Yes
- Management
- Management Protocols:
- IPv4
- TCP
- IP
- UDP
- SNMPv1
- HTTP
- NTP
- DNS
- Telnet
- DHCP
- SMTP
- FTP
- IPv6
- SNMPv3
- HTTPs
- SSH
- SSL
- TLS
- LDAP(S)
- RADIUS
- Syslog
- CLI
- Windows AD
- SNMP
Power Description
- Input Current: 15 A
- Input Frequency 60 Hz
- Environmental Conditions
- Minimum Operating Temperature 32°F (0°C)
- Maximum Operating Temperature 113°F (45°C)
- Minimum Storage Temperature 5°F (-15°C)
- Maximum Storage Temperature 131°F (55°C)
Miscellaneous
- Additional Information
- Cord Length :10 ft (3.0 m)
- Derated Input Current :12 A
- Input Frequency Range :50 Hz - 60 Hz
- Phase :Single Phase
- Plug Style :Straight
- Nominal Output Voltage :100 - 120 VAC
- Outlet Banks :1
- Outlets - Total :10
- Overload Protection :None
- Power Source Transfer Time :2-7 ms
- Source Failure Detection Time :2-3 ms
- Total Transfer Time :<10 ms
- Hardware Connection Port :Serial (RJ45)
- LCD :Multifunction LCD
- LED Indicators :Source Status
- Upgradeable firmware :Yes
- Retention Tray/Cord Organizers :Yes
- External Site Ground Pin :Yes
- Form Factors Supported :1U Rackmount
- Material of Construction :Metal
- Operating Elevation :0 - 13123 ft (0 - 4000 m)
- Operating Relative Humidity :0 - 95 % (non-condensing)
- Operating Temperature :32 - 113 °F (0 - 45 °C)
- Storage Elevation :0 - 49213 ft (0 - 14999 m)
- Storage Temperature :5 - 131 °F (-15 - 55 °C)
- Safety :UL62368 :FCC Class A :cTUVus
- Certifications & Standards
- UL62368 via cTUVus
- FCC Class A
- ICES-003: Issue 7
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)

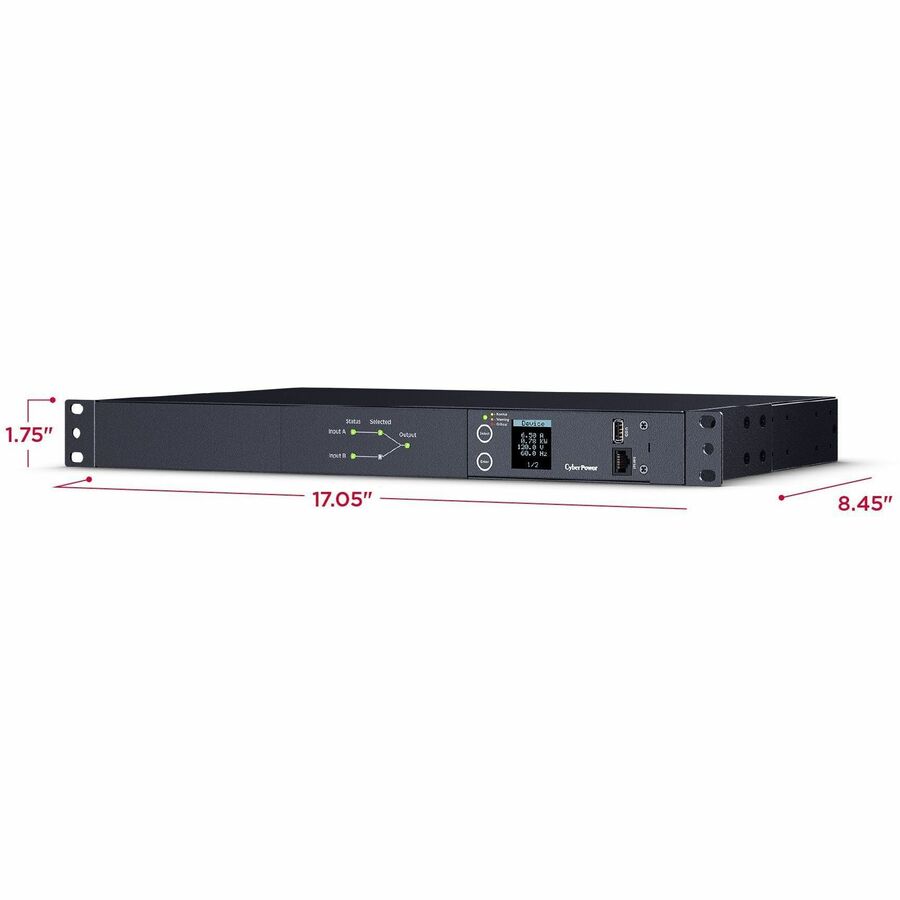

Physical Characteristics
- Rack Height: 1U
- Height: 1.8"
- Width: 17.1"
- Depth: 8.5"
- Mounting Orientation: Horizontal
- Product Color: Black
- Color Family: Black
Technical Information
- Features: LED Status Indicator
- Protection Type: Overload Protection
- Plug/Connector Type: NEMA 5-15P
- Phase: Single Phase
- Receptacle Type: NEMA 5-15R
- Design: Modular
- Locking Receptacles Cord Retention Tray

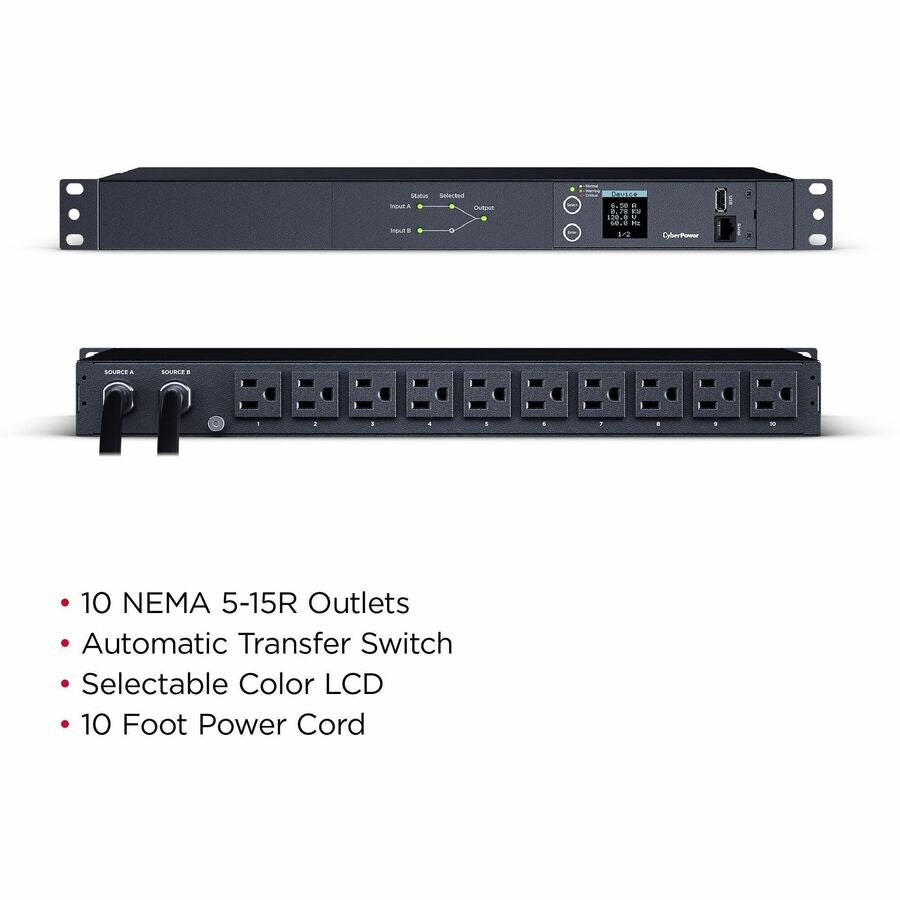

- Receptacle Detail: 10 x NEMA 5-15R
- Plug/Connector Detail: 2 x NEMA 5-15P
