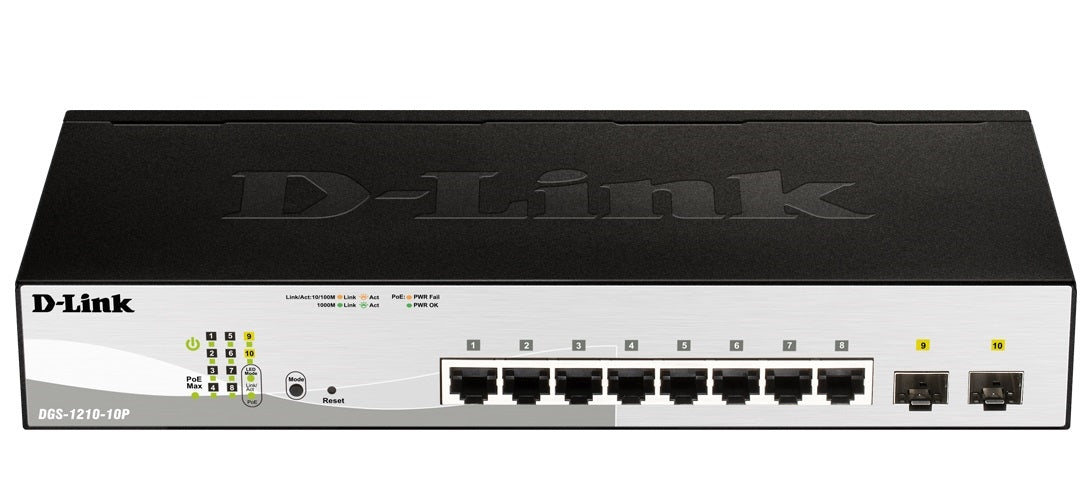

D-Link DGS-1210-10P Smart 8Port Gigabit PoE Switch 2 Combo SFP Retail

Product Information

The D-Link DGS-1210 Series Smart Managed Switches are the latest generation of switches to provide increased Power over Ethernet (PoE) output, a range of physical interface types, multiple management interfaces, and advanced Layer 2 features. With all of these features combined, the DGS-1210 Series provides a cost-efficient and flexible solution for expanding any business network.

The DGS-1210 Series switches support 8, 24, or 48 10/100/1000BASE-T ports. Each switch also supports an additional 2 or 4 Gigabit SFP ports for optical connections using multimode or singlemode SFP transceivers.

PoE Support

Five of the nine models in the DGS-1210 series family support Power-over-Ethernet capabilities, simplifying deployments with IP cameras, VoIP phones, wireless access points, and other powered devices. These models include the DGS-1210-10P, DGS-1210-10MP, DGS-1210-28P, DGS-1210-28MP and DGS-1210-52MP. Using the switch’s management interface, an administrator can control various PoE functions, such as remotely rebooting cameras or access points, from anywhere on the network, including over the Internet.

The switches also support time-based PoE – an option that allows administrators to set a time window that determines when each port’s PoE power is turned on and off. All PoE models support the IEEE 802.3af and 802.3at standards, and each PoE power budget varies per model.

General

• Hardware Version: Rev. F
• 10/100/1000 Ports: 8
• 100/1000 SFP Ports: 2
• Port Standards and Functions:
• - IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• - IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• - IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic
• - IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper)
• - IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic
• - IEEE 802.3az Energy Efficient Ethernet (EEE)
• - IEEE 802.3x Flow Control
• - IEEE 802.3af/at compliance (for PoE ports on PoE models)
• Network Cables: UTP Cat. 5, Cat. 5e (100 m max.)
• Duplex Mode:
• - Full/half-duplex for 10/100 Mbps
• - Full-duplex for 1000 Mbps
• Media Interface Exchange: Auto MDI/MDIX adjustment for all twisted-pair ports
• Switching Capacity: DGS-1210-10P: 20 Gbps
• Transmission Method: Store-and-forward
• MAC Address Table: 8K entries
• Static MAC Addresses: 256 entries
• Max. 64 Byte Packet Fwd Rate: DGS-1210-10P: 14.88 Mpps
• Packet Buffer Memory: DGS-1210-10P: 4.1 Mbits
• CPU Memory: DDR3 128 MB
• Flash Memory: 32 MB
• Power over Ethernet (PoE)
• PoE Standards: DGS-1210-10P: 802.3af (PoE) and 802.3at (PoE+)
• PoE Capable Ports: DGS-1210-10P: Ports 1 - 8 (PoE+)
• PoE Power Budget: DGS-1210-10P: 65 W
• LEDs:
• - Power per device
• - Console per device
• - Link/Activity/Speed per port
• - PWR Max
