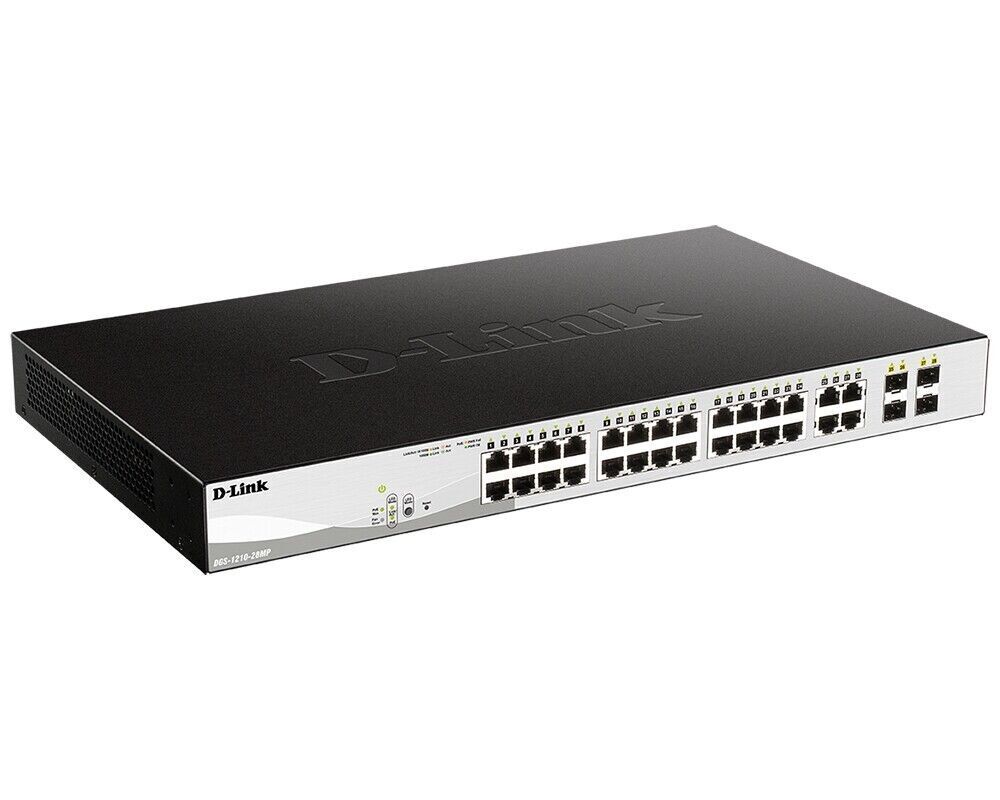

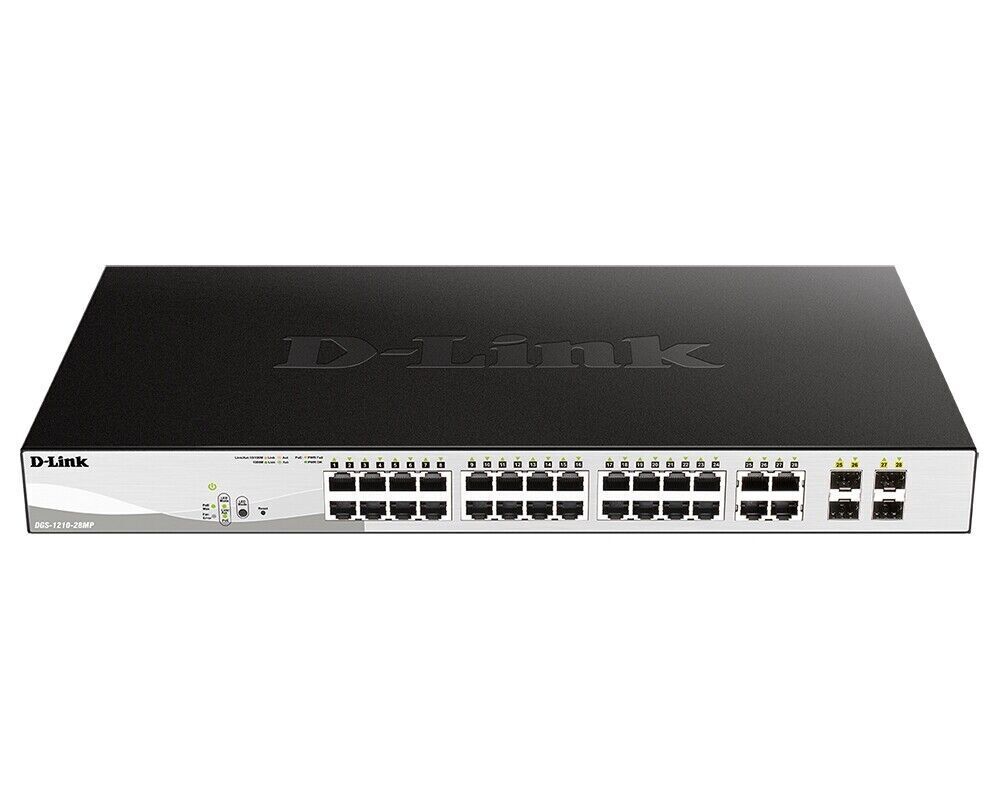

D-Link DGS-1210-28MP 28PT Smart Managed Gigabit PoE Switch Borwn Box

Marketing Information

D-Link’s DGS-1210 Series Web Smart Switches are the latest generation of switches featuring D-Link Green Technology. The DGS-1210 Series integrates advanced management as well as security functions that provide performance and scalability. Management options for the switch include SNMP, Web Management, D-Link Network Assistant Utility, and compact command lines. The DGS-1210 Series uses Auto Voice VLAN, ensuring bandwidth is prioritized for a smoother voice performance. The DGS-1210-10/10P/20/28 features a fanless design that allows for quieter operation and helps to extend the device’s lifetime, while the DGS-1210-28P/52/52P/52MP feature a smart fan design that powers on after the switch reaches a certain temperature, saving energy and cutting costs without sacrificing performance.

Vendor: D-Link
SKU: 207378
MPN: DGS-1210-28MP

Detail Specifications
Interfaces
24 Ports 10/100/1000Mbps PoE
2 SFP
Port Standards Functions
Ports 1-24 compliant with 802.3at
Other Port Standards Functions
IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper)
IEEE 802.3az compliance
Auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.3z
Network Cables
Network Cables
Full/Half Duplex
Full/half duplex for 10/100 Mbps speeds
Full duplex for Gigabit speed
Media Interface Exchange
Auto MDI/MDIX adjustment for all twisted-pair ports
Switching Capacity
56 Gbps
Transmission Method
Store-and-forward
MAC Address Table
16 ,000 entries per device
MAC Address Update
Up to 256 static MAC entries
Maximum 64 bytes packet forwarding rate
41.7 Mpps
Packet Buffer Memory
1.5 MB
DDRIII for CPU
128 Mbytes
Flash Memory DDR3
32 Mbytes
Software
L2 Features
MAC Address Table
- 16K entries
IGMP Snooping
- IGMP v1/v2 Snooping
- Supports 256 IGMP groups
- Supports at least 64 static multicast addresses
- IGMP per VLAN
- Supports IGMP Snooping Querier
Loopback Detection
802.3ad Link Aggregation:
- Maximum of 14 groups/8 ports per group
LLDP
LLDP-MED
Jumbo Frame
- Up to 9,216 bytes
Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
Port Mirroring
- One-to-One
- Many-to-One
- Supports Mirroring for Tx/Rx/Both
Multicast Filtering
- Forwards all unregistered groups
- Filters all unregistered groups
Configurable MDI/MDIX
- MLD snooping v1/v2 (256 groups)
VLAN
802.1Q
VLAN Group
- Max. 256 static VLAN groups
Configurable VID from 1 - 4094
Asymmetric VLAN
Auto Voice VLAN
- Max. 10 user-defined OUI
- Max. 8 default OUI
Auto Surveillance VLAN
Quality of Service (QoS)
802.1p Quality of Service
8 queues per port
Queue Handling
- Strict
- Weighted Round Robin (WRR)
Bandwidth Control
- Port-based (Ingress/Egress, min granularity 10/100/1000 is 64 Kbps)
QoS based on:
- 802.1p Priority Queues
- DSCP
- ToS
- IPv6 Traffic Class
- TCP/UDP port
L3 Features
IP Interface
Supports 1 interface
IPv6 Neighbor Discovery (ND)
Access Control List (ACL)
Max. 50 access list
Max. 768 rules shared by IPv4, MAC and IPv6
Each rule can only be associated with a single port
ACL based on
- 802.1p priority
- VLAN
- MAC address
- Ether type
- IP address
- DSCP
- Protocol type
- TCP/UDP port number
- IPv6 Traffic Class
Security
Broadcast/Multicast/Unicast Storm Control
D-Link Safeguard Engine
DHCP Server Screening
IP-MAC-Port Binding (Smart Binding)
- Supports 512 address binding entries
- ARP Inspection
- ARP + IP Inspection
- Supports DHCP Snooping
802.1X Port-based Access Control
ARP Spoofing Prevention
- Max. 64 entries
Traffic Segmentation
SSH v2
SSL
- Supports v1/v2/v3
Port Security
- Supports up to 64 MAC addresses per port
Duplicate address detection
AAA
802.1X Authentication
- Supports local/RADIUS database
- Supports port-based access control
- Supports EAP, OTP, TLS, TTLS, PEAP
IPv6 RADIUS Server
Support MD5 authentication
MIB/RFC Standards
RFC 783 TFTP
RFC 951 BootP/DHCP Client
RFC 1157 SNMP v1, v2, v3
RFC 1213 MIB II
RFC 1215 MIB Traps Convention
RFC 1350 TFTP
RFC 1493 Bridge MIB
RFC 1769 SNTP
RFC 1542 BootP/DHCP Client
RFC 1901 SNMP v1, v2, v3
RFC 1907 SNMP v2 MIB
RFC 1908 SNMP v1, v2, v3
RFC 2131 BootP/DHCP Client
RFC 2138 RADIUS Authentication
RFC 2139 RADIUS Authentication
RFC 2233 Interface Group MIB
RFC-2246 SSL
RFC 2475
RFC 2570 SNMP v1, v2, v3
RFC 2575 SNMP v1, v2, v3
RFC 2598 CoS
RFC 2618 RADIUS Authentication
RFC 2819 RMON v1
RFC 2865 RADIUS Authentication
RFC 3164 System Log
RFC 3195 System Log
RFC 3411-17 SNMP
D-Link Private MIB
LLDP MIB
Zone Defense MIB
2233 Interface Group MIB
OAM
Cable Diagnostics
Factory Reset
Management
Web-based GUI
D-Link Network Assistant Utility
Compact CLI
Telnet Server
TFTP Client
Configurable MDI/MDIX
SNMP
- Supports v1/v2c/v3
SNMP Trap
Backup/Upgrade firmware
Smart Wizard
Upload/Download Configuration file
System Log
- Max. 500 log entries
BootP/DHCP Client
SNTP
ICMP v6
IPv4/v6 Dual Stack
DHCP Auto Configuration
Time Setting
- SNTP
RMONv1
Trusted Host
Green V3.0 Technology
Power Saving by:
- Link Status
- Time-based PoE: PoE ports can be turned on/off by port or system through schedule
- LED Shutoff
- System Hibernation
- Port Shutoff
Physical/Environmental

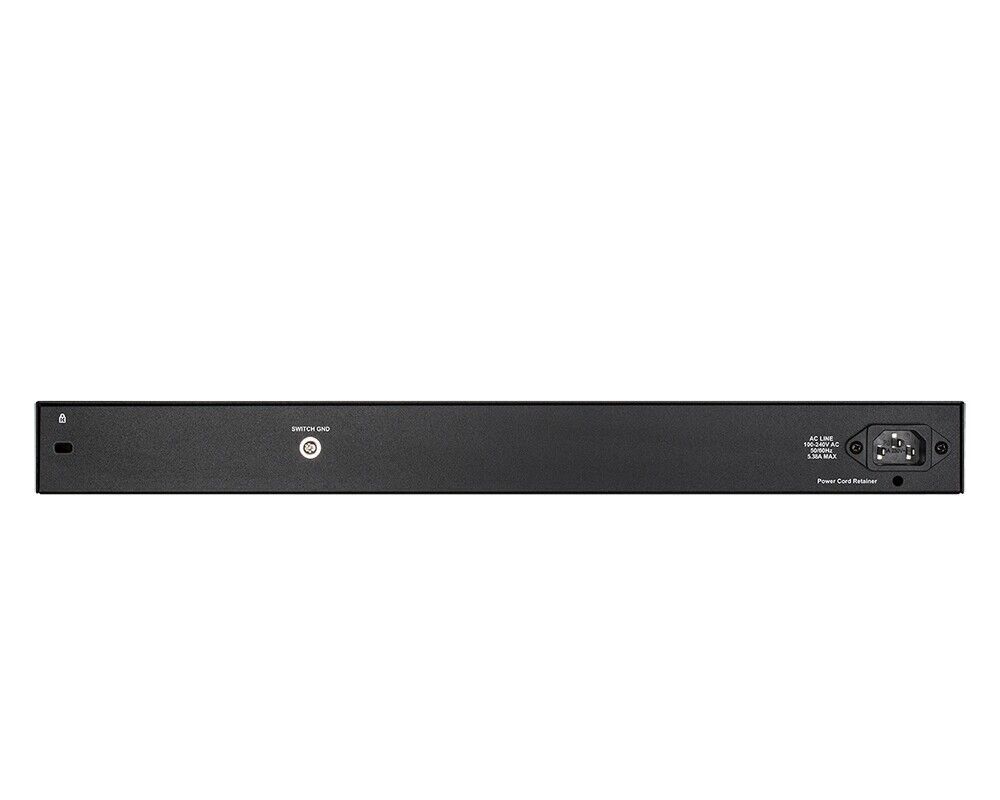

AC Input
100 to 240 VAC 50/60 Hz internal universal power supply
Maximum Power Consumption
454.4 Watts (PoE on)
33.1 Watts (PoE off)
Maximum PoE Budget
370 W
Standby Power Consumption
100 V: 23.4 W
240 V: 21.8 W
Acoustics
Low speed: 47.94 dBA
High speed: 52.41 dBA
Heat Dissipation
1,552.32 Btu/hr
Operating Temperature
-5 to 50 oC (23 to 122 oF)
Storage Temperature
-20 to 70 oC (-4 to 158 oF)
Operating Humidity
0% to 95% non-condensing
Storage Humidity
0% to 95% non-condensing
Diagnostic LEDs
Link/Activity/Speed (per 10/100/1000 Mbps port)
Power Fail/Power Ok (per PoE port)
Certifications
CE Class A
VCCI Class A
FCC Class A
BSMI
CCC
C-Tick
cUL
CE (LVD)
CCC
MTBF
271,281 hours

Warranty Information
Limited Lifetime - Direct from the Manufacturer
