Dell DELL-SD25TB5 Pro SD25TB5 Docking Station - 330 W
Regular price
$783.24 USD
Sale price
$783.24 USD
Regular price
$783.24 USD
Description
Couldn't load pickup availability
Dell DELL-SD25TB5 Pro SD25TB5 Docking Station - 330 W
Current product
Current
Vendor:
Dell
Dell DELL-SD25TB5 Pro SD25TB5 Docking Station - 330 W
Regular price
$783.24 USD
Sale price
$783.24 USD
Regular price
$783.24 USD
Options
Descriptions

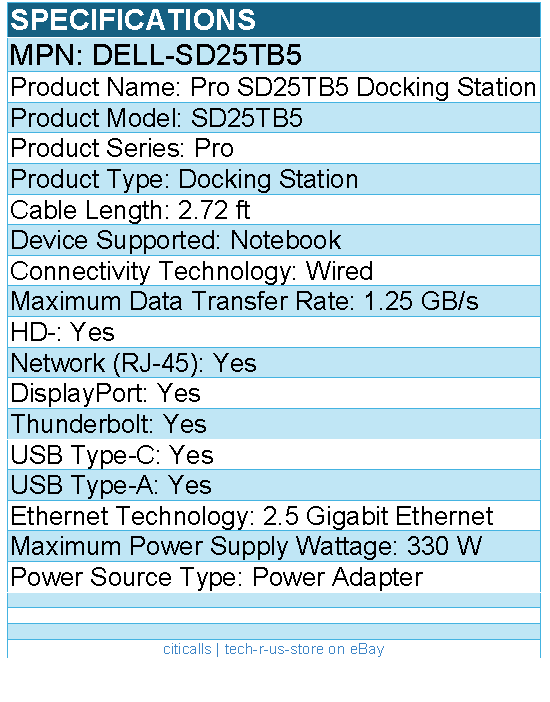

General Information
- Manufacturer: Dell Technologies
- Brand Name: Dell
- Manufacturer Part Number: DELL-SD25TB5
- Product Model: SD25TB5
- Product Name: Pro SD25TB5 Docking Station
- Product Series: Pro
- Product Type: Docking Station
Technical Information
- Cable Length: 2.72 ft
- Device Supported: Notebook
- Connectivity Technology: Wired
- Features
- Power Delivery Pass-through
- LED Power Indicator
- Maximum Data Transfer Rate: 1.25 GB/s
- Supported Resolutions
- 2560 x 1440
- 3440 x 1440
- 3840 x 2160
- 5120 x 2160
- 6144 x 3456
- 7680 x 4320
- Screen Mode Supported
- WQHD @ 60Hz
- QHD @ 60Hz
- 8K @ 60Hz
- 5K @ 60Hz
- 6K @ 60Hz
- 4K @ 120Hz
- Management Features
- Kernel Direct Memory Access (DMA) Protection
- WLAN to LAN Switch
- Wake-on-LAN
- PXE Boot
- Port Disablement
- MAC Address Pass-through
- Intel AMT over Thunderbolt with select Intel vPro PCs
- Dell Command Update (DCU)
- Dock Power Button Sync
- Power Delivery
- 240W (non-Dell Systems)
- 300W (Dell Systems)
- Video Resolution Details
- 4K - 120 Hz (Quad Display)
- 8K - 60 Hz (Single Display)
- QHD - 60 Hz (Quad Display)
- WQHD - 60 Hz (Triple Display)
- 4K - 60 Hz (Quad Display)
- 4K - 60 Hz (Triple Display)
- 5K - 60 Hz (Single Display)
- 6K - 60 Hz (Dual Display)
- 4K - 120 Hz (Triple Display)
- 4K - 60 Hz (Dual Display)
- Security Slot Type
- Noble Wedge Security Slot
- Kensington Security Slot
Interfaces/Ports
- Host Interface: Thunderbolt 5
- HD-: Yes
- HD- Version: 2.1
- Number of HD- Ports: 1
- Network (RJ-45): Yes
- DisplayPort: Yes
- Total Number of USB Ports: 6
- Thunderbolt: Yes
- Number of DisplayPorts: 2
- USB Type-C: Yes
- USB Type-C Detail
- 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 2.1
- 1 x USB-C 3.2 Gen 2 (10 Gbps)
- DisplayPort Version: 2.1
- Number of USB Type-C Ports: 2
- Number of USB Type-A Ports: 4
- Thunderbolt Ports Quantity: 2
- Number of USB 3.2 Gen 2 Type-A Ports: 4
- USB Type-A: Yes
Network & Communication
- Ethernet Technology: 2.5 Gigabit Ethernet
Power Description
- Maximum Power Supply Wattage: 330 W
- Power Source Type: Power Adapter
Physical Characteristics
- Weight (Approximate): 1.39 lb
- Height: 8.07"
- Width: 3.54"
- Depth: 1.39"
Software
- Operating System Supported
- Windows 11
- macOS
- Red Hat Enterprise Linux 9.7
- ChromeOS 141
- Windows 10
- Ubuntu 24.04
