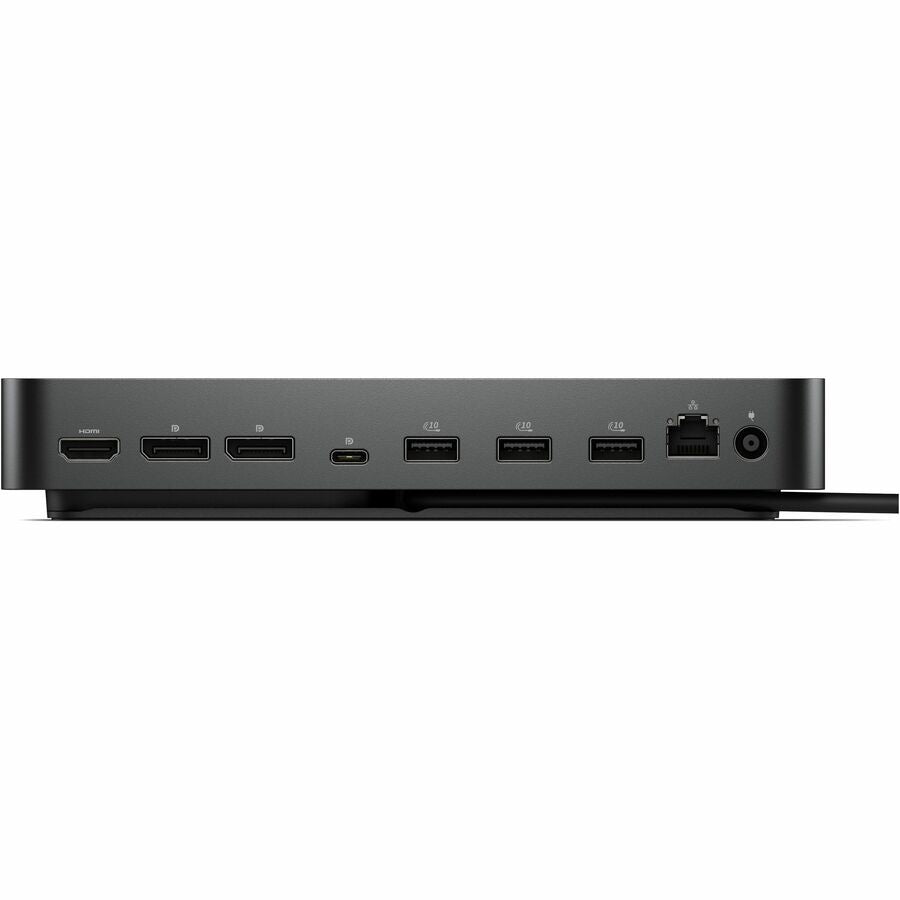

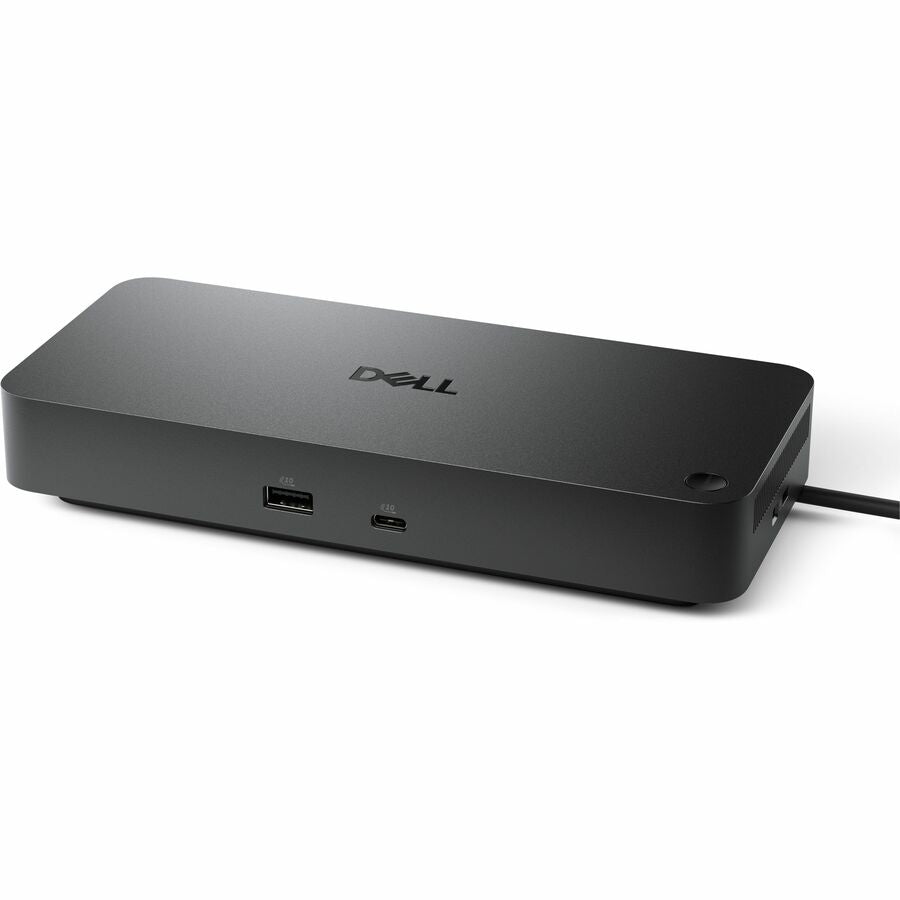

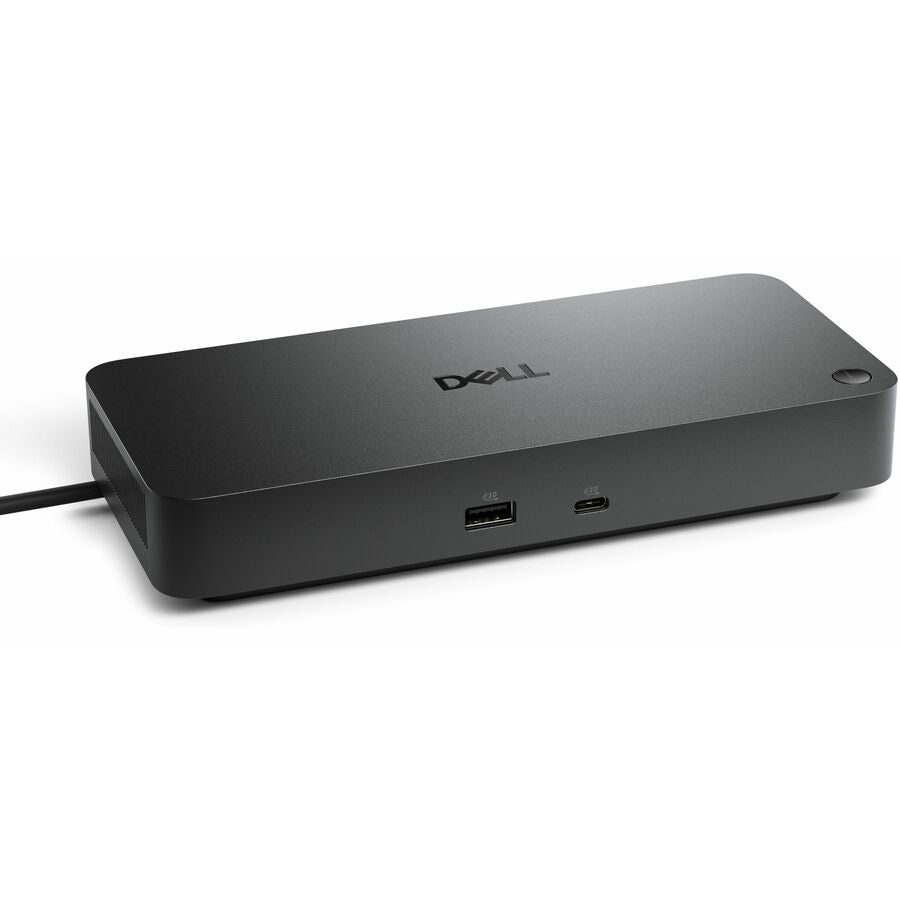

Dell DELL-WD25 Pro Dock WD25 - Docking Station - Wired - USB Type C

• Manufacturer: Dell Technologies
• Brand Name: Dell
• Manufacturer Part Number: DELL-WD25
• Product Model: WD25
• Product Name: Pro Dock WD25
• Product Line: Pro Dock
• Product Type: Docking Station

• Cable Length: 2.95 ft
• Device Supported
  • Notebook
  • Desktop PC
• Connectivity Technology: Wired
• Features
  • LED Power Indicator
  • Power Delivery Pass-through
• Charging Capability: Yes
• Maximum Data Transfer Rate: 1.25 GB/s
• Number of Displays Supported 4
• Supported Resolutions
  • 6144 x 3456
  • 5120 x 2160
  • 3840 x 2160
  • 3440 x 1440
  • 2560 x 1440
  • 1920 x 1080
  • 1280 x 1024
• Screen Mode Supported
  • QHD @ 60Hz
  • FHD @ 60Hz
  • 6K @ 60Hz
  • 5K @ 60Hz
  • 4K @ 60Hz
  • SXGA
  • WQHD @ 60Hz
• Management Features
  • WLAN to LAN Switch
  • Wake-on-LAN
  • PXE Boot
  • Port Disablement
  • MAC Address Pass-through
  • Dell Command Update (DCU)
  • Kernel Direct Memory Access (DMA) Protection
  • Dock Power Button Sync
• Power Delivery
  • 96W (non-Dell Systems)
  • 100W (Dell Systems)
• Video Resolution Details
  • WQHD - 60 Hz (Quad Display)
  • WQHD - 60 Hz (Triple Display)
  • 4K - 60 Hz (Single Display)
  • 5K - 60 Hz (Dual Display)
  • 6K - 60 Hz (Single Display)
  • FHD - 60 Hz (Triple Display)
  • QHD - 60 Hz (Dual Display)
  • SXGA - 60 Hz (Quad Display)
• Security Slot Type: Kensington Security Slot
• Power Delivery Details
  • 4 x USB-A 3.2 Gen 2 (4.5W each)
  • 1 x USB-C 3.2 Gen 2 (15W)
  • 1 x USB-C Multi-function DisplayPort (7.5W)
  • All deliver power with or without PC

• Host Interface: USB Type C
• HD-: Yes
• HD- Version: 2.1
• Number of HD- Ports: 1
• Network (RJ-45): Yes
• DisplayPort: Yes
• Total Number of USB Ports: 6
• Number of DisplayPorts: 2
• USB Type-C: Yes
• USB Type-C Detail
  • 1 x USB-C 3.2 Gen 2 (15W)
  • 1 x USB-C Multi-function DisplayPort (7.5W)
• DisplayPort Version: 1.4
• Number of USB Type-C Ports: 2
• Number of USB Type-A Ports: 4
• Number of USB 3.2 Gen 2 Type-A Ports: 4
• USB Type-A: Yes

• Ethernet Technology: 2.5 Gigabit Ethernet

• Maximum Power Supply Wattage: 130 W
• Power Source Type: Power Adapter

• Weight (Approximate): 1.21 lb
• Height: 8.07"
• Width: 3.54"
• Depth: 1.39"

Software

• Operating System Supported
  • ChromeOS 137
  • Red Hat Enterprise Linux 9.6
  • Windows 11
  • Windows 10
  • Ubuntu 24.04
