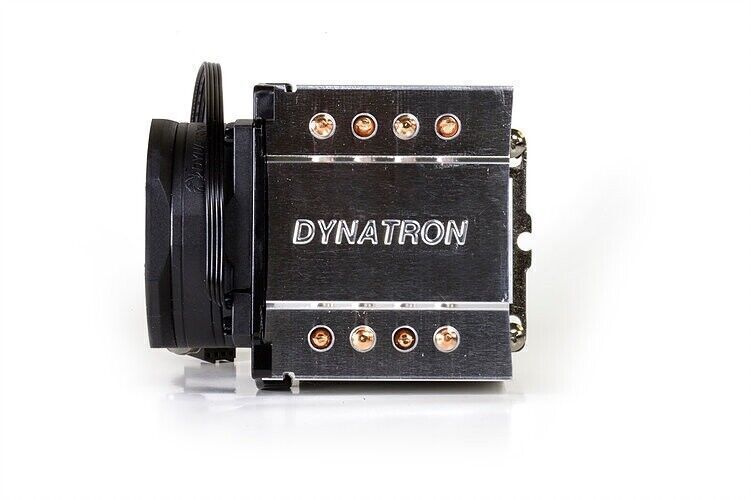

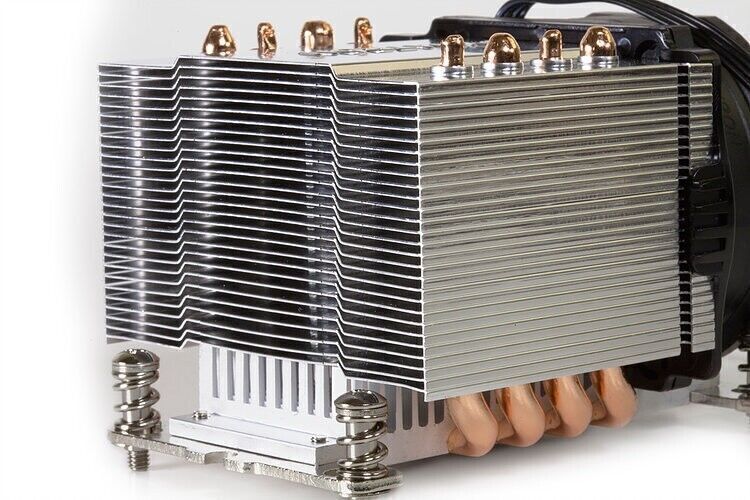

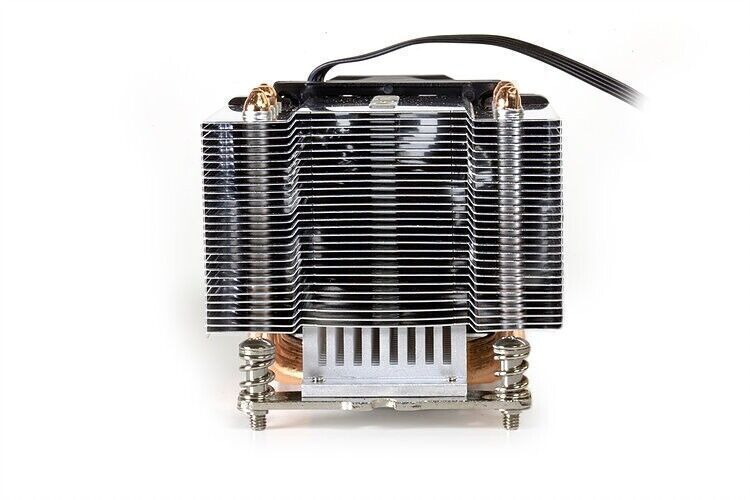

Dynatron A24 AMD AM4 PWM fan Aluminum fins w Heat Pipes 2U Server & Up 12V

Write a review

$41.33

Brand : Dynatron

Collection : CPU Fans

SKU : AS24a 224676 - A24

Availability : 3 In Stock Sold Out 3

HURRY ! ONLY 3 LEFT IN STOCK.

Translation missing: en.products.product.product_variants

Quantity

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

FREE SHIPPING

Anywhere in the USA

BIG SAVING ON

WEEKENDS

24H SUPPORT

Description
Shipping

Vendor: Dynatron
SKU: 224676
MPN: A24

Marketing Information
Recommend for AMD Processor, Socket AM4. New innovation 60x60x28mm PWM fan, Aluminum fins with heatpipe directly contact CPU up to TDP 95 Watts for 2U Server & Up.

Detail Specifications
CPU Support
AMD
CPU Socket
AM4
Solution
2U Server and Up
Material
Aluminum Stacked Fin with Heat Pipes directly contact CPU
Fan Dimension
60 x 60 x 28 mm
Speed
At Duty Cycle 20%: 1500+/-10% RPM
At Duty Cycle 50%: 3500+/-10% RPM
At Duty Cycle 100%: 7000 RPM
Bearing
Double-Ball
Rated Voltage
12V
Power
At Duty Cycle 20%: 0.6 W
At Duty Cycle 50%: 2.16 W
At Duty Cycle 100%: 7.2 W
AIr Flow
At Duty Cycle 20%: 8.8 CFM
At Duty Cycle 50%: 20.3 CFM
At Duty Cycle 100%: 40.5 CFM
Noise Level
At Duty Cycle 20%: 16.0 dBA
At Duty Cycle 50%: 32.9 dBA
At Duty Cycle 100%: 47.5 dBA
Air Pressure
At Duty Cycle 20%: 0.7 mm-H2O
At Duty Cycle 50%: 3.6 mm-H2O
At Duty Cycle 100%: 14.3 mm-H2O
Lead Wire Pin Out
Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)

Warranty Information
1 Year - Direct from the Manufacturer
