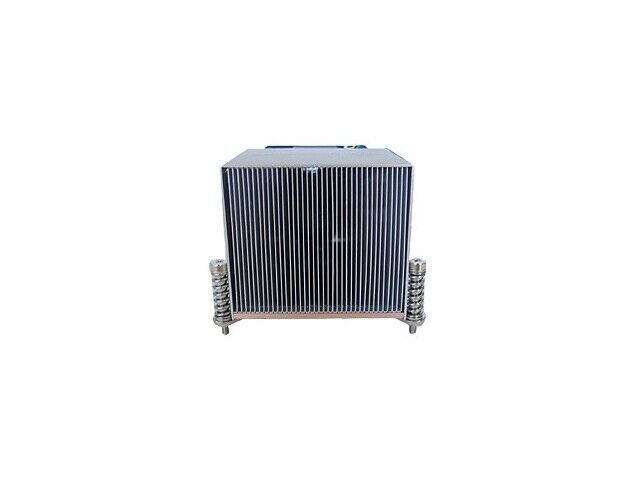

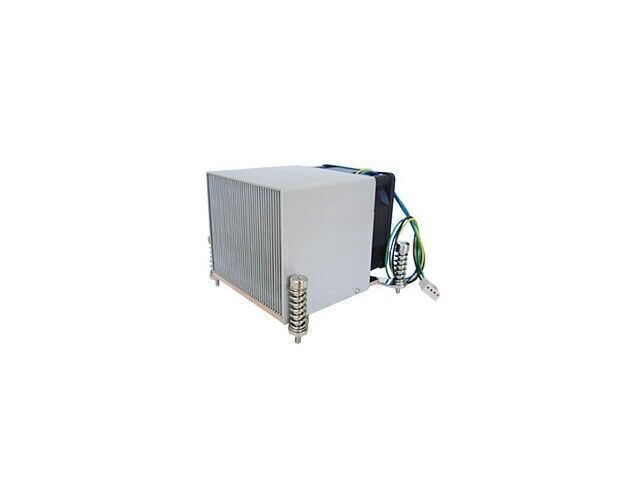

Dynatron K650 Heatsink+Fan 2U&Up 60mm 2 Ball CPU Cooler Retail
Share
Vendor: Dynatron
SKU: 108045
MPN: K650
Marketing Information
Dynatron FAN K650 Heatsink + Fan 2U and up 60mm 2 x Ball CPU Cooler Retail
Detail Specifications
CPU Socket :
1156
CPU Support :
Intel Core i3 i3-530 i3-540, Core i5 i5-650, i5-650, i5-660, i5-661 i5-670 I5-750 Xeon Processor 3400 Series Core i7 Processors, I7-870 I7-860
Solution :
2U and Up Server
Material :
Copper Base with Aluminum Stacked Fin
Fan Dimension:
60 x 60 x 25 mm
Speed :
At Duty Cycle 020%: 1400 RPM
At Duty Cycle 50%: 3500 RPM
At Duty Cycle 100%: 7000 RPM
Bearing :
2 Ball Bearing
Rated Voltage :
12 V
Power :
At Duty Cycle 020%: 0.6 W
At Duty Cycle 50%: 1.20 W
At Duty Cycle 100%: 5.4 W
Air Flow:
At Duty Cycle 020%: 7.405 CFM
At Duty Cycle 50%: 18.517 CFM
At Duty Cycle 100%: 38.283 CFM
Noise Level :
At Duty Cycle 020%: 20.8 dBA
At Duty Cycle 50%: 35.9 dBA
At Duty Cycle 100%: 48.1 dBA
Air Pressure :
At Duty Cycle 020%: 0.574mm-H2O
At Duty Cycle 50%: 3.586mm-H2O
At Duty Cycle 100%: 13.552mm-H2O
Lead Wire Pin :
Out Pin1-Black (-)
Pin2-Yellow (+)
Pin3-Green (Techometer/Signal output)
Pin4-Blue (PWM)
Warranty Information :
1 Year - Direct from the Manufacturer
