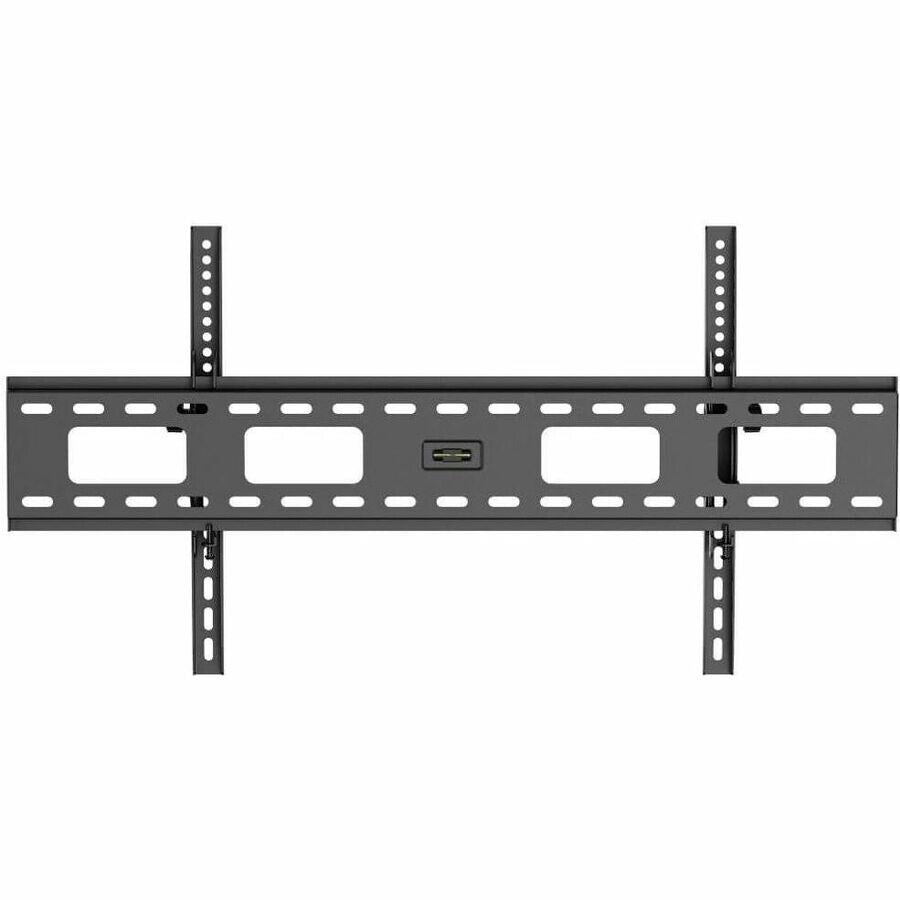

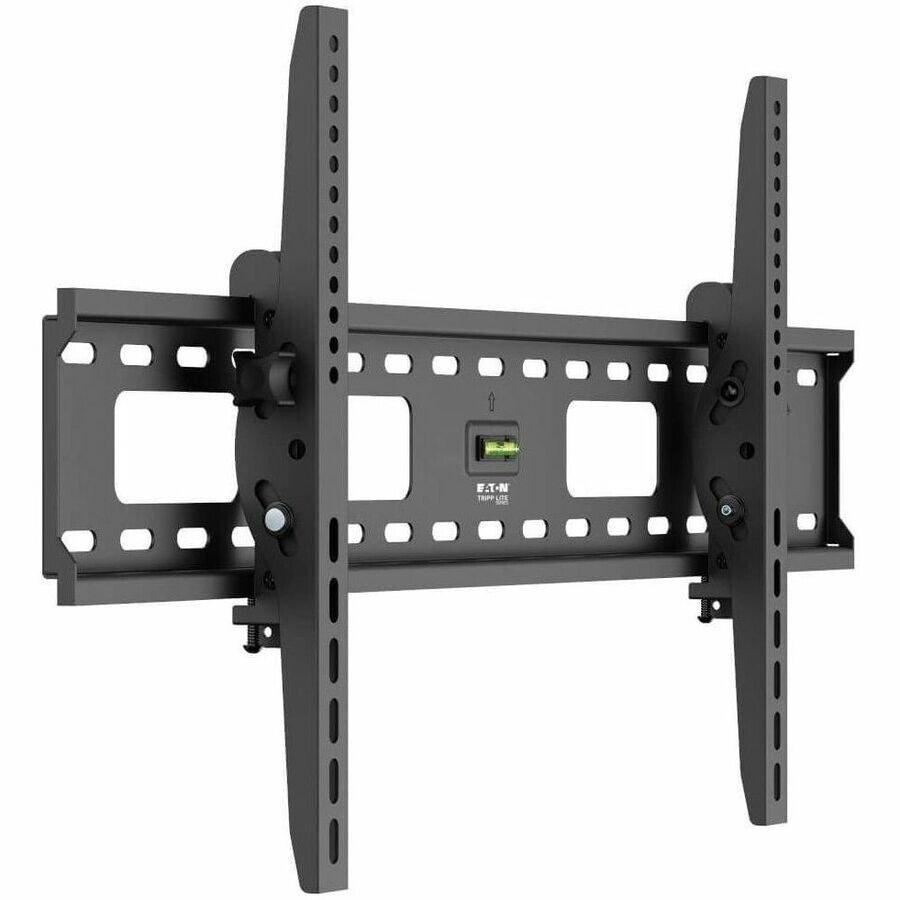

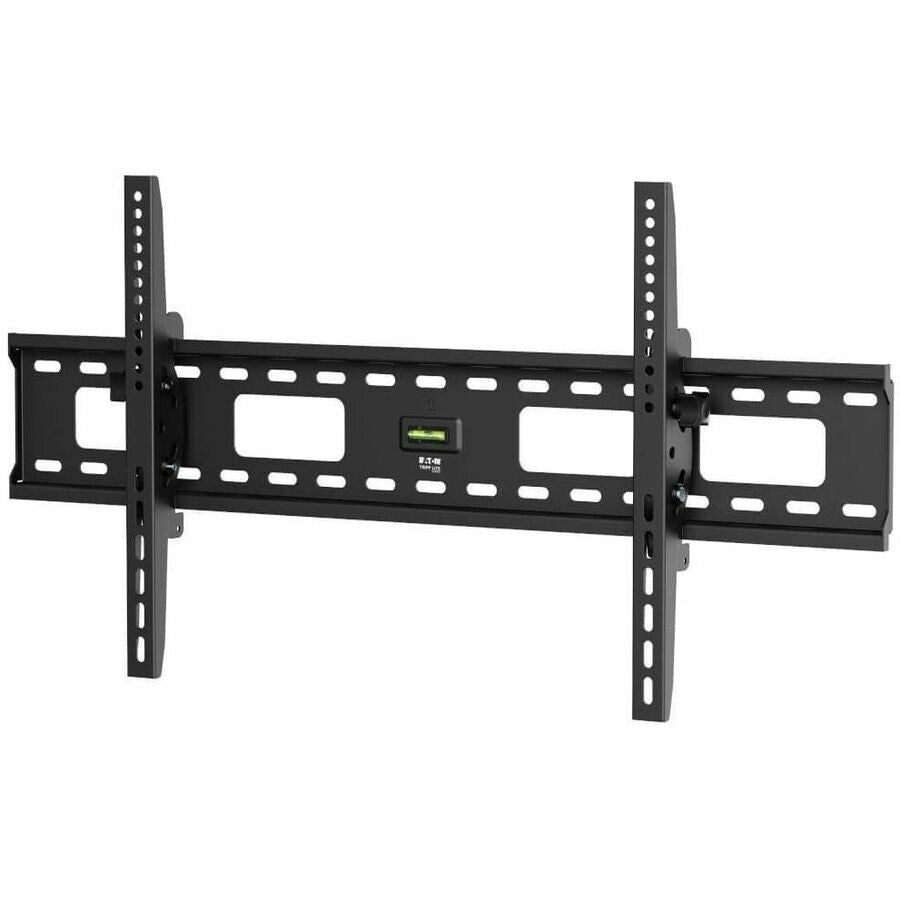

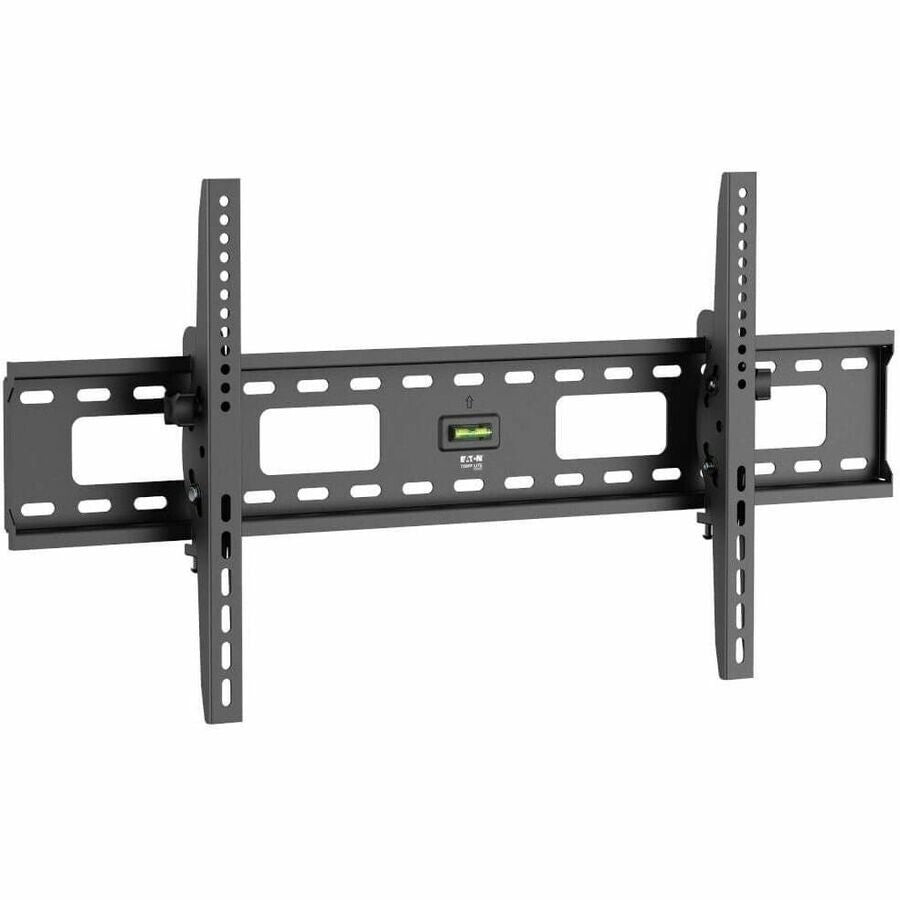

Eaton DWT4585X LCD Monitor Wall Mount TILT for 45" to 85" TV Flat Screen Display

GENERAL INFORMATION

• Manufacturer: Eaton Corporation
• Manufacturer Part Number: DWT4585X
• Brand Name: Tripp Lite by Eaton
• Product Model: DWT4585X
• Product Name: Tilt Wall Mount for 45" to 85" Flat-Screen Displays
• Product Type: Wall Mount
• Compatibility: 45" to 85" Flat-Screen Displays

MARKETING INFORMATION:

The VESA-compliant DWT4585X Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 45 to 85 inches. A -10° to +10° tilt capability minimizes glare and provides comfortable viewing from multiple angles. Low-profile mount is concealed behind the display to give a sleek, professional appearance. Frame is open for easy wall access. Mounting rails adjust horizontally to compensate for off-center wall studs. Built-in bubble level allows accurate display leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 200 pounds. Mounting hardware included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm and 800 x 400 mm.

PRODUCT INFORMATION

• Device Supported: Flat Panel Display
• Number of Displays Supported: 1
• Maximum Load Capacity: 200 lb
• Minimum Screen Size Supported: 45"
• Maximum Screen Size Supported: 85"

FEATURES:

• Tilt
• Bubble Level
• Adjustable Viewing Angle
• Horizontal Adjustment
• Durable
• Scratch Resistant
• Low-profile mounting keeps unit out of sight for sleek, professional appearance
• Equipped with a bubble level for accurate display leveling
• Wide range of motion with -10° to 10° tilt capability

PHYSICAL CHARACTERISTICS

• Color Family: Black
• Product Color: Black
• VESA Mount Compatible: Yes
• Product Material: Metal
• Height: 17.32"
• Width: 33.85"
• Depth: 2.48"
• Weight (Approximate): 6.83 lb

VESA MOUNTING PATTERN:

• 200 x 200
• 400 x 200
• 300 x 300
• 400 x 400
• 600 x 400
• 800 x 400

PACKAGE CONTENTS:

• Tilt Wall Mount for 45" to 85" Flat-Screen Displays
• Mounting Hardware
• Owner's Manual

OTHER INFORMATION

• Environmentally Friendly: Yes
• Environmental Compliance: Restriction of Hazardous Substances (RoHS)
• Limited Warranty: 5 Years from EATON

SHIPPING NOTES:

All our products are normally shipped within 1-2 business days from any of our warehouse locations below:

• Monrovia, CA 91016 (Most usual)
• Fresno, CA 93725
• Newman, GA 30265
• Bolingbrook, IL 60490
• Middletown, PA 17057
• Harrisburg, PA 17112

International orders may take an additional 2 to 3 days.

California Prop 65 Warning. This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Visit www.P65Warnings.ca.gov
