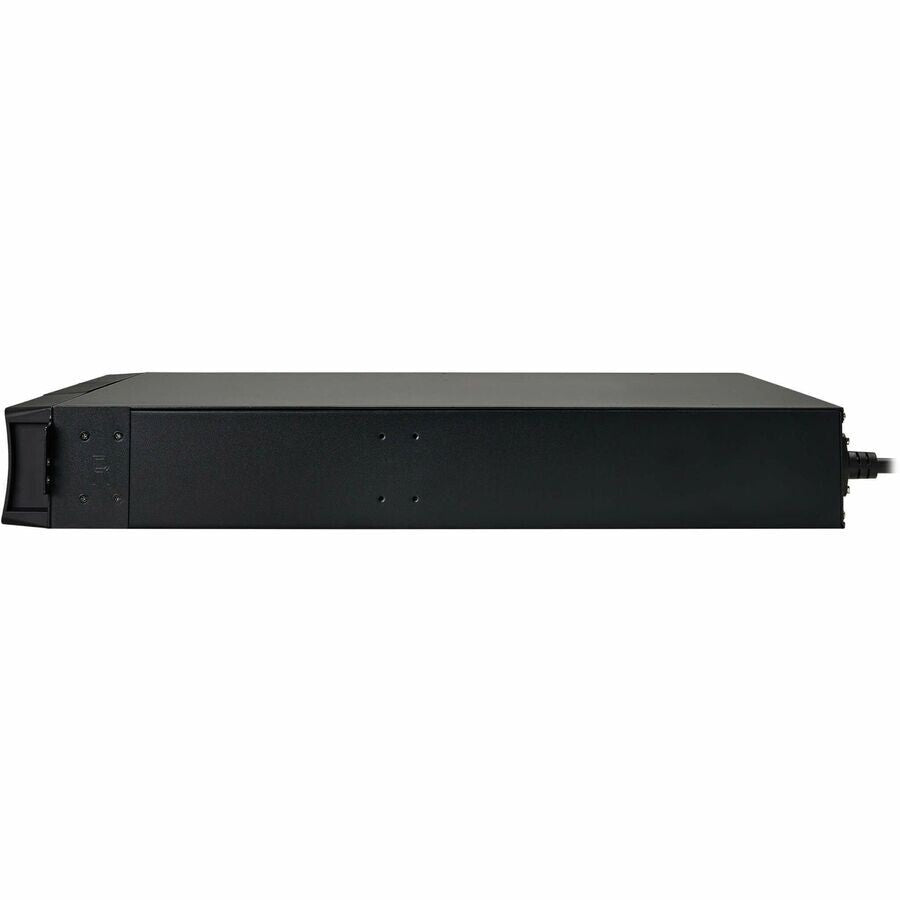

Eaton SU2200RTXLCDN 7-Outlet 2U Rack Tower BackUp USB LCD DB9 1800W 2000VA

GENERAL INFORMATION

• Manufacturer: Eaton Corporation
• Manufacturer Part Number: SU2200RTXLCDN
• Brand Name: Tripp Lite series
• Product Line: SmartOnline
• Product Model: SU2200RTXLCDN
• Product Name: SmartOnline SU2200RTXLCDN 2000VA Rack/Tower UPS
• Product Type: Double Conversion Online UPS

MARKETING INFORMATION:

Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss
This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation completely isolates sensitive equipment from every power problem on the AC line. The SmartOnline® SU2200RTXLCDN provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.

TECHNICAL INFORMATION

• Plug/Connector Type: NEMA 5-15P
• Receptacle Type:
  • NEMA 5-20R
  • NEMA L5-20R
• Receptacle Detail:
  • 6 x NEMA 5-20R
  • 1 x NEMA L5-20R
• Overload Protection: Yes
• Transfer Time: 0 ns
• EMI/RFI Noise Filter: Yes
• Phase: Single Phase
• Energy Saving: High efficiency economy mode operation; Individually controllable load banks
• Network Management: SNMP
• Display: LCD

POWER DESCRIPTION

• Load Capacity (VA): 2000 VA
• Load Capacity (Watt): 1800 W
• Input Voltage: 120 V AC
• Output Voltage:
  • 100 V AC
  • 110 V AC
  • 115 V AC
  • 120 V AC
  • 127 V AC
• Input Frequency: 60 Hz
• Output Frequency: 60 Hz
• Waveform Type: Pure Sine Wave
• Surge Energy Rating: 190 J
• Input Power Factor: 0.99
• Output Power Factor: 0.9

ALARM:

• Remote Shutdown
• UPS StartUp
• Power Failure
• Overload
• UPS Fault
• Low Battery
• Status Indicators: 4 x status-indicating LEDs

INTERFACES/PORTS

• Serial Port: Yes
• USB: Yes

BATTERY INFORMATION

• DC System Voltage: 72 V DC
• Battery Characteristics: Valve-regulated
• Battery Chemistry: Lead Acid
• Backup/Run Time (Full Load): 7.70 Minute
• Backup/Run Time (Half Load): 20.20 Minute
• Typical Battery Recharge Time: 3 Hour
• Hot Swappable: Yes
• Replaceable Battery: Yes

ENVIRONMENTAL CONDITIONS

• Minimum Operating Temperature: 32°F (0°C)
• Maximum Operating Temperature: 104°F (40°C)
• Storage Temperature: 32°F (0°C) - 104°F (40°C)
• Maximum Operating Elevation: 9842.52 ft
• Sound Emission: 47 dB

PHYSICAL CHARACTERISTICS

• Height: 3.4"
• Width: 17.3"
• Depth: 23.8"
• Rack Height: 2U
• Form Factor: Rack/Tower
• Weight (Approximate): 61.51 lb

PACKAGE CONTENTS:

• SmartOnline SU2200RTXLCDN 2000VA Rack/Tower UPS
• WEBCARDLXE Network Management Card
• USB Cable
• DB9 RS232 Cable
• Rack-mounting Hardware
• Tower Support Stands
• Safety Instructions
• Quick Start Guide

OTHER INFORMATION

• Energy Star
• Environmentally Friendly: Yes
• Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Limited Warranty: 3 Year from EATON
