Eaton Tripp Lite Series DRS-1215 14 Outlet EconomyNetwork Server Surge Protector

General Information

• Manufacturer: Eaton Corporation
• Brand Name: Tripp Lite series
• Manufacturer Part Number: DRS-1215
• Product Name: DRS-1215 14 Outlets 120V Surge Suppressor
• Product Type: Surge Suppressor/Protector

Marketing Information:

• Tripp Lite's DRS-1215 offers surge and noise suppression in a versatile all-metal multi-mount cabinet. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Includes 14 outlets (6 front/8 rear), 15-ft. (4.57 m) AC power cord and guarded power switch to reduce the risk of accidental shutoff. Diagnostic LED indicates surge protection status.
• PLUG/OUTLETS: Input: NEMA 5-15P/Output: 14 NEMA5-15R (6 front & 8 rear)
• ELECTRICAL: 120V AC, 50/60Hz, 15A (Requires NEMA 5-15R wall receptacle)
• SUPPRESSION: AC: 140V RMS Clamping/3000 joules
• FORMAT: Supports 19 in. rackmount (uses 1 rack space/1U), wallmount, under-counter and more

Features

• Versatile all-metal cabinet with detachable mounting flanges allows rackmount, wallmount, undercounter and other creative mounting options
• Uses one rack space (1U) in standard 19 inch rack ("zero U" mounting possible in many racks)
• 3000 joules AC surge suppression with EMI/RFI filtering
• 14 NEMA 5-15R output receptacles (6 front/8 rear)
• 15-ft. (4.57 m) AC cord with NEMA 5-15P straight-in plug connection
• Diagnostic LED confirms suppressor operation
• Lighted power switch confirms power on/off status
• Snap-in switch guard prevents accidental turn off
• 15 amp capacity with circuit breaker
• 120V AC, 50/60Hz electrical compatibility

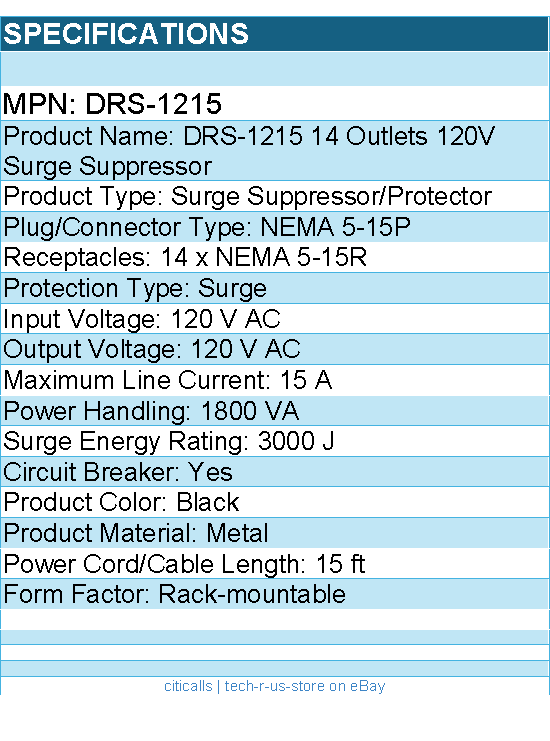

Technical Information

• Plug/Connector Type: NEMA 5-15P
• Receptacles: 14 x NEMA 5-15R
• Protection Type: Surge

Power Description

• Input Voltage: 120 V AC
• Output Voltage: 120 V AC
• Maximum Line Current: 15 A
• Power Handling: 1800 VA
• Surge Energy Rating: 3000 J
• Circuit Breaker: Yes

Physical Characteristics

• Color Family: Black
• Product Color: Black
• Product Material: Metal
• Power Cord/Cable Length: 15 ft
• Form Factor: Rack-mountable
