Eaton Tripp Lite Series INTERNET750U 750VA Standby UPS - 12 NEMA 5-15R Outlets

General Information

• Manufacturer: Eaton Corporation
• Brand Name:Tripp Lite series
• Manufacturer Part Number: INTERNET750U
• Product Model: INTERNET750U
• Product Name: 750VA 6UPS/Surge and 6 Surge UPS System
• Packaged Quantity: 1 Each
• Product Type: Standby UPS

Marketing Information:

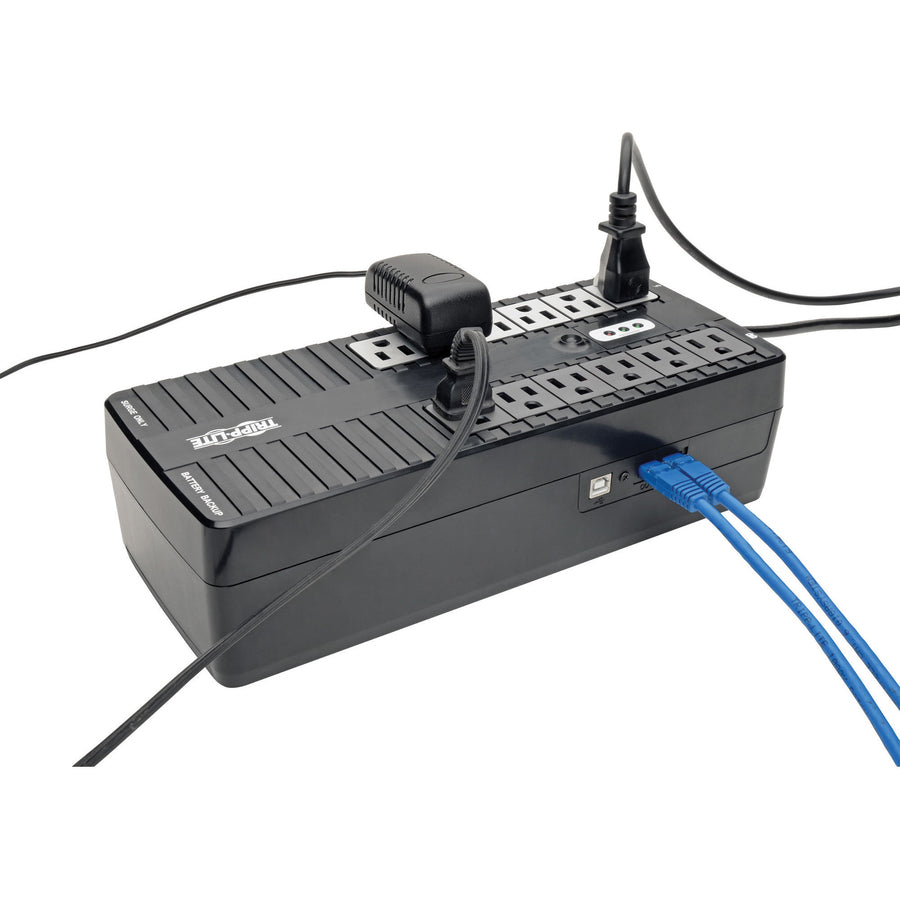

• UPS offers standby protection for PCs and peripherals to prevent data loss and system downtime by providing battery-supported AC output during brownouts and blackouts. Ultra-compact, wall-mountable UPS includes 12 widely spaced, output receptacles to accommodate large transformer plugs. 6 outlets provide full battery support and surge suppression for computers, monitors and other vital system components. 6 additional, surge suppression-only outlets are ideal for printers and other accessories not requiring battery support. Single-line, telephone suppression jacks protect modem or other peripherals with a standard dialup or DSL phone line connection. HID-compliant USB interface enables integration with built-in power management and auto-shutdown features of Windows and Mac OS X. Audible alarm and front panel LEDs offer status information regarding line and battery power operation. 750VA/450 watt power handling ability supports entry-level PCs for up to 45 minutes during power failures.

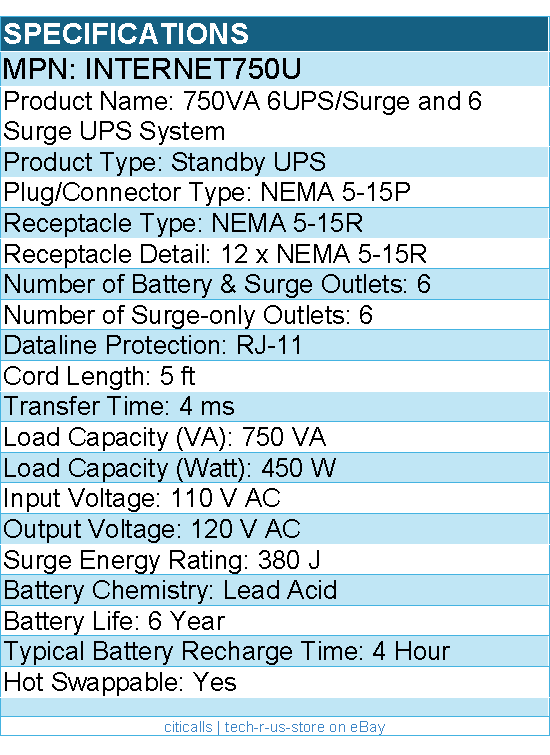

Technical Information

• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R
• Receptacle Detail: 12 x NEMA 5-15R
• Number of Battery & Surge Outlets: 6
• Number of Surge-only Outlets: 6
• Dataline Protection: RJ-11
• Protection Type:
  • Black Out
  • Brownout
  • Over Voltage
  • Surge
  • Line Noise
• Cord Length: 5 ft
• Transfer Time: 4 ms
• Application/Usage:
  • Home/Office
  • Media Center
  • Commercial
  • Desktop Computer
  • Router
  • Printer
  • Server
  • TV
  • Gaming Console
  • Blu-ray Player
  • Audio System
  • DVR
  • Media Player
  • Home Theater
  • Digital Signage

Power Description

• Load Capacity (VA): 750 VA
• Load Capacity (Watt): 450 W
• Input Voltage: 110 V AC
• Output Voltage: 120 V AC
• Waveform Type:
• Pulse-width Modulated Sine Wave
• Surge Energy Rating: 380 J

Management

• Alarm:
  • On Battery
  • Self-test Operation

Controls/Indicators

• Status Indicators: 2 LEDs indicate on/off and overload/check battery

Interfaces/Ports

• Modem (RJ-11): Yes
• USB: Yes

Battery Information

• Battery Chemistry: Lead Acid
• Backup/Run Time (Full Load): 2.50 Minute
• Backup/Run Time (Half Load): 11 Minute
• Battery Life: 6 Year
• Typical Battery Recharge Time: 4 Hour
• Hot Swappable: Yes

Environmental Conditions

• Maximum Operating Temperature: 104°F (40°C)

Physical Characteristics

• Color Family: Black
• Product Color: Black
• Height: 4"
• Width: 12"
• Depth: 7"
• Form Factor: Ultra-compact Desk-mount

Miscellaneous

• Package Contents:
  • Internet Office 750VA UPS
  • USB cable and phone cord
  • Instruction manual with warranty information

Warranty

• Limited Warranty: 3 Year from Eaton Corporation
