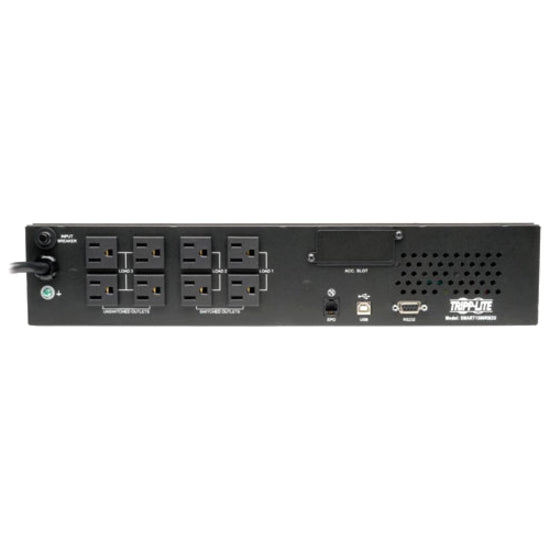

Eaton Tripp Lite series SMART1500RM2U 1500VA SmartPro Rack Tower UPS

General Information

• Manufacturer: Eaton Corporation
• Manufacturer Part Number: SMART1500RM2U
• Brand Name: Tripp Lite series
• Product Line: SmartPro
• Product Name: SmartPro 1500RM2U UPS
• Packaged Quantity: 1 Each
• Product Type: Line-interactive UPS

Marketing Information:

• Protects Mission-Critical Rack-Mounted Equipment
  • Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware
  • Audible alarm signals loss of utility power, overload, low battery and fault conditions
  • 8 NEMA 5-15R outlets
  • 10-ft. (3.05 m) power cord with 120V NEMA 5-15P input
  • 0.9 power factor rating
  • 570-joule surge suppression rating
• Reliable Battery Backup
  • Supports half load up to 13 min. and full load up to 4.5 min.
  • Internal batteries designed for hot-swap field replacement
  • 95% line-power efficiency rating saves money in energy costs
• 2 Load Banks with Switchable Outlets
  • Can control 4 outlets remotely to reboot equipment or shed nonessential loads
• Automatic Voltage Regulation (AVR)
  • Maintains 120V nominal output over input range of 83V-147V without using battery power
• EMI/RFI Line Noise Filtering
  • Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance
• Interactive LCD Screen
  • Front-panel LCD signals operating mode, load level, voltage, battery charge and estimated runtimes
  • Rotates for easy viewing in rack-mount or tower configurations
• Network Management Cards
  • Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX, SNMPWEBCARD and RELAYIOCARD
• Communications Ports
  • USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from
• Versatile Installation Options
  • Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack
  • Mounts on wall or 2-post rack with optional 2POSTRMKITWM accessory
  • Mounts in upright tower position with optional 2-9USTAND accessory

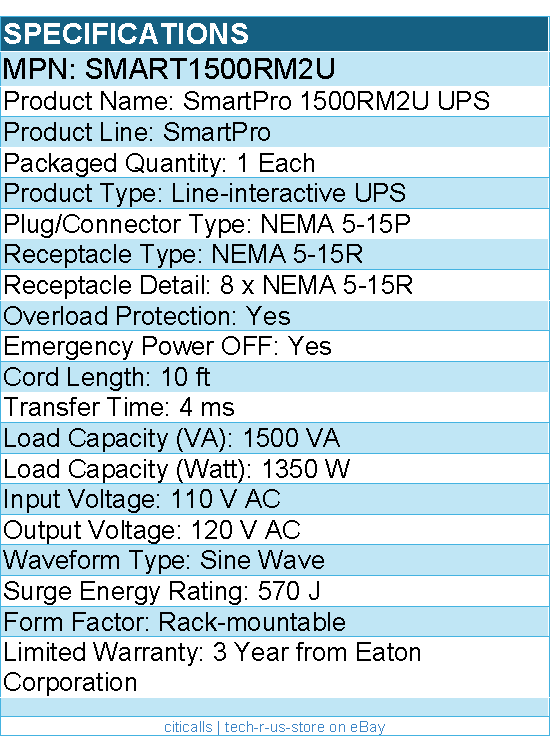

Technical Information

• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R
• Receptacle Detail: 8 x NEMA 5-15R
• Overload Protection: Yes
• Emergency Power OFF: Yes
• Cord Length: 10 ft
• Transfer Time: 4 ms

Power Description

• Load Capacity (VA): 1500 VA
• Load Capacity (Watt): 1350 W
• Input Voltage: 110 V AC
• Output Voltage: 120 V AC
• Waveform Type: Sine Wave
• Surge Energy Rating: 570 J

Management

• Network Management: SNMP/Webcard
• Alarm:
  • On Battery
  • Overload
  • Low Battery

Controls/Indicators

• Status Indicators: LED Indicator

Interfaces/Ports

• USB: Yes
• Total Number of Expansion Slots: 1

Battery Information

• DC System Voltage: 36 V DC
• Battery Characteristics: Valve-regulated
• Battery Chemistry: Lead Acid
• Backup/Run Time (Full Load): 4.50 Minute
• Backup/Run Time (Half Load): 13 Minute
• Battery Life: 6 Year
• Typical Battery Recharge Time: 4 Hour
• Hot Swappable: Yes
• Replaceable Battery: Yes

Environmental Conditions

• Maximum Operating Temperature: 104°F (40°C)
• Storage Temperature: 5°F (-15°C) - 122°F (50°C)
• Maximum Operating Elevation: 6561.68 ft
• Storage Relative Humidity: 0% - 95%
• Sound Emission (A-Weighted): 45 dB(A)

• Thermal Dissipation: 78.25 W

Physical Characteristics

• Height: 3.5"
• Width: 17.5"
• Depth: 13.5"
• Rack Height: 2U
• Form Factor: Rack-mountable

Miscellaneous

• Package Contents:
  • SmartPro 1500RM2U UPS
  • Mounting hardware for 4 post rackmount installation
  • Cabling for USB & DB9 monitoring and EPO switching
  • PowerAlert unattended shutdown and UPS/Power monitoring software
  • Warranty information

Certifications & Standards:

• UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications

Recycled: No

Country of Origin: Taiwan

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

• Limited Warranty: 3 Year from Eaton Corporation
