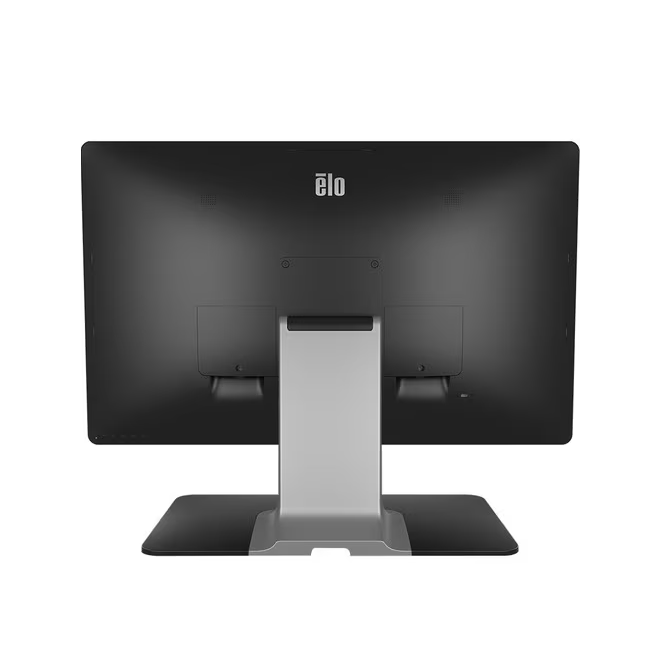

Elo E351600 2202L 22" Class LCD Touchscreen Monitor - 16:9 - 21.5" Viewable

General Information

• Manufacturer: Elo Touch Solutions, Inc
• Brand Name: Elo
• Manufacturer Part Number: E351600
• Product Model: 2202L
• Product Name: 2202L 22" Touchscreen Monitor
• Product Series: 02
• Packaged Quantity: 1
• Product Type: LCD Touchscreen Monitor
  • The Full HD lcd touchscreen monitor is perfect for point-of-sale, hospitality, and many other retail applications
  • The Full HD screen size with 1920x1080 resolution provides the native display of a Full HD video source without any degradation due to down-sampling technologies
  • LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
  • The 3,000:1 contrast ratio actualizes fantastic hues for an exceptional visual experience
  • The 250 Nit brightness gives an exceptionally visible display for clear and consistent on-screen pictures
  • Features HDMI input to get connected with the top of the line PCs, Blu-ray players, and cutting edge gaming consoles

Technical Information

• Aspect Ratio: 16:9
• Features:
• On-screen Display (OSD)
• Cable Lock Slot
• Viewable Screen Size: 21.5"
• Screen Mode: Full HD
• Horizontal Viewing Angle: 178°
• Vertical Viewing Angle: 178°
• Backlight Technology: LED
• Panel Technology: Thin Film Transistor (TFT)
• Curved Screen: No
• Screen Size Class: 22"

Physical Characteristics

• Weight (Approximate): 10.47 lb
• Height: 12.9"
• Width: 20.7"
• Depth: 1.7"
• Weight with Stand (Approximate): 14.88 lb
• VESA Mount Compatible: Yes
• VESA Mount Standard: 100 x 100
• Height with Stand: 15.11"
• Width with Stand: 20.74"
• Depth with Stand: 7.61"
• Product Color: Black
• Color Family: Black

Power Description

• Operating Power Consumption: 22.50 W
• Standby Power Consumption: 690 mW
• Off-Mode Power Consumption: 320 mW

Touchscreen Information

• Touchscreen Type: TouchPro Projected Capacitive
• Touchscreen: Yes
• Multi-touch Screen: Yes

Video

• Contrast Ratio: 3,000:1
• Color Supported: 16.7 Million Colors
• Maximum Resolution: 1920 x 1080
• Native Contrast Ratio: 1,000:1

Built-in Devices

• Built-in Devices: USB Hub

Audio

• Speakers: Yes
• Number of Speakers: 2
• Speaker Output Power: 4 W

Interfaces/Ports

• USB: Yes
• HDMI: Yes
• VGA: Yes

Miscellaneous

• Package Contents
  • 2202L 22" Touchscreen Monitor
  • Japanese Language Regulatory Information Pamphlet
  • Quick Install Guide
  • 3 x Tie Wraps
  • VGA Cable
  • HDMI Cable
  • Touch USB Cable
  • Audio Cable
  • Power Brick
  • Power Cable
  • EEI Label
• TAA Compliant: No
• Mean Time Between Failures (MTBF): 5.7 Year
