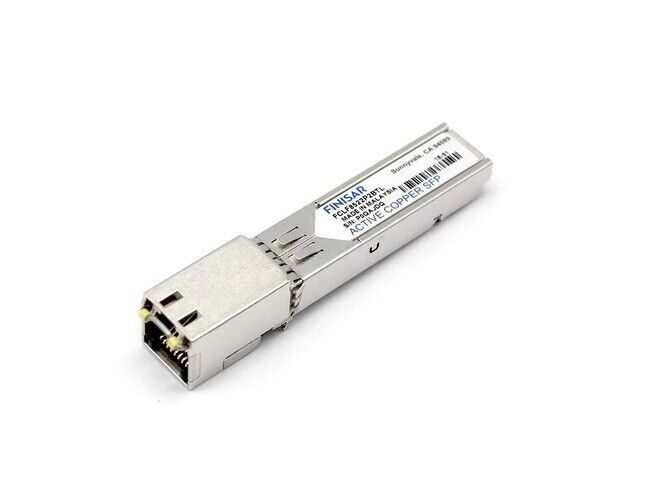

Finisar FCLF8522P2BTL Network SFP Transceiver 1000Base-T RoHS 1.25Gb s

Vendor: Finisar

SKU:  156686
MPN:  FCLF8522P2BTL

Marketing Information
Finisars FCLF8522P2BTL 1000BASE-T Copper SmallForm Pluggable (SFP) transceivers is based on the SFP Multi Source Agreement (MSA)1. It iscompatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE Std802.32. It is RoHS compliant and lead-free per Directive 2002/95/EC3 and Finisar ApplicationNote AN-2038. The 1000BASE-T physical layer IC (PHY) can be accessed via I2C, allowingaccess to all PHY settings and features. The FCLF8522 shall support both RX_LOS pin for linkindication and 1000BASE-X auto-negotiation.

Detail Specifications
Lead Free
Yes

EU RoHS Compliant
Yes

Status
ACTIVE
Body Height
8.46 mm

Body Breadth
13.27 mm

Connection Type
SFP CONNECTOR
Terminal Finish
NOT SPECIFIED

Body Length or Diameter
47.7 mm

Operating Temperature-Max
85 Cel
Operating Temperature-Min
-40 Cel

Data Rate (Rx)
1250 Mbps

Data Rate (Tx)
1250 Mbps
