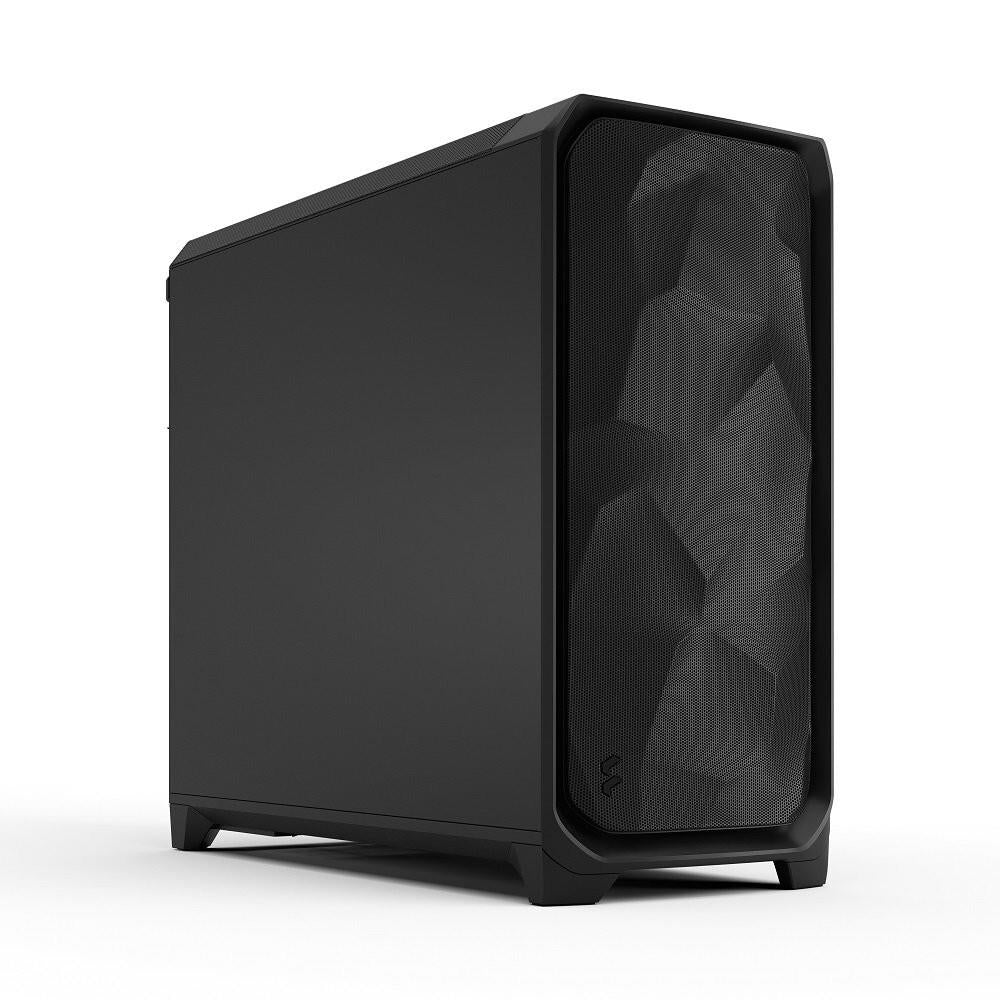

Fractal Design FD-C-MES3X-01 Meshify 3 XL E-ATX Full Tower PC Case Black Chassis

MPN: FD-C-MES3X-01

Main Features

• Features

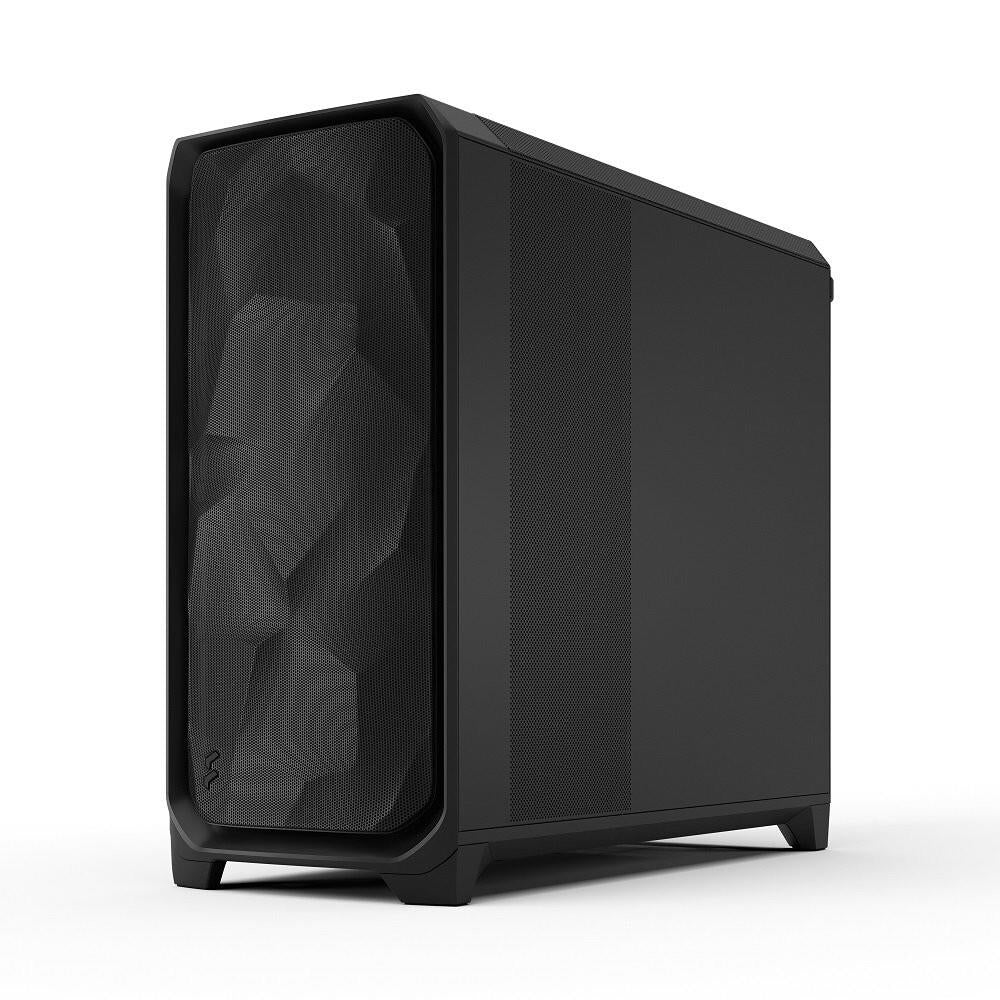

• Ventilated front mesh panel with sleek, sculpted expression
• Engineered for cooling performance with ample ventilation
• Spacious interior with multi-radiator support, well-suited for custom loops
• Includes three Momentum 14 fans, with space for up to ten 140 mm fans

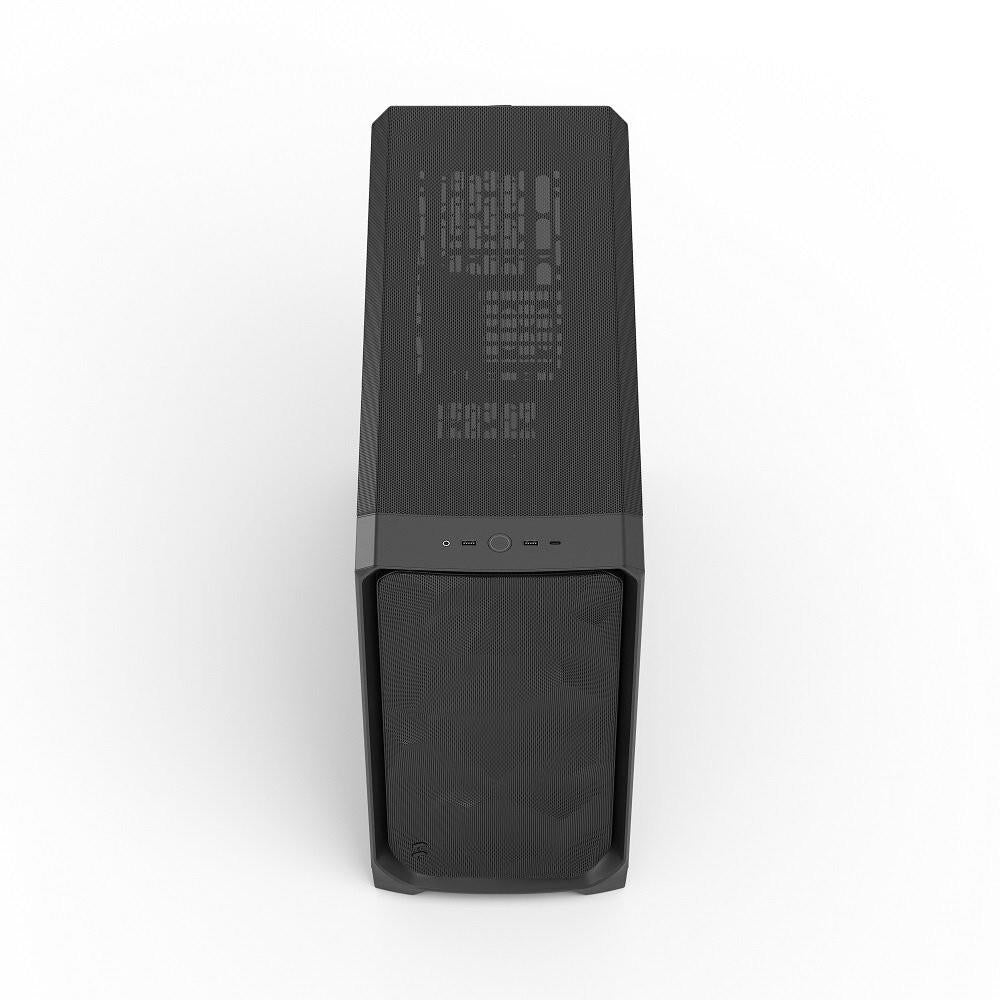

• Easily accessible I/O with a 20 Gbps USB-C, two USB-A ports and an audio jack
• Clean interior with new cable aligners for easy cable management
• Air guide which directs air towards components to further improve GPU cooling
• Supports up to 420 mm top radiators and 360 mm front and side radiators, with removable brackets for easy installation
• Type: ATX Full Tower
• Color: Black
• Case Material: Steel
• With Power Supply: No
• Power Supply Mounted: Bottom
• Power Supply: ATX
• Motherboard Support: E-ATX / ATX / mATX / Mini-ITX / EE-ATX / SSI-CEB / SSI-EEB
• Side Panel Window: No
• LED: No
• Removable Filter: PSU
• External 5.25" Drive Bays: 0
• Internal 3.5" Drive Bays: 2 x 3.5" HDD or 4 x 2.5" SSD behind MB tray
• Internal 2.5" Drive Bays: 1 x Dedicated 2.5" SSD on case floor
• Expansion Slots: 7
• Front Ports: 1 x USB Type-C 20Gbps, 2 x USB 3.0, 1x Audio Combo Jack
• Fan Options
• Total fan mounts: 7x 120/140 + 3x 140 mm or 4x 120/140 mm + 3x 140 mm + 2x 180 mm
• Front: 3x 120/140 mm or 2x 180 mm (3 x Momentum 14 RGB PWM included)
• Top: 3 x 120/140 mm
• Rear: 1 x 120/140 mm
• Side: 3x 140 mm (120 mm w/ radiator only)
• Radiator Options
• Front: Up to 360/280 mm
• Top: Up to 360/420 mm
• Rear: 120/140 mm
• Side: Up to 360/280 mm
• Max GPU Length: 512 mm
• Max GPU Height: 189 mm (slot 7, including cables)
• Max CPU Cooler Height: 182 mm
• Max PSU Length: 230 mm
• Cable routing space: 37.5 mm
• Case Dimensions (LxWxH)
• 575 x 245 x 515 mm
• 565 x 245 x 515 mm w/o feet/protrusions/screws
• Weight: 10.5 kg
• Package Dimensions (LxWxH): 688 x 350 x 596 mm
• Package Weight: 12.4 kg
• Package Contents
• Meshify 3 XL case
• User manual
• Accessory box
