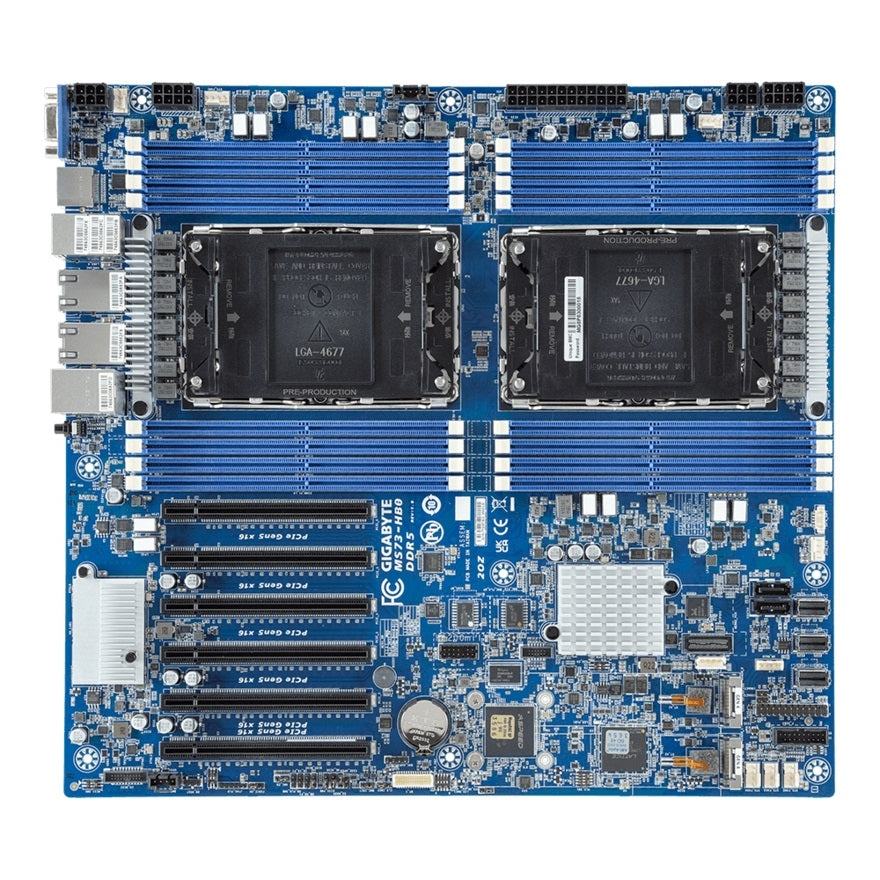

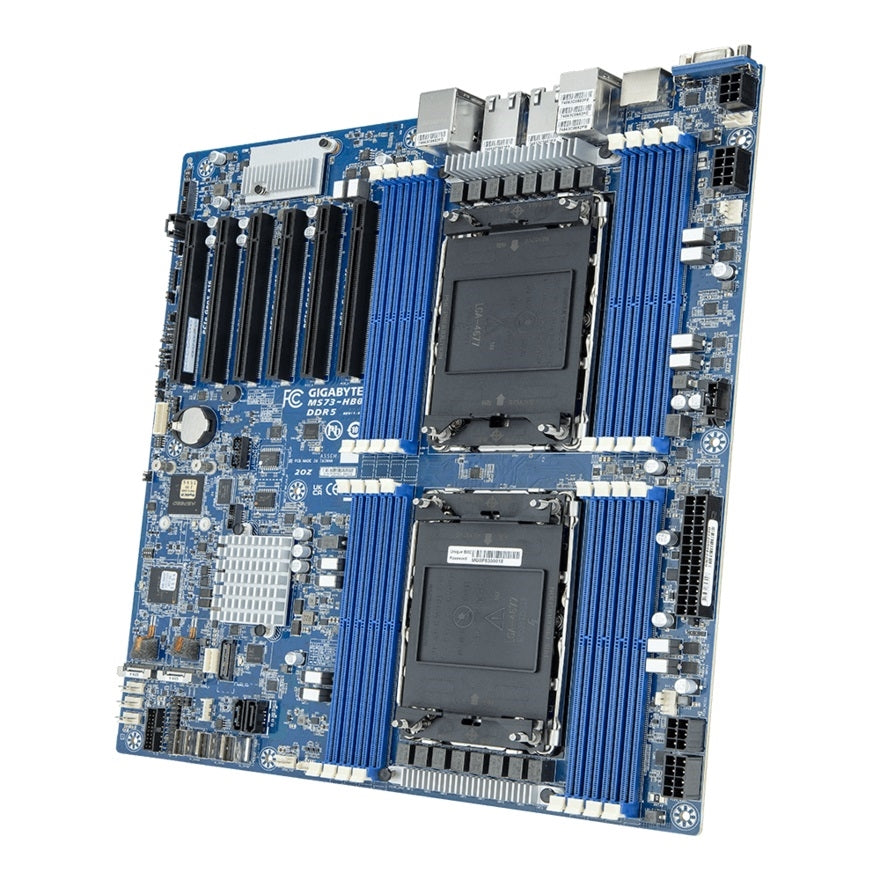

Gigabyte MS73-HB0 Motherboard - Emmitsburg LGA4677 Max128GB DDR5 EATX Brown Box

Marketing Information

Motherboard - 5th/4th Gen Intel® Xeon® Scalable - E-ATX DP 10Gb/s Intel Ethernet Controller

• Dual 5th/4th Gen Intel® Xeon® Scalable Processors
• 8-Channel RDIMM DDR5, 16 x DIMMs
• Intel® C741 Chipset
• 2 x 10Gb/s BASE-T LAN ports via Intel® X710-AT2
• 2 x 1Gb/s LAN ports via Intel® I210-AT
• 3 x SlimSAS connectors for 12 x SATA 6Gb/s
• 2 x SATA 6Gb/s ports
• 2 x M.2 slots with PCIe Gen4 x4 interface
• 6 x PCIe Gen5 x16 expansion slots
  • Accelerating Artificial Intelligence and Leading Efficiency
  • Engineering richer features in a revolutionary platform, Intel has made an incredible jump in processor performance in the business transformation journey. AI and deep learning performance will benefit from the built-in AI acceleration engines, while networking, storage, and analytics leverage other specialized accelerators in the 4th & 5th Gen Intel Xeon Scalable processors. Adding a host of new features to target a wide range of workloads, the new families of Intel Xeon processors will deliver even better CPU performance and performance per watt, and do so on a PCIe 5.0 platform with 2x the prior gen throughput to greatly speed up data movement to and from GPUs and storage. For this new platform, GIGABYTE has products ready to get the most out of Intel Xeon CPU-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.

Detail Specifications

Form Factor

• E-ATX
• 304.8W x 330.2D mm

CPU

• 5th Generation Intel Xeon Scalable Processors
• 4th Generation Intel Xeon Scalable Processors
• Dual processor, TDP up to 270W
• Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket

• 2 x LGA 4677
• Socket E

Chipset

• Intel C741

Memory

• 16 x DIMM slots
• DDR5 memory supported only
• 8-Channel memory architecture
• RDIMM up to 96GB supported
• 3DS RDIMM up to 256GB supported
• 5th Gen Intel Xeon: Up to 5600 MT/s
• 4th Gen Intel Xeon: Up to 4800 MT/s

LAN

• 2 x 10Gb/s BASE-T LAN ports (Intel X710-AT2)
• 2 x 1Gb/s LAN ports (Intel I210-AT)
• Support NCSI function (by switch setting)
• 1 x 10/100/1000 Mbps Management LAN

Video

• Integrated in Aspeed AST2600
• 2D Video Graphic Adapter with PCIe bus interface
• 1920x1200 at 60Hz 32bpp

Storage Interface

• PCH:
• - 3 x SlimSAS connectors for 12 x SATA 6Gb/s
• - 2 x SATA 6Gb/s ports

RAID

• Intel SATA RAID 0/1/10/5

Expansion Slots

• Slot_6: PCIe x16 (Gen5 x16) slot, from CPU_0
• Slot_5: PCIe x16 (Gen5 x16) slot, from CPU_1
• Slot_4: PCIe x16 (Gen5 x16) slot, from CPU_1
• Slot_3: PCIe x16 (Gen5 x16) slot, from CPU_0
• Slot_2: PCIe x16 (Gen5 x16) slot, from CPU_0
• Slot_1: PCIe x16 (Gen5 x16) slot, from CPU_1
• 2 x M.2 slots:
• - M-key
• - PCIe Gen4 x4, from CPU_0
• - Support 2280/22110 cards

Internal I/O

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 2 x 6-pin ATX 12V power connectors
• 2 x CPU fan headers
• 4 x System fan headers
• 1 x USB 3.2 Gen1 header
• 2 x M.2 slots
• 3 x SlimSAS connectors
• 2 x SATA connectors
• 1 x VROC connector
• 1 x Front panel header
• 1 x Backplane board header
• 1 x PMBus header

1 x IPMB header

1 x TPM header

Warranty Information

• 1 year from Gigabyte
