GRI TSC-20-IND Tamper Switch, Closed Loop

MPN: TSC-20-IND

Product Overview

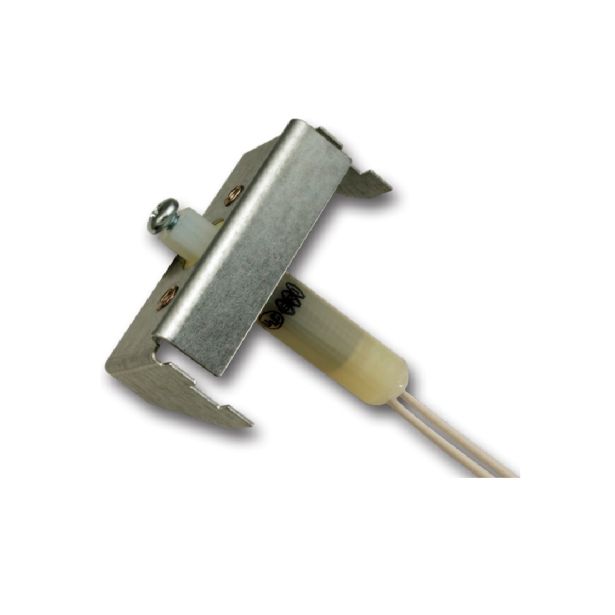

• The adjustable plunger actuated TS series was developed to provide a tamper switch with a smaller diameter for applications where a normal plunger or roller ball type switch is too large. The 3/8” diameter is ideal for a variety of door and window applications. The oval flange allows the switch to be solidly anchored where needed. The design also resists locking problems caused by expansion or contraction. Available with a bracket for box tamper. Made of nylon for flexibility, the stainless steel spring and sealed contact insure a long service life.

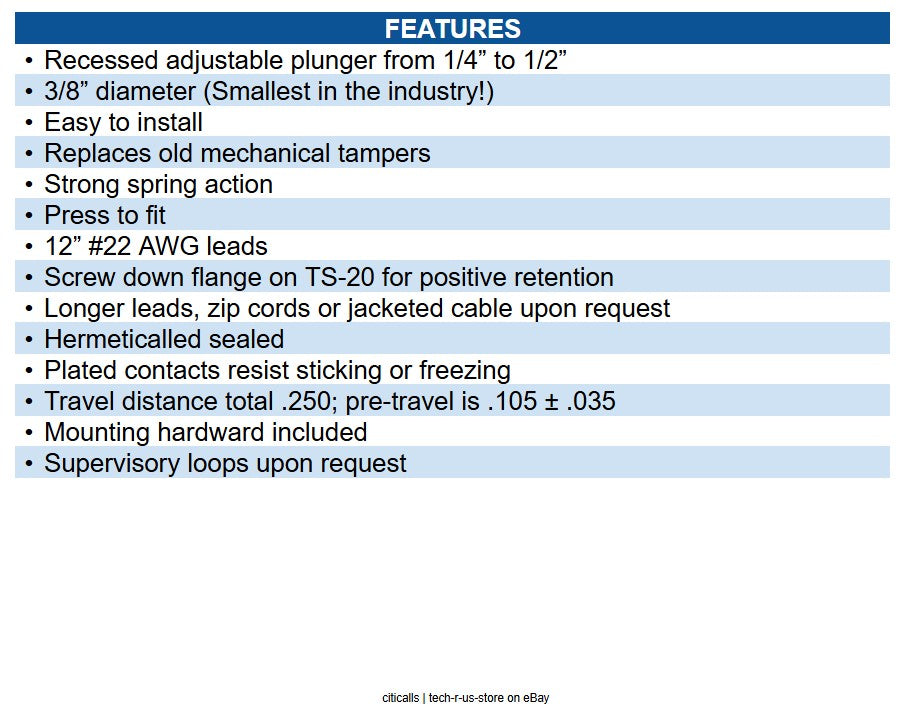

Features

• Recessed adjustable plunger from 1/4” to 1/2”
• 3/8” diameter (Smallest in the industry!)
• Easy to install
• Replaces old mechanical tampers
• Strong spring action
• Press to fit
• 12” #22 AWG leads
• Screw down flange on TS-20 for positive retention
• Longer leads, zip cords or jacketed cable upon request
• Hermeticalled sealed
• Plated contacts resist sticking or freezing
• Travel distance total .250; pre-travel is .105 ± .035
• Mounting hardward included
• Supervisory loops upon request
