HES EEB2 Emergency Exit Button w/ 30 Second Release Single Gang Interchangeable

MPN: EEB2

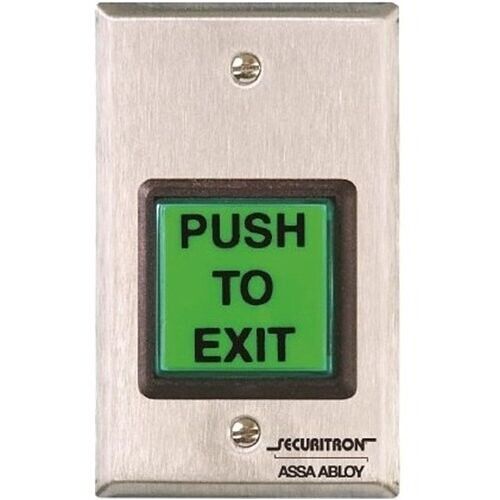

2" Square Emergency Exit Button with 30 second push button release. The device is mounted on a stainless steel, single-gang faceplate and features internal double-break wiring. The button is field selectable at 12 or 24VDC to match the voltage of the triggered lock. The EEB2 can be used as a backup access control device in the event of an exit sensor failure. The red and white wires from the EEB2/3N must receive voltage from the same power supply. Weather Option:WCC and WBB available for all Single Gang Push Buttons, Keyswitches and Keypads. Safety Notice:Securitron's UL294 certification indicates that when the EEB is used with the XMS Motion Sensor, it meets the NFPA Life Safety Code 101 requirements for exit of access-controlled egress doors.

Features

• Retriggerable
• For indoor use only
• Mounted next to door
• Single Gang or Narrow Stile
• SPDT 3 Amp wet N/C contacts
• EEB3N includes switchable green and red lenses
• EEB2 includes switchable green, red and blue ADA lenses
• Momentarily pressing the button releases door for 30 seconds
• Operates on 12 or 24 VDC (must be same voltage as the installed lock)
• Emergency Exit Buttons offer additional safety, as required by code, for possible malfunction of motion exit sensor

Shipping Notes:

Our HES products are shipping from any of the following locations:

• Monrovia, CA 91016 (Most usual)
• Southaven, Mississippi 38671
• Greenville, South Carolina 29601
