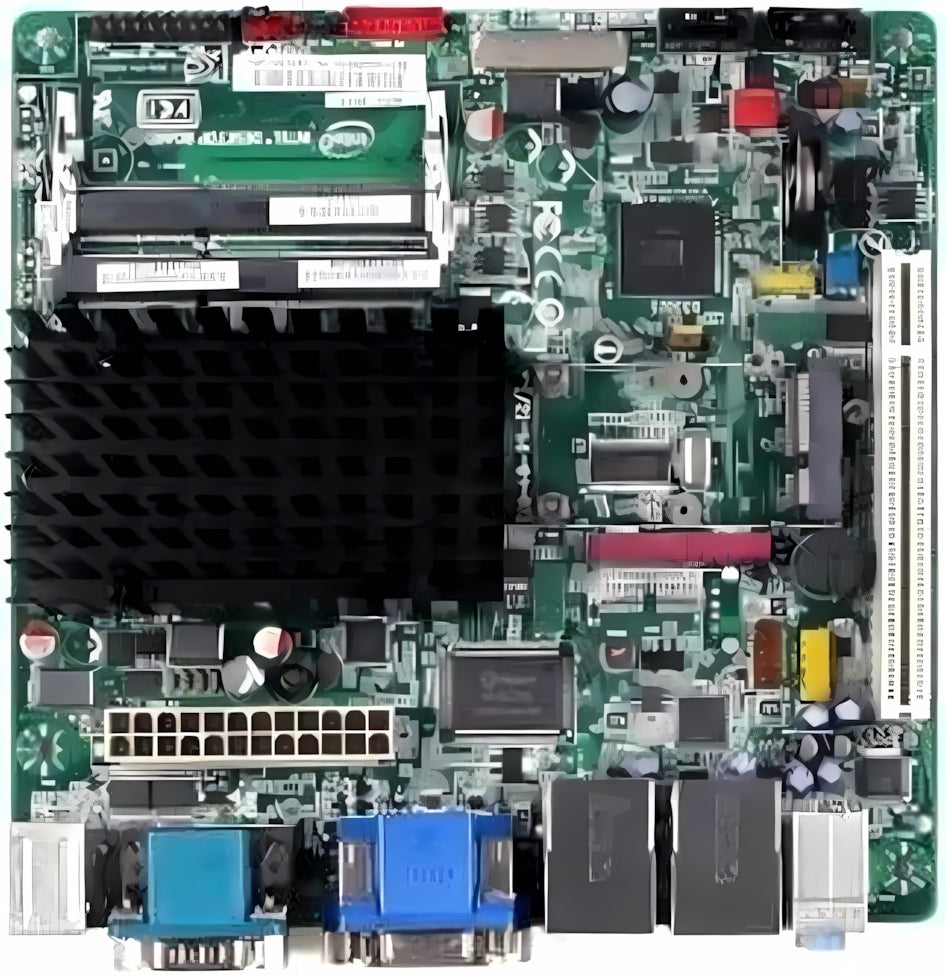

Intel BLKD2500CCE ATOM D2500CCE NM10 Express Mini ITX Motherboard New-Sealed

SPECIFICATIONS

• Brand: Intel
• Model: BLKD2500CCE
• Processor: 1.86 GHz Intel Atom D2500 (dual core)
• Chipset: Intel NM10
• System Memory: 2 DDR3 800/1066 SO-DIMM, Up to 4 GB of memory
• Graphics: Intel Integrated GMA 3600
• PCI: PCI Express Mini Card
• Onboard Serial ATA: 2 SATA (3 Gb/sec.) connectors
• Onboard USB: 7 USB 2.0
• Onboard LAN: Intel 82574L 10/100/1000
• Onboard Audio: Intel HD Audio (6+2 channels)
• Back Panel I/O: 4 USB 2.0 ports, 1 VGA port, 2 LAN ports, 1 DVI-I port, 2 RS-232 COM ports, 1 PS2 keyboard port, 1 PS2 mouse port, 3 Audio jacks: line-out, line-in, mic-in
• BIOS: Intel BIOS 8 Mb flash memory
• Form Factor: Mini-ITX (17 x 17 cm)

I/O CONNECTORS

• 3 USB 2.0 via 2-pin headers
• 2 SATA connectors
• 1 Front panel audio pin header
• 1 Front panel pin header
• Fan pin header
• 1 LPT pin header
• 1 LVDS connector (24-bit, dual channel)
• 2 RS-232 COM pin headers (AT/Everex)
• 1 TPM Header
• 24-pin ATX connector
