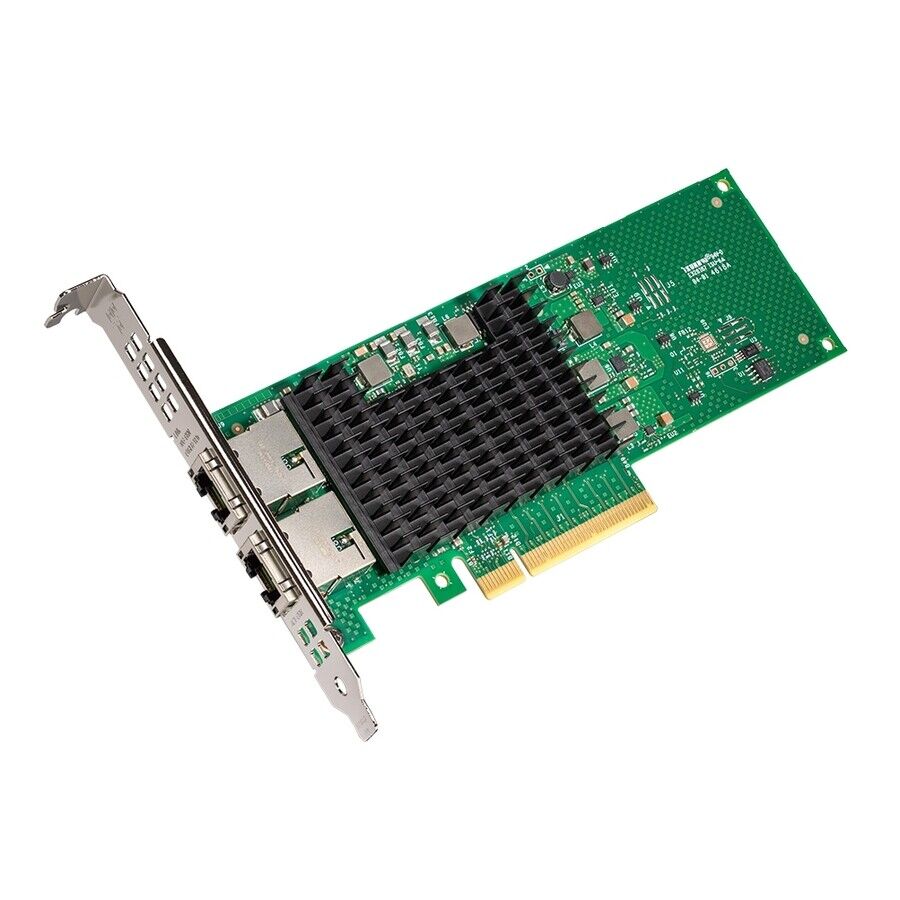

Intel X710T2L Network Card Ethernet Network Adapter X710-T2L Retail

General Information
Manufacturer: Intel Corporation
Brand Name: Intel
SKU: 236901
Manufacturer Part Number: X710T2L
Product Series: 700
Product Model: X710-T2L
Product Name: Ethernet Network Adapter X710-T2L

Marketing Information:
Simplify technology transitions with the Intel® Ethernet Network Adapter X710-T2L and X710-T4L.Autonegotiation between port speeds provides maximum flexibility in dual and quad-port 10GBASE-T configurations. These low-power adapters also support Energy Efficient Ethernet to efficiently reduce power consumption during periods of low data activity.

The X710-T2L and X710-T4L are part of the Intel® Ethernet 700 Series, the foundation for server connectivity; providing broad interoperability, critical performance optimizations, and increased agility for Communications, Cloud, and Enterprise IT network solutions.

Interoperability - Multiple speeds and media types for broad compatibility backed by extensive testing and validation.
Optimization - Intelligent offloads and accelerators to unlock network performance in servers with Intel® Xeon® processors.
Agility - Both Kernel and Data Plane Development Kit (DPDK) drivers for scalable packet processing.


The Intel® Ethernet 700 Series delivers networking performance across a wide range of network port speeds through intelligent offloads, sophisticated packet processing, and quality open-source drivers.

All Intel® Ethernet 700 Series Network Adapters include these feature-rich technologies:

Flexible and Scalable I/O for Virtualized Infrastructures

Intel® Virtualization Technology (Intel® VT), delivers outstanding I/O performance in virtualized server environments.

I/O bottlenecks are reduced through intelligent offloads, enabling near-native performance and VM scalability. These offloads include Virtual Machine Device Queues (VMDq) and Flexible Port Partitioning using SR-IOV with a common Virtual Function driver for networking traffic per Virtual Machine (VM). Host-based features supported include:

VMDQ for Emulated Path: VMDQ, enables a hypervisor to represent a single network port as multiple network ports that can be assigned to the individual VMs. Traffic handling is offloaded to the network controller, delivering the benefits of port partitioning with little to no administrative overhead by the IT staff.

SR-IOV for Direct Assignment: Adapter-based isolation and switching for various virtual station instances enables optimal CPU usage in virtualized environments.

Up to 128 virtual functions (VFs), each VF can support a unique and separate data path for I/O related functions within the PCI Express hierarchy.
Use of SR-IOV with a networking device, for example, allows the bandwidth of a single port (function) to be partitioned into smaller slices that can be allocated to specific VMs or guests, via a standard interface.
Product Type:
10Gigabit Ethernet Card

Technical Information
Chipset Manufacturer:
Intel

Chipset Model:
X710-AT2

Interfaces/Ports
Host Interface:
PCI Express 3.0 x8

Total Number of Ports:
2

Number of Network (RJ-45) Ports:
2

Media & Performance
Media Type Supported:
Twisted Pair

Data Transfer Rate:
10 GB/s

Network & Communication
Network Technology:
10GBase-T

Physical Characteristics
Form Factor:
Plug-in Card

Bracket Height:
Full Height

Application/Usage:
Network
Data Center
Device Supported:
Server

Environmentally Friendly:
Yes

Environmental Certification:
EU RoHS
