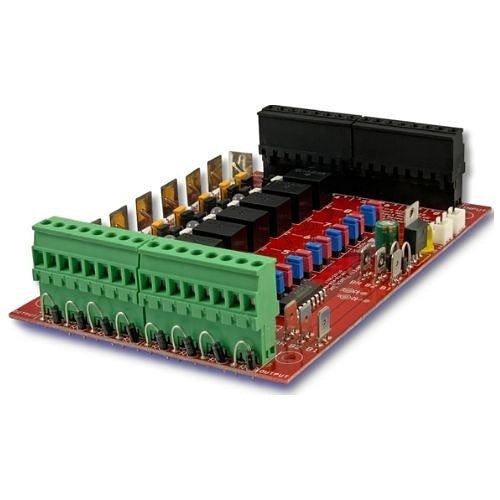

LifeSafety Power C4-BOXED 4-OUT Relay Lock Power Controller Module 3A Fuse

MPN: C4-BOXED

Product Overview

• The FlexPower C4, C8 lock controller modules add either 4 or 8 lock control outputs to a FlexPower power supply and are typically supplied as part of a system or purchased as an expansion piece to an existing system. Each module provides either 4 or 8 access control inputs capable of voltage or dry contact activation. Each module provides either 4 or 8 lock outputs, each one programmable for fail-safe, fail-secure, dry contact, and fire alarm over ride for egress lock control.

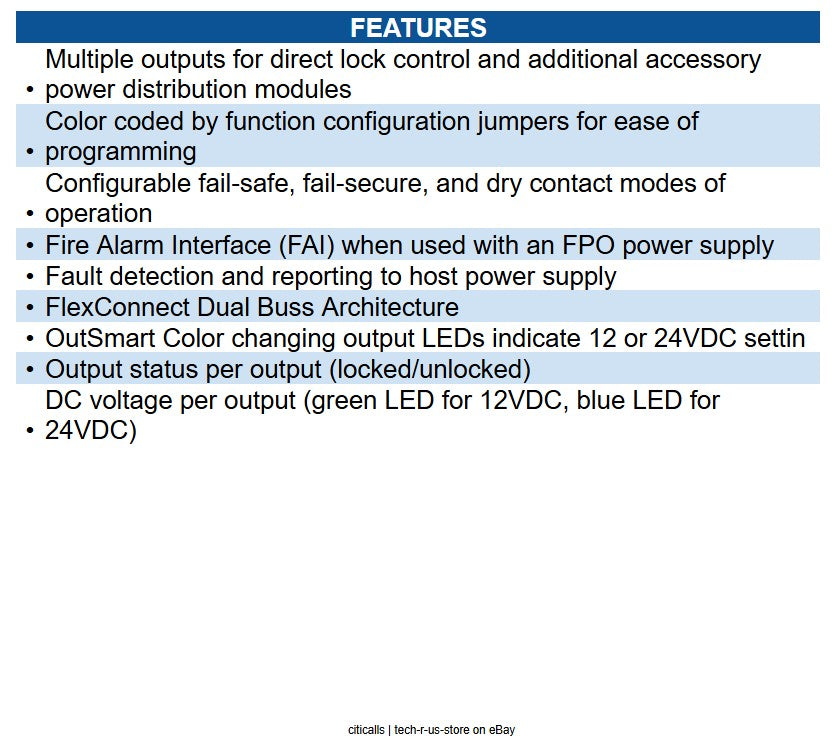

Features

• Multiple outputs for direct lock control and additional accessory power distribution modules
• Color coded by function configuration jumpers for ease of programming
• Configurable fail-safe, fail-secure, and dry contact modes of operation
• Fire Alarm Interface (FAI) when used with an FPO power supply
• Fault detection and reporting to host power supply
• FlexConnect Dual Buss Architecture
• OutSmart Color changing output LEDs indicate 12 or 24VDC settin
• Output status per output (locked/unlocked)
• DC voltage per output (green LED for 12VDC, blue LED for 24VDC)
