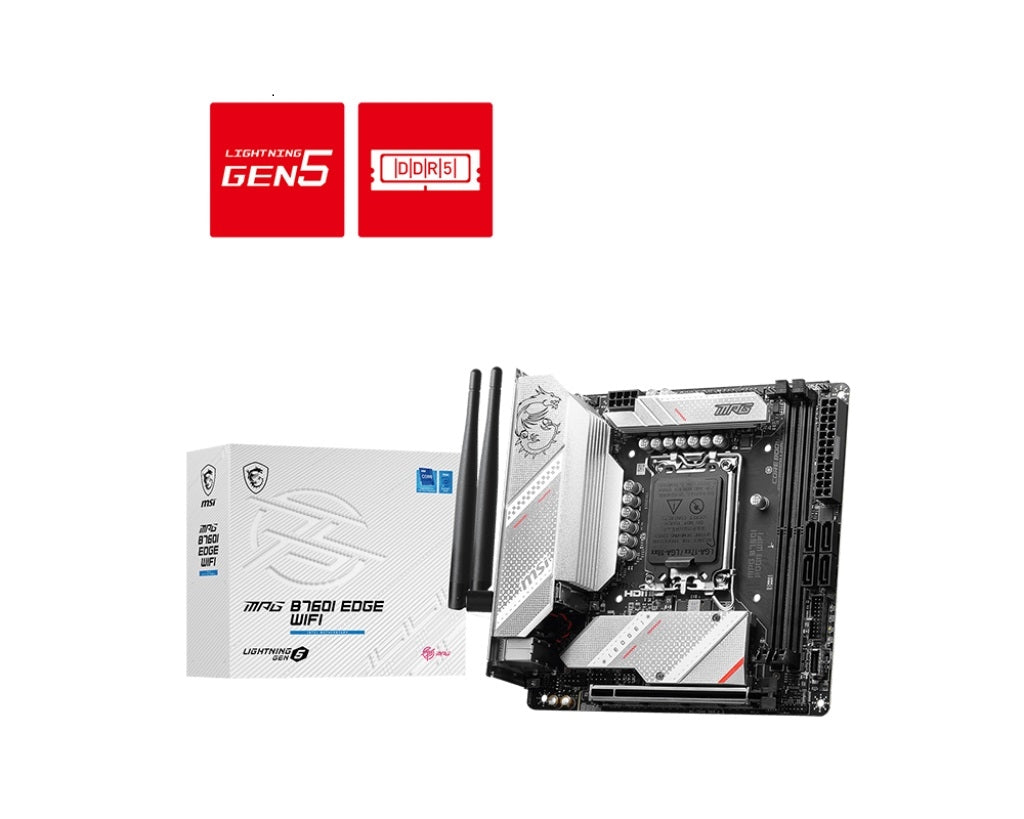

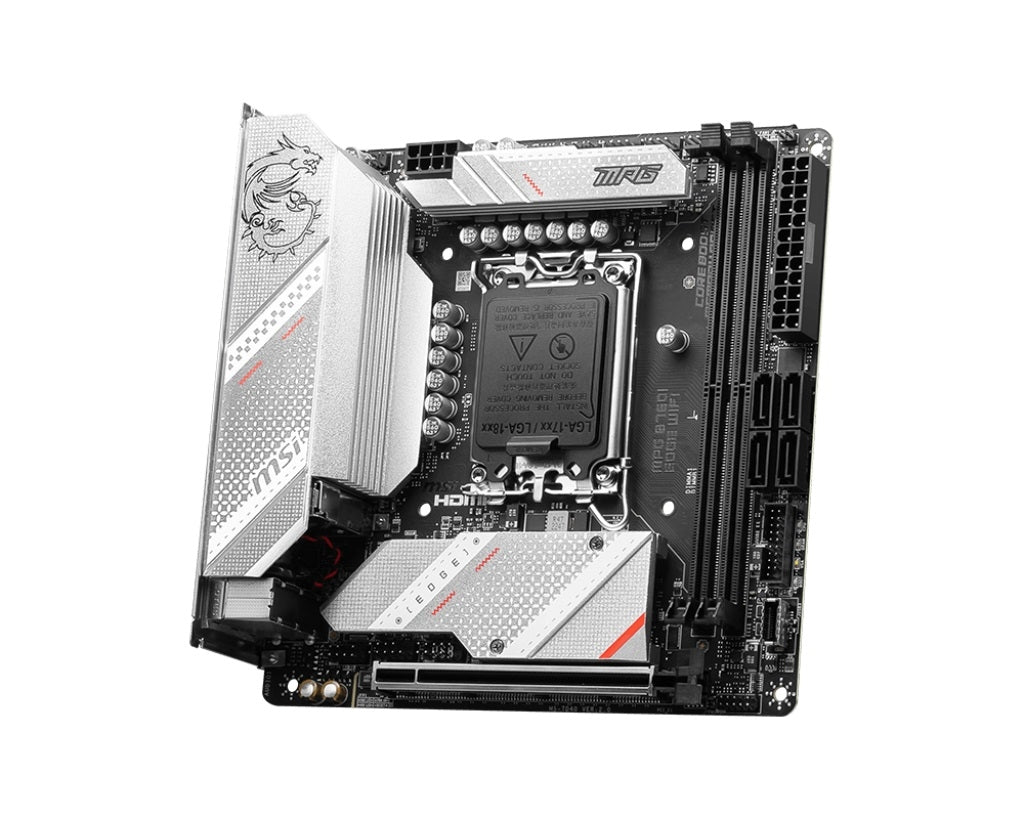

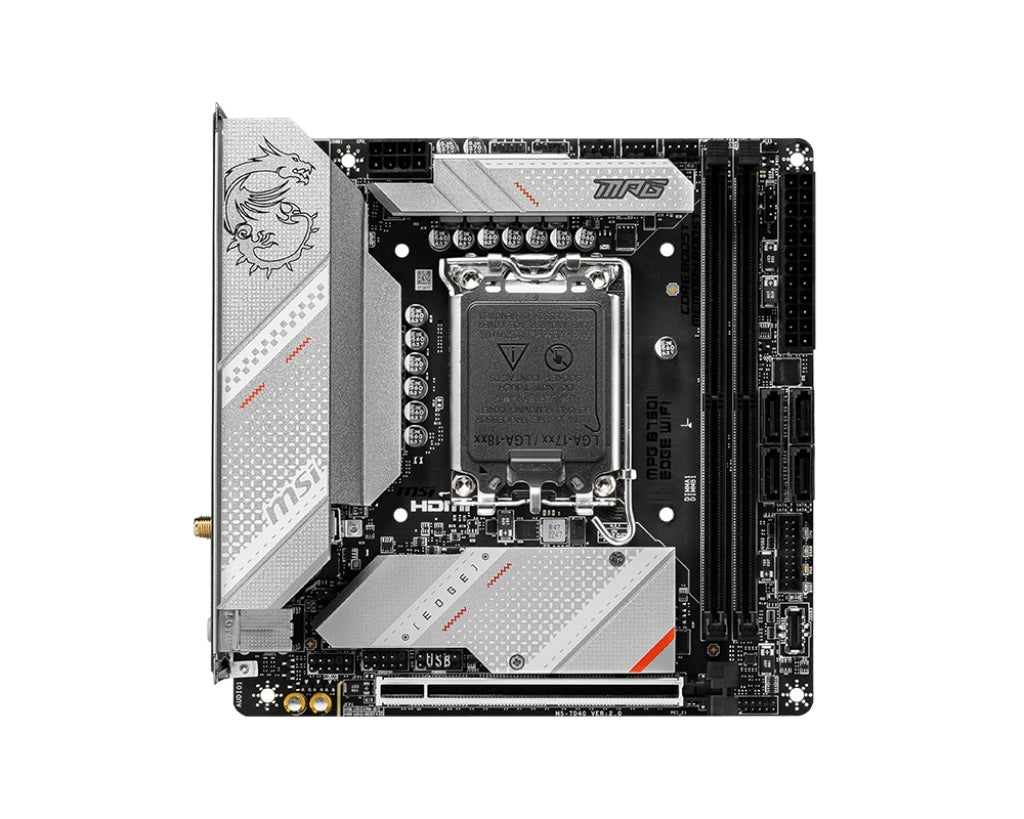

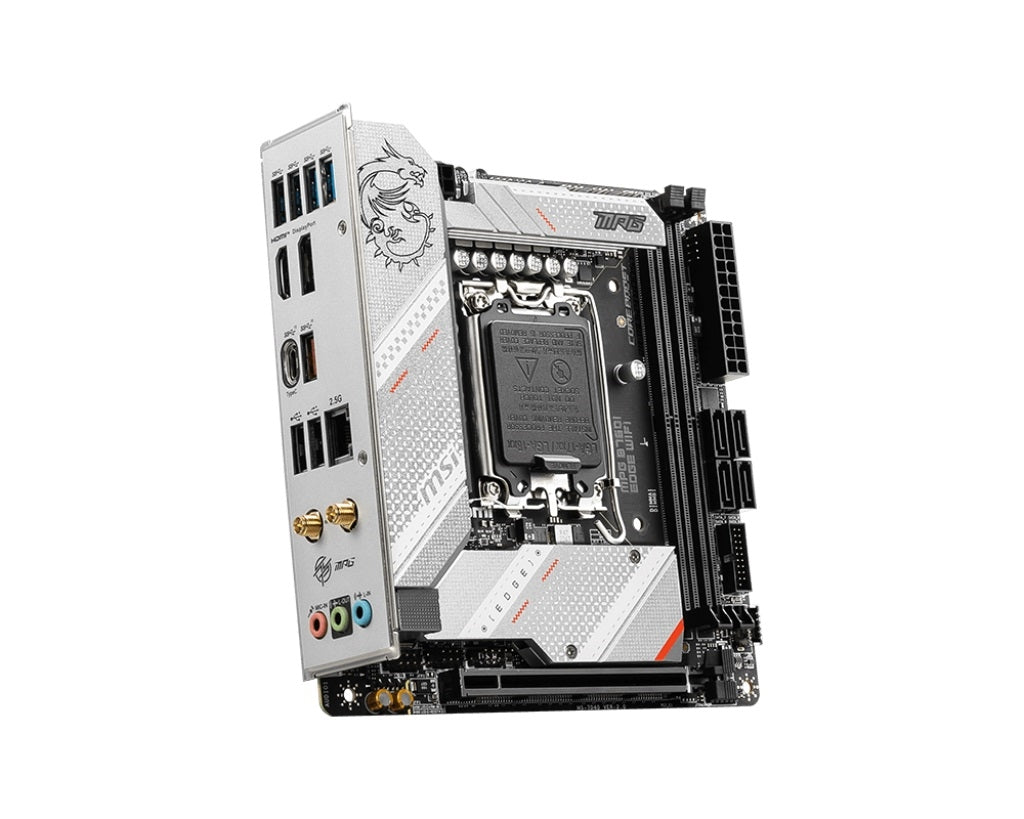

MSI B760IEDGEWIFI MPG B760I EDGE WIFI Gaming Desktop Motherboard

Marketing Information

MPG B760I EDGE WIFI employs silver white color scheme to show off different personality and identity. Besides being stylish, it is also powerful.

• Supports 13th /12th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1700 socket
• Supports DDR5 Memory, up to 7200+(OC) MHz
• Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2
• Enhanced Power Design: Direct 8+1+1 phases power, Core Boost, Memory Boost
• Premium Thermal Solution: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
• 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
• High Quality PCB: 8-layer PCB made by server grade level material
• Pre-installed I/O Shield: Better EMI protection and more convenience for installation

Detail Specifications

• CHIPSET: INTEL B760
• CPU: Supports 12th/13th Gen Intel CoreTM Processors, Pentium Gold and Celeron Processors LGA 1700
• MEMORY:
• 2x DDR5, Maximum Memory Capacity 96GB
• Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
• Max. overclocking frequency:
• - 1DPC 1R Max speed up to 7200+ MHz
• - 1DPC 2R Max speed up to 6600+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel Extreme Memory Profile (XMP)
• ONBOARD GRAPHICS:
• 1x HDMITM
• Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz1
• 1x DisplayPort
• Support DP 1.4, maximum resolution of 8K 60Hz1
• 1 Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• SLOT:
• 1x PCI-E x16 slot (Qty)
• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• STORAGE:
• 2x M.2 (Qty)
• M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280 devices
• M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
• 4x SATA 6G (Qty)
• RAID:
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• USB:
• 2x USB 2.0 (Rear)
• 2x USB 2.0 (Front)
• 4x USB 3.2 Gen1 Type A (Rear)
• 2x USB 3.2 Gen1 Type A (Front)
• 1x USB 3.2 Gen2 Type A (Rear)
• 1x USB 3.2 Gen2 Type C (Rear)
• 1x USB 3.2 Gen2 Type C (Front)
• LAN:
• Realtek RTL8125BG 2.5Gbps LAN
• WIRELESS LAN and BLUETOOTH
• Intel Wi-Fi 6E
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz1 (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth 5.3, FIPS, FISMA
• 1 Wi-Fi 6E 6GHz may depend on every countrys regulation and will be ready in Windows 11.
• 2 Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
• AUDIO:
• Realtek ALC897 Codec
• 7.1-Channel USB High Performance Audio
• INTERNAL IO:
• 1x Power Connector (ATX_PWR)
• 1x Power Connector (CPU_PWR)
• 1x CPU Fan
• 1x Pump Fan
• 1x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Addressable V2 RGB LED connector (JARGB_V2)
• 1x RGB LED connector (JRGB)
• 1x TPM pin header (Support TPM 2.0)
• 2x USB 2.0 ports
• 2x USB 3.2 Gen1 Type A ports
• 1x USB 3.2 Gen2 Type C ports
• LED FEATURE:
• 4x EZ Debug LED

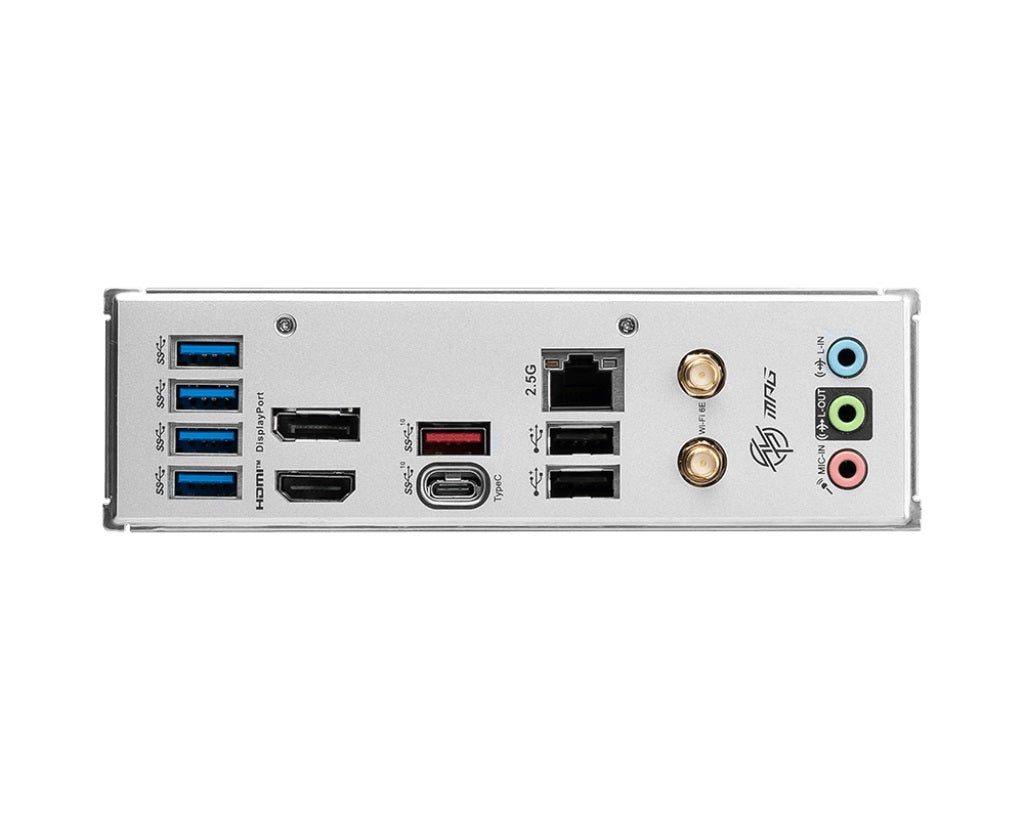

• BACK PANEL PORTS:
• USB 3.2 Gen 1 5Gbps
• Display Port
• USB 3.2 Gen 2 10Gbps
• 2.5G LAN
• Audio Connectors
• HDMITM
• USB 3.2 Gen 2 10Gbps (Type-C)
• USB 2.0
• Wi-Fi / Bluetooth
• OPERATING SYSTEM:
• Support for Windows 11 64-bit, Windows 10 64-bit
• PCB INFO:
• Mini-ITX
• Warranty Information: 3 Years from MSI
