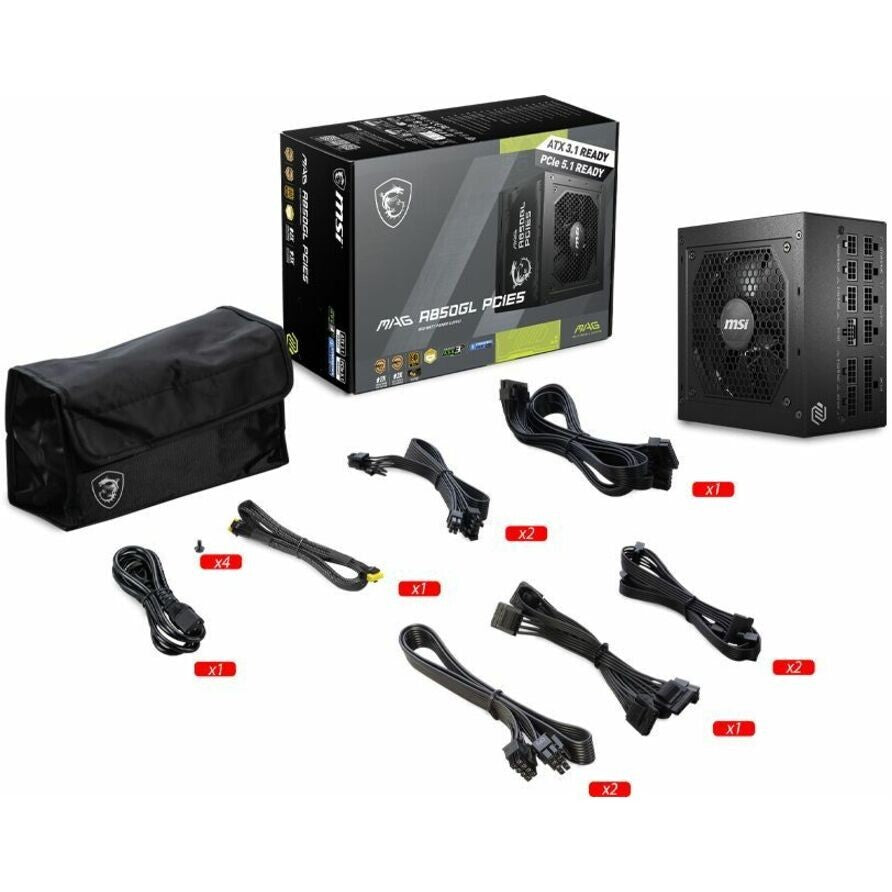

MSI MAGA850GLPCIE5 850W MAG A850GL 80 PLUs GOLD PCIE NVIDIA Support Power Supply

GENERAL INFORMATION

• Manufacturer: MSI
• Manufacturer Part Number: MAGA850GLPCIE5
• Brand Name: MSI
• Product Model: MAG A850GL PCIE5
• Product Name: MAG A850GL PCIE5 850W Power Supply
• Product Type: Power Supply

MARKETING INFORMATION:

The MPG gaming power supply can support the NVIDIA GeForce RTX™ and AMD GPUs. Prepared for the highest of requirements, the MPG power supply's IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.

TECHNICAL INFORMATION

• Efficiency: 90%
• Number of Fans: 1
• Modular: Yes
• NVIDIA SLI Supported: Yes

POWER DESCRIPTION

• Number of +12V Rails: 4
• Output Voltage:
  • 5 V DC
  • 3.3 V DC
  • 12 V DC
  • -12 V DC
• Output Voltage Detail:
  • 5 V DC @ 22 A
  • 3.3 V DC @ 22 A
  • 12 V DC @ 25 A
  • 12 V DC @ 40 A
  • -12 V DC @ 0.3 A
  • 5 V DC @ 2.5 A
• Output Current:
  • 22 A
  • 25 A
  • 40 A
  • 300 mA
  • 2.50 A
• Output Power: 850 W

PHYSICAL CHARACTERISTICS

• Form Factor: Internal
• Height: 3.4"
• Width: 5.9"
• Depth: 6.3"

OTHER INFORMATION

• Environmentally Friendly: Yes
• Energy Efficiency Certification: 80 Plus Gold
