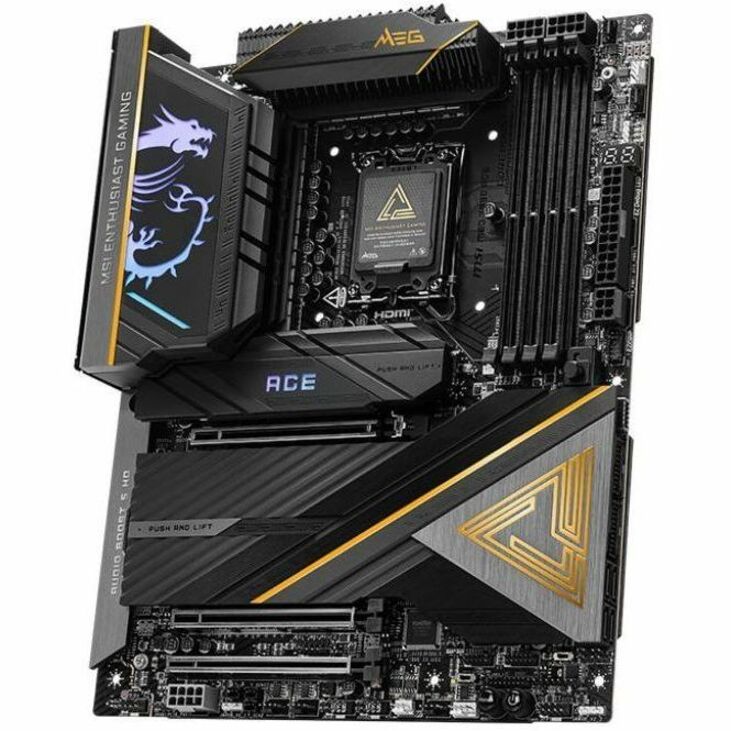

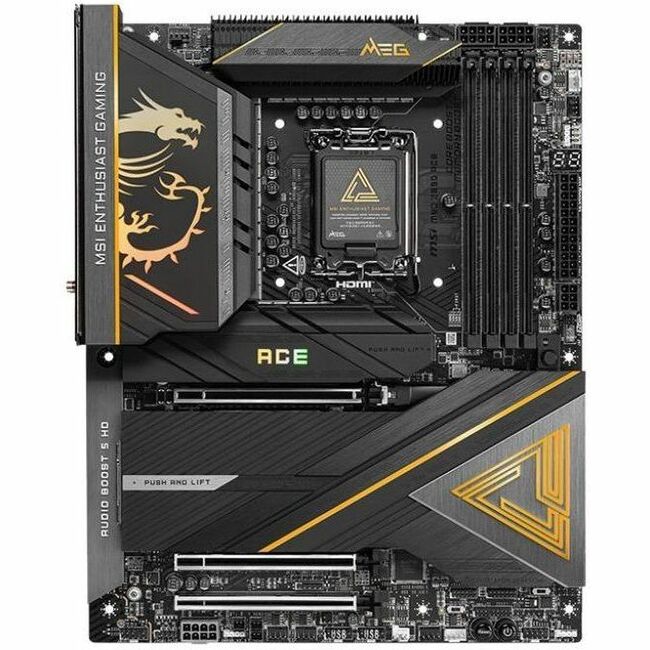

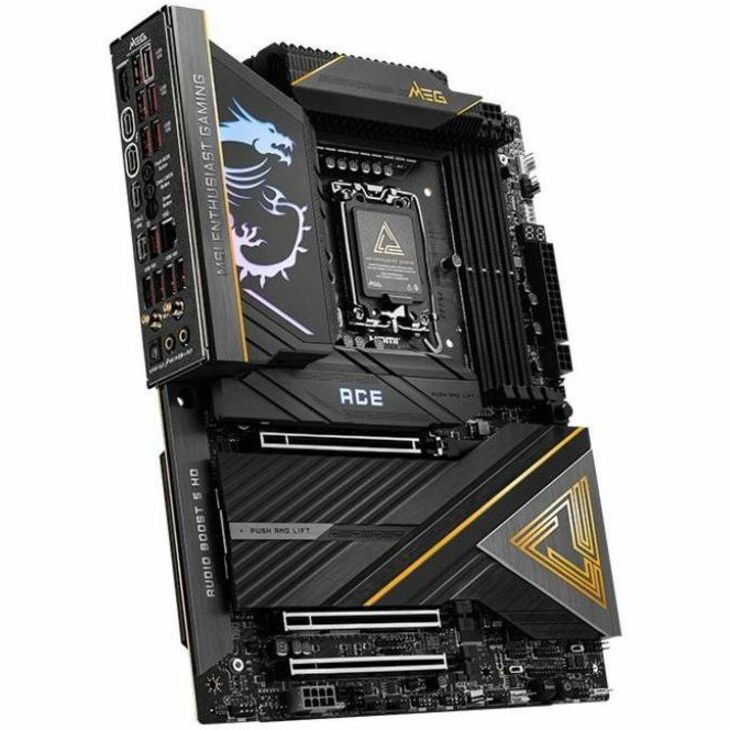

MSI Z890ACE MEG Z890 ACE ATX Motherboard LGA 1851 for Intel Core Ultra series

MPN: Z890ACE

Main Features

• Support Intel®Core™ Ultra Processors (Series 2) for LGA 1851 socket
• Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)

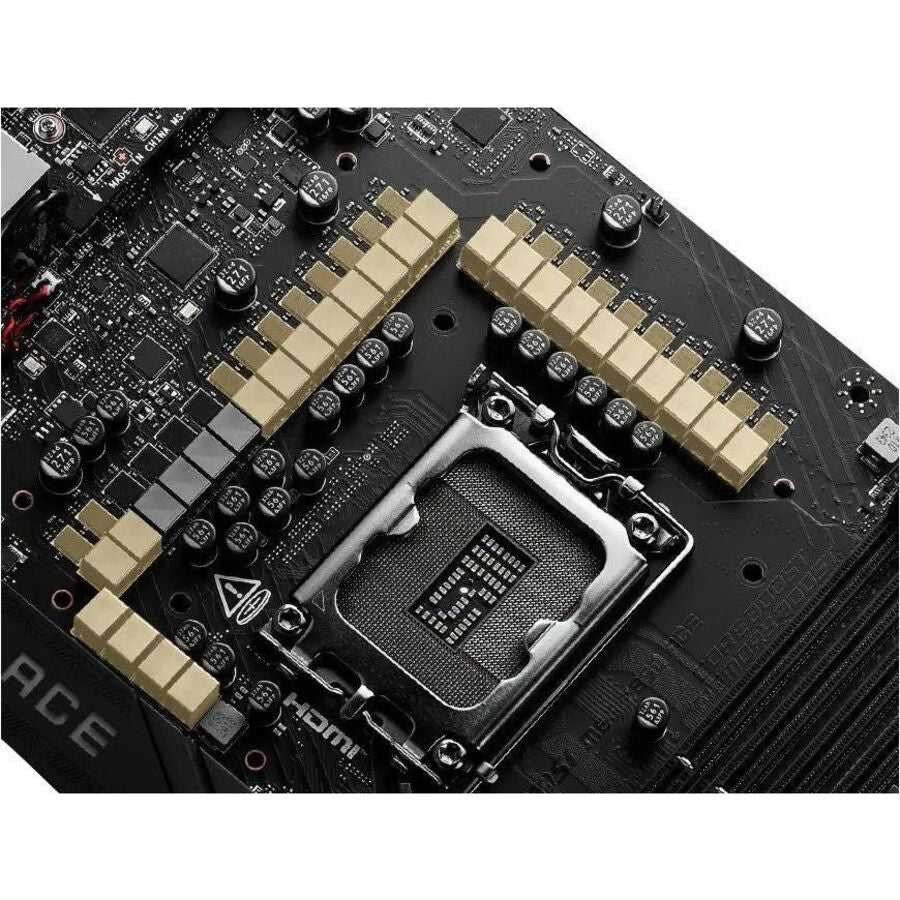

• Ultra Performance: 24+2+1+1 Duet Rail Power System, 110A SPS, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material.
• Frozr Guard: Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
• EZ DIY: EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna.
• Ultra Connect: Dual Thunderbolt™ 4 ports, 10G LAN, and Full-speed Intel®Killer™ Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
• Lightning Fast Game Experience: PCIe 5.0 slots, Onboard 5x M.2 Connectors with Lightning Gen 5 Solution, Front USB 20G with 60W USB Power Delivery.
• Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
• AI-powered: Yes
• Chipset Manufacturer: Intel
• Chipset Model: Z890
• Total Processor Supported: 1
• Processor Socket: Socket LGA-1851
• Processor Supported: Core Ultra
• Number of Memory Slots: 4
• Memory Form Factor:
• -DIMM
• -UDIMM
• Maximum Memory Supported: 256 GB
• Memory Technology: DDR5 SDRAM
• Memory Speed Supported:
• -9200 MHz
• -7200 MHz
• -6400 MHz
• -4800 MHz
• Controller Type: Serial ATA/600
• RAID Supported: Yes
• RAID Levels:
• -0
• -1
• -5
• -10
• Onboard Video: CPU Dependent Video
• Audio Channels: 7.1
• Bluetooth: Yes
• Bluetooth Standard: Bluetooth 5.4
• Gigabit Ethernet: Yes

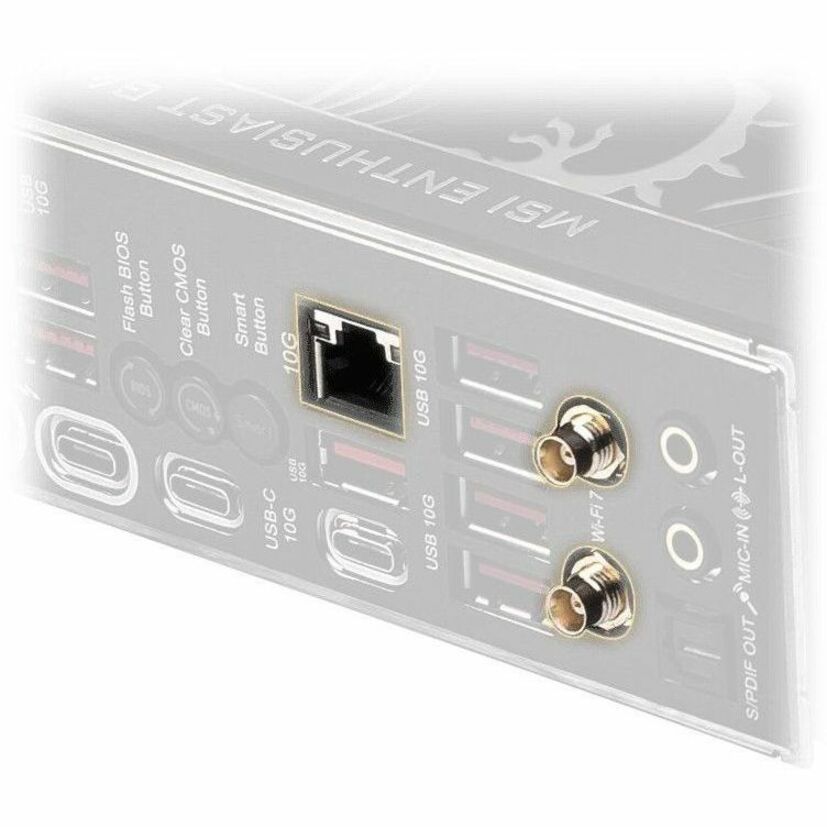

• 10Gigabit Ethernet: Yes
• Wireless LAN: Yes
• Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax/be
• PCI Express Standard:
• PCI Express 5.0
• PCI Express 4.0
• Total Number of PCI Express Slots: 3
• Number of PCI Express x16 Slots: 3

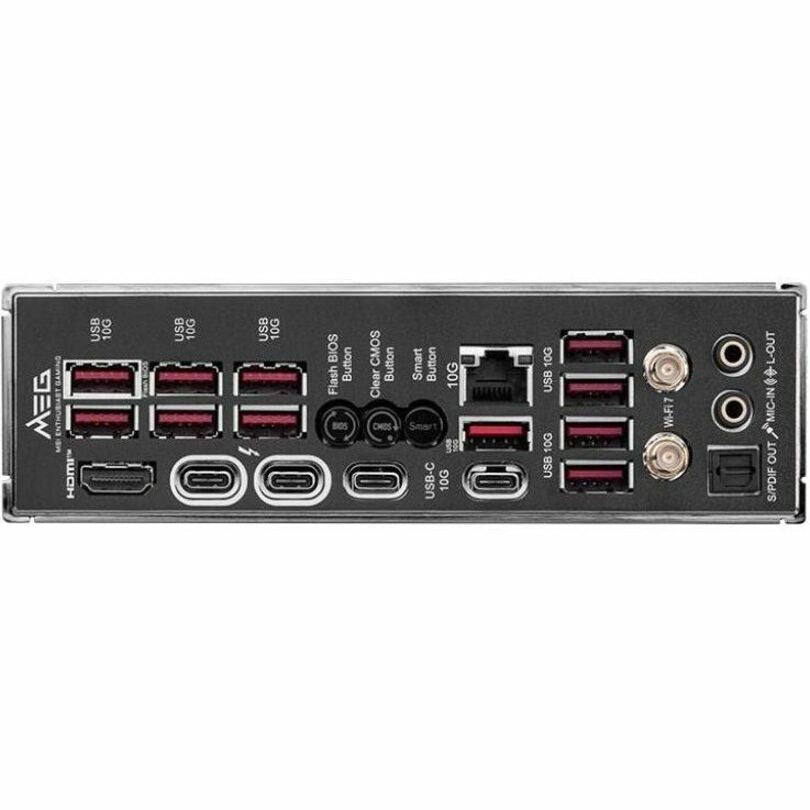

• Total Number of USB Ports: 13
• S/PDIF: Yes
• HDMI: Yes
• HDMI Version: 2.1
• DisplayPort: Yes
• Number of Network (RJ-45) Ports: 1
• Thunderbolt: Yes
• Number of Thunderbolt 4 Ports: 2
• Number of SATA Interfaces: 4
• Number of M.2 Interfaces: 5
• Total Number of Onboard USB Ports: 9
• Number of Onboard USB 2.0 Ports: 4
• Form Factor: ATX
• Width: 12"
• Depth: 9.6"

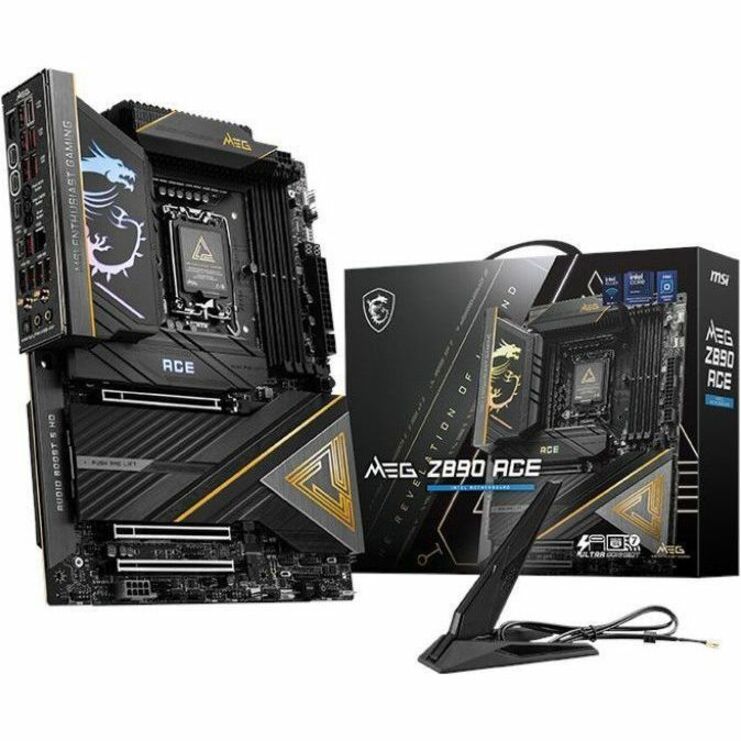

• Package Contents:
• -MEG Z890 ACE Gaming Desktop Motherboard
• -Quick Installation Guide
• -SATA Cable
• -Cable Stickers
• -Wi-FI Antenna
• Limited Warranty: 3 Year - Direct from the Manufacturer
• Additional Warranty Information: 3 Year Limited Warranty
