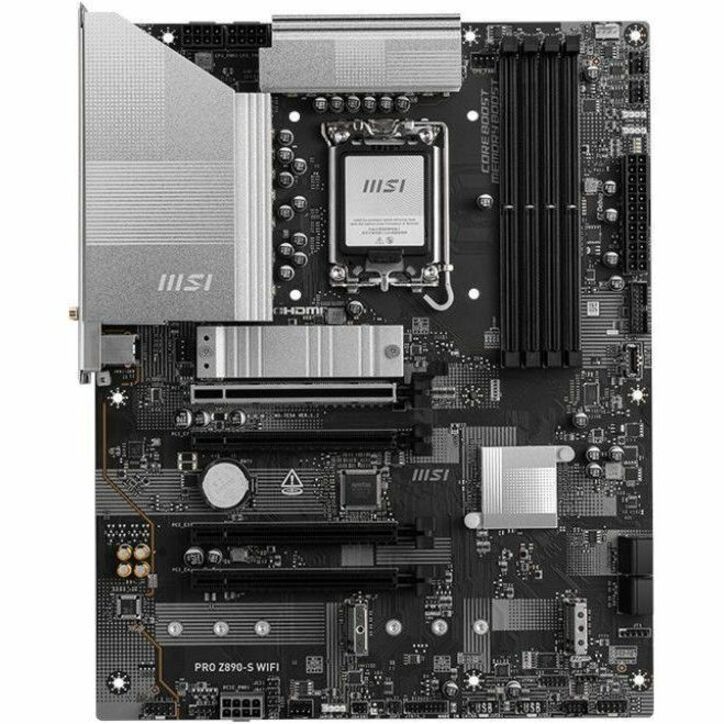

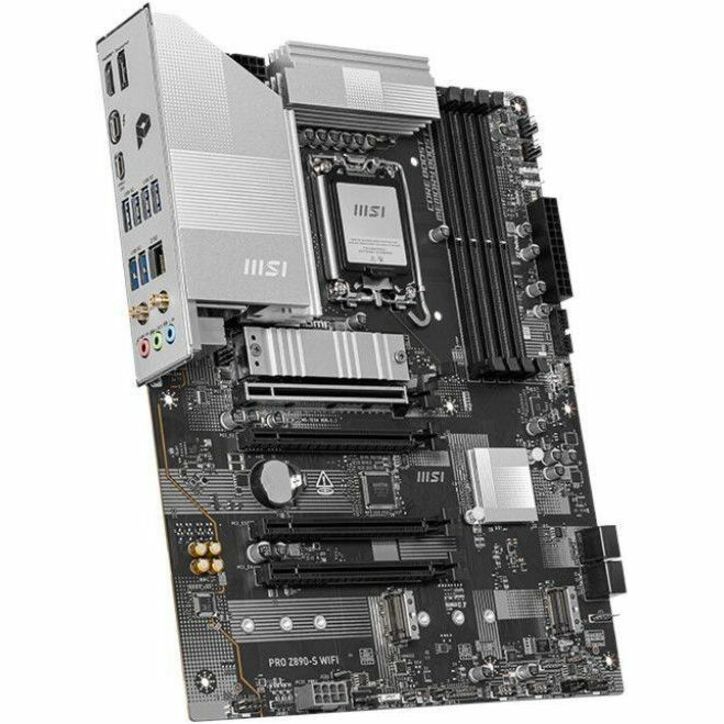

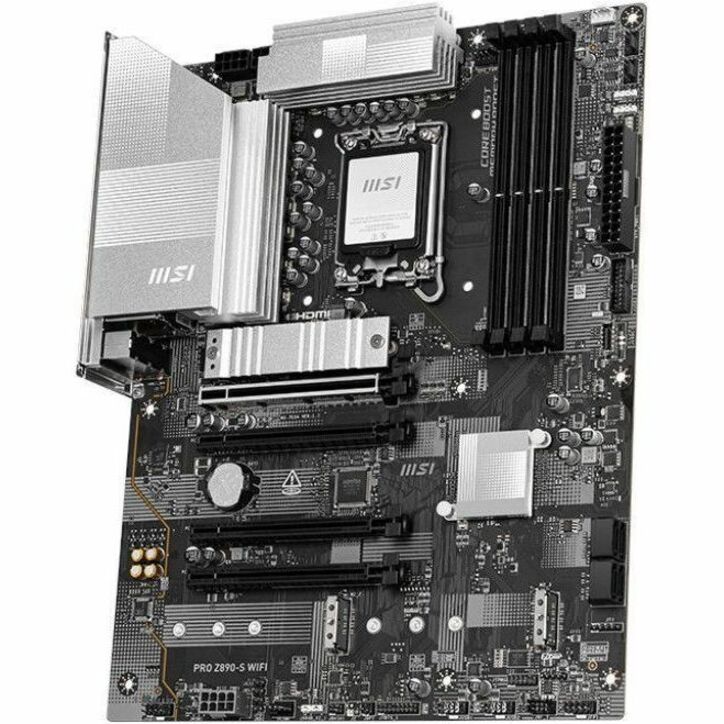

MSI Z890SWIFI PRO Z890-S WIFI ATX MOTHERBOARD -LGA 1851 for Intel Core Ultra CPU

MPN: Z890SWIFI

Main Features

• Support Intel®Core™ Ultra Processors (Series 2) for LGA 1851 socket
• Supports DDR5 Memory, Dual Channel DDR5 8600+ MT/s (OC)

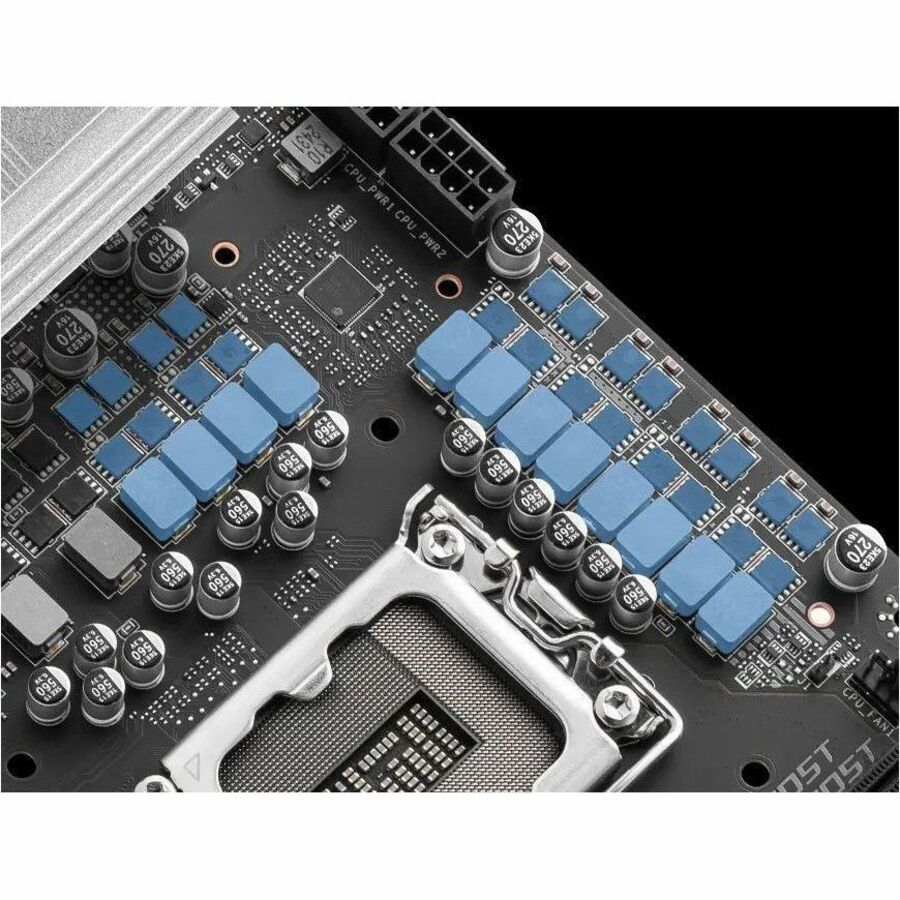

• Enhanced Power Design: 12+1+1+1 Duet Rail Power System with P-PAK , dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
• EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
• Thunderbolt™ 4: brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant

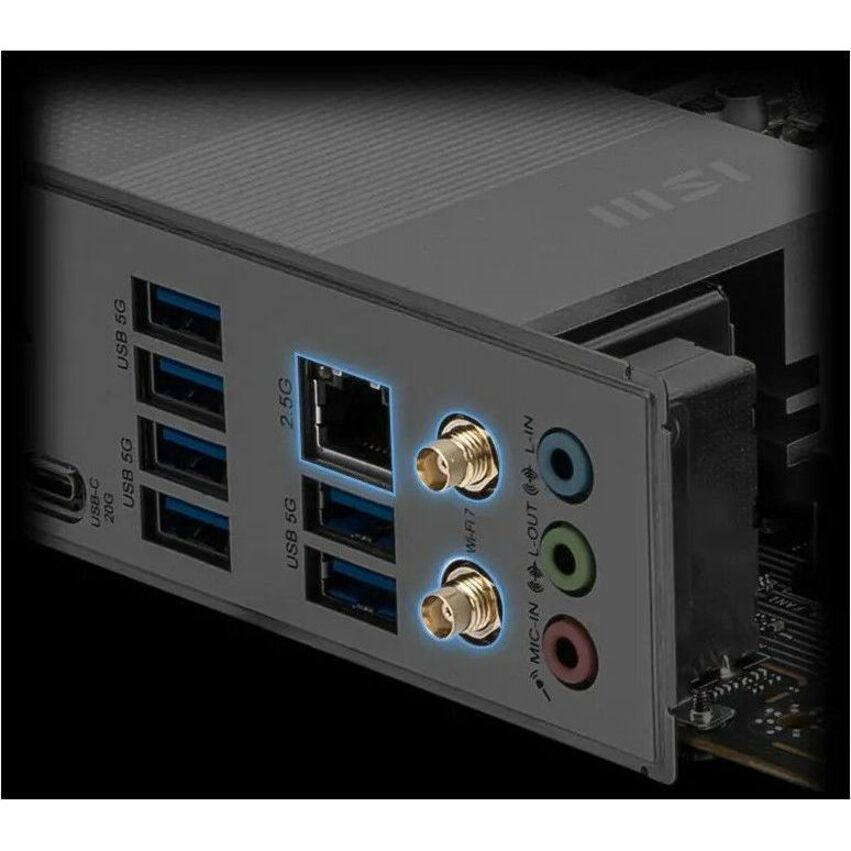

• 2.5G LAN with Intel Wi-Fi 7 Solution: upgraded network solution for professional and multimedia use, delivering secure, stable, and high-speed networking
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
• AI-powered: Yes
• Chipset Manufacturer: Intel
• Chipset Model: Z890
• Total Processor Supported: 1
• Processor Socket: Socket LGA-1851
• Processor Supported: Core Ultra
• Number of Memory Slots: 4
• Memory Form Factor:
• -DIMM
• -UDIMM
• Maximum Memory Supported: 256 GB
• Memory Technology: DDR5 SDRAM
• Memory Speed Supported:
• -8600 MHz
• -7200 MHz
• -6400 MHz
• -4800 MHz
• Controller Type: Serial ATA/600
• RAID Supported: Yes
• RAID Levels:
• -0
• -1
• -5
• -10
• Onboard Video: CPU Dependent Video
• Audio Channels: 7.1
• Bluetooth: Yes
• Bluetooth Standard: Bluetooth 5.4
• Gigabit Ethernet: Yes
• 2.5Gigabit Ethernet: Yes
• Wireless LAN: Yes
• Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax/be
• PCI Express Standard:
• -PCI Express 5.0
• -PCI Express 4.0
• -PCI Express 3.0
• Total Number of PCI Express Slots: 4
• Number of PCI Express x16 Slots: 4

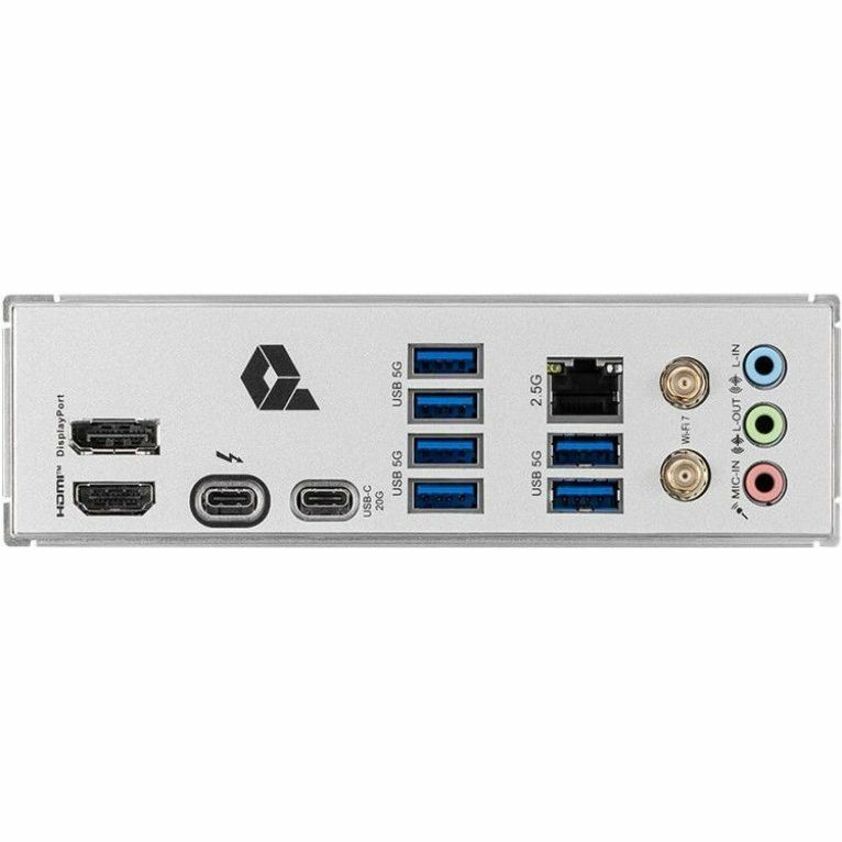

• Total Number of USB Ports: 7
• HDMI: Yes
• HDMI Version: 2.1
• DisplayPort: Yes
• Number of Network (RJ-45) Ports: 1
• Thunderbolt: Yes
• Number of Thunderbolt 4 Ports: 1
• Number of SATA Interfaces: 4
• Number of M.2 Interfaces: 3
• Total Number of Onboard USB Ports: 7
• Number of Onboard USB 2.0 Ports: 4
• Color Family: Silver
• Product Color: Silver
• Form Factor: ATX
• Width: 12"
• Depth: 9.6"

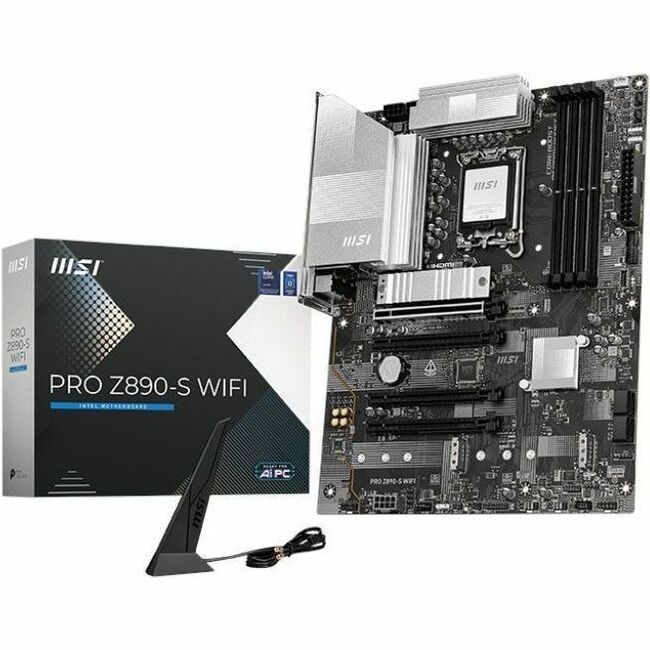

• Package Contents:
• -PRO Z890-S WIFI Gaming Desktop Motherboard
• -European Union Regulatory Notice
• -Quick Installation Guide
• -EZ M.2 Clip || Remover
• -3 x EZ M.2 Clip ||
• -EZ Wi-Fi Antenna
• -2 x SATA Cables
• Limited Warranty: 3 Year - Direct from the Manufacturer
• Additional Warranty Information:
• 3 Year Limited Warranty
